Revision A
12/18
CHANCE
Owner's Manual
NOTICE: To prevent SERIOUS INJURY and PROPERTY
DAMAGE thoroughly read, understand, and follow the
warnings and instructions in this manual. Keep the
instructions with the product for future reference.
Hubbell has a policy of continuous product improvement. Please visit hubbellpowersystems.com to confirm current design specifications.

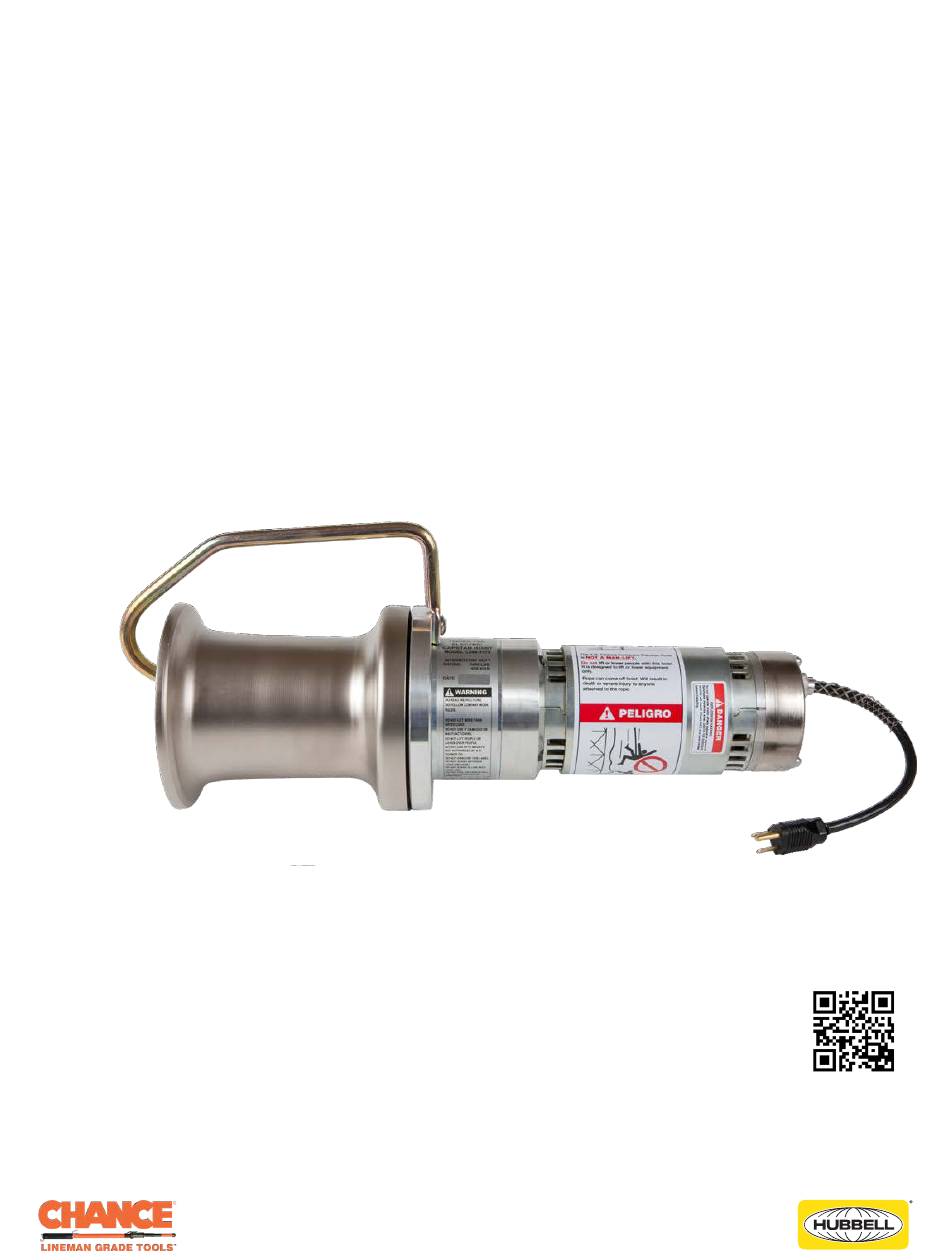

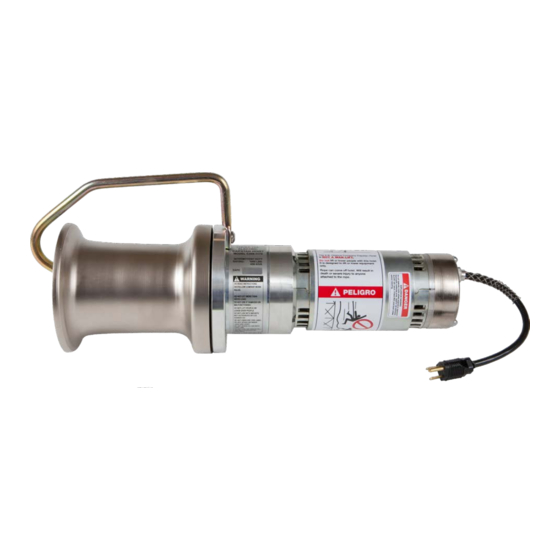

Series 90 Capstan Hoist
®
©2018 Hubbell Incorporated | hpsliterature@hubbell.com | hubbellpowersystems.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHANCE 90 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Hubbell CHANCE 90 Series

Summary of Contents for Hubbell CHANCE 90 Series

  • Page 1 DAMAGE thoroughly read, understand, and follow the warnings and instructions in this manual. Keep the instructions with the product for future reference. Hubbell has a policy of continuous product improvement. Please visit hubbellpowersystems.com to confirm current design specifications. ©2018 Hubbell Incorporated | hpsliterature@hubbell.com | hubbellpowersystems.com...

  • Page 2: Table Of Contents

    All information in this publication is based on the latest product information available at the time of printing. Hubbell Power Systems reserves the right to make changes at any time without notice and without incurring any obligation. This Owner’s Manual must always be kept with the hoist and should remain with the hoist if it is transferred or sold.

  • Page 3: Guide To Warnings Within Manual

    A CAUTION refers to operating procedures, techniques, etc., that, if not followed carefully could RESULT IN DAMAGE TO EQUIPMENT or LOSS OF SERVICE to customers. NOTICE A NOTICE refers to information that is considered important but not hazard related. ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...

  • Page 4: Product Safety

    Should additional information and details be desired or if situations arise which are not covered adequately for the user’s purpose, the specifics should be referred to Hubbell Power Systems. CAUTION Under extreme loading, when operating an electric hoist from a limited power source such as a truck driven generator, the hoist motor may stall before reaching maximum capability.
  • Page 5 • If any amount of hydraulic fluid penetrates the skin, get medical help IMMEDIATELY. b) Read and follow the guidance from the hydraulic system manufacturer related to the proper personal protective equipment required for that system. ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...

  • Page 6: Function And Design Overview

    Each rope hook is factory installed using a tamper- Rope Hook resistant fastener. WARNING Do not remove or modify the Rope Hook. ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...

  • Page 7: Rope Lock Device (Optional Accessory)

    To lower a load, the operator first pulls on the fall line, then pulls the cam open with the small lanyard. The cam must be held open for load lowering. ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...

  • Page 8: Capstan Rope Hook Information

    Do not try to lower the load until the rope has been correctly repositioned on the drum. Injury or death could result. ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...

  • Page 9: Capstan Hoist Major Components

    8. Engine Hydraulic Models 1. Rope Hook 2. Capstan Drum 3. Tamper Resistant Bolt 4. Stamped Manufacture Date Code 5. Safety & Identification Label 6. Motor 7. Couplers, S-372 3/8" ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...

  • Page 10: Before Hoisting

    ALWAYS choose a mounting location that is strong enough to withstand the maximum pulling capacity of your hoist. ALWAYS use with mounts, components, and accessories authorized by Hubbell Power Systems. ALWAYS use grade 5 mounting hardware. NEVER weld mounting bolts.
  • Page 11 Each operator should be properly trained by their employer regarding their policies and procedures for hoisting, including proper rigging procedures for the loads and to stop operation immediately and secure the load in the event of a safety related issue. ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...

  • Page 12: Mounting The Hoist

    "around" the mounting location. 5. Mount Hoist Only use an appropriate CHANCE® mounting bracket to mount hoist. Contact your Hubbell representative for more information. Always mount the hoist to the proper bracket using bolts and fasteners supplied with the bracket. If bolts or fasteners are damaged or missing, replace them with grade 5 hardware.
  • Page 13 The optional hitch mount with swivel base for 1,000 lb electric models allows the operator to properly align the load without repositioning the service vehicle. It also gives the operator line of sight and helps with communication with other personnel. ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...

  • Page 14: Operating The Hoist

    This provides a stable condition for the rope to feed smoothly over the capstan without jumping or changing position for both raising and lowering loads. Continued on next page. ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...
  • Page 15 Do not remove wraps of rope from the drum while supporting a load. Do not allow the rope to overwrap itself or to ride up over the end of the drum flange. ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions...
  • Page 16 Be sure to check and maintain your battery and battery cables according to manufacturer guidelines. Also, inspect the foot control and all connections to be certain they are clean and tight fitting. 5. Store all components in a protected, clean, dry area. ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...

  • Page 17: Common Hoist Applications

    The hoist also can be used to lower and raise conductors (de-energized and grounded) so that splices, patch rods, repair of damaged conductor sections, and other mid-span work can be performed on the ground. ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...

  • Page 18: Hoist Accessories

    Foot Control Switch for 115 V AC Electric Hoists C3080685 Foot Control for Hydraulic Hoist model C3081380 T3080997 Foot Control for Gas Hoists Contact your local Hubbell representative for pricing and availability on Capstan Hoist accessories. ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...

  • Page 19: Maintenance

    • Test the electric motor under a no-load condition to observe for excessive sparking, arcing, grinding, crackling, hitting or stalling. The hoist should run smoothly. ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...

  • Page 20: Authorized Repairs And Replacement Parts

    • Read, understand, and follow all labels and the instruction manuals. Authorized Repairs and Replacement Parts For Hubbell Power Systems authorized repair or load testing, please contact: M.W. Bevins Co. 9903 E. 54th St. Tulsa, OK 74146...

  • Page 21: Specifications

    Limitations: Do not use if damaged or malfunctioning. Keep safety labels clean and readable. The use of Power Inverters is not recommended. Use only with mounts authorized by Hubbell Power Systems. Electric models: use appropriate gage and length extension cord for the amperage rating.

  • Page 22: Ten Safety Recommendations

    Most companies have their own standardized hand signals that have been developed for this purpose. In some remote cases radio communication may be necessary. ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...
  • Page 23 800 lb. plus 80 lb. (10%) equals 880 lb. The same is true for a gin or sling used to support the block. ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...
  • Page 24 Be sure to retighten the chain binders after initial loading to compensate for “seating” of the chain and bracket into the pole. ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...
  • Page 25 Example: 4 wraps of rope = 1:44 ratio. That is, 1 lb. pull on fall line develops 44 lb. on load line. Therefore, 20 lb. of pull develops 880 lb. of lift. ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...
  • Page 26 If the load needs to be lowered, simply allow the rope to slip back around the drum slowly, allowing the operator to lower the load safely and in full control. ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...
  • Page 27 We test and rate our equipment using only our manufactured accessories. VERIFY THE POLE, TOWER, TRUCK OR OTHER MOUNTING STRUCTURE CAN WITHSTAND THE FORCES THE CAPSTAN WILL APPLY The integrity of the system is critical for safety. ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...

  • Page 28: Parts Breakdowns

    Decal and Literature Replacement Kit for C3081170 (not pictured) RMD-1170 Decal and Literature Replacement Kit for C3081171 (not pictured) RMD-1171 Decal and Literature Replacement Kit for T3081519 (not pictured) RMD-1519 ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...
  • Page 29 Hex Head Capscrew 3/8"-16 x 1.25" Grade 5 Zinc Plated P001-1161 Lock Washer 3/8" HC Plated P001-1195P001-1195 Grease (not pictured) C303-1234 1 can Decal and Literature Replacement Kit for C308-1172 (not pictured) RMD-1172 ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...
  • Page 30 C3081172 Wiring Diagram ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...
  • Page 31 Rope Hook Assembly (3000 lb) (includes item #22) RHA-3000# Electric Foot Switch Repair Kit RFS-ELEC Grease (not pictured) C303-1234 1 can Decal and Literature Replacement Kit for C3081370 (not pictured) RMD-1370 ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...
  • Page 32 Cover P308-0707 Retaining Ring P308-0709 Switch P308-0708 Switch modified for 12 Volt P308-0708a Nut, KEPS #6-32 PLT P001-1199 Screw, Pan MCH #6-32 X 1.5"SS P001-1488 Ring Terminal, 5/16" Stud Z-096 ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...
  • Page 33 Button-Head Socket Capscrew SS 3/8"-16 x 1" P308-1517 Rope Hook Assembly (1000 lb) (includes item #32) RHA-1000# Grease (not pictured) C303-1234 1 can Decal and Literature Replacement Kit for C308-1180 (not pictured) RMD-1180 ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...
  • Page 34 Button-Head Socket Capscrew SS 1/2-13x1" P308-1528 Rope Hook Assembly (3000 lb) (includes item #33) RHA-3000# Grease (not pictured) C303-1234 1 can Decal and Literature Replacement Kit for C3081380 (not pictured) RMD-1380 ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...
  • Page 35 Mounting Capscrew 1/2" x 1.25" Grade 5 Zinc Plated P001-1349 Lock Washer 1/2" HC Zinc Plated P001-1221 Grease (not pictured) C303-1234 Decal and Literature Replacement Kit for C3080900 (not pictured) RMD-0900 ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...
  • Page 36 Throttle Cable Assembly P308-0990 Grease (not pictured) C303-1234 1 can Gas Foot Control Assembly (includes items 31 - 42) T308-0997 Decal and Literature Replacement Kit for C3081190 (not pictured) RMD-1190 ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...
  • Page 37 Throttle Cable Assembly P308-0990 Grease (not pictured) C303-1234 1 can Gas Foot Control Assembly (includes items 32 - 43) T308-0997 Decal and Literature Replacement Kit for C3081390 (not pictured) RMD-1390 ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...
  • Page 38 Notes ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...
  • Page 39 Notes ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ©2018 Hubbell Incorporated | Chance Capstan Hoist Operating Instructions ®...
  • Page 40 Hubbell Power Systems, Inc. 210 N. Allen St Centralia, MO 65240 www.hubbellpowersystems.com Hubbell has a policy of continuous product improvement. Please visit hubbellpowersystems.com to confirm current design specifications. PSP3081570 TD_09_193_E Rev A. ©2018 Hubbell Incorporated | hpsliterature@hubbell.com | hubbellpowersystems.com...
