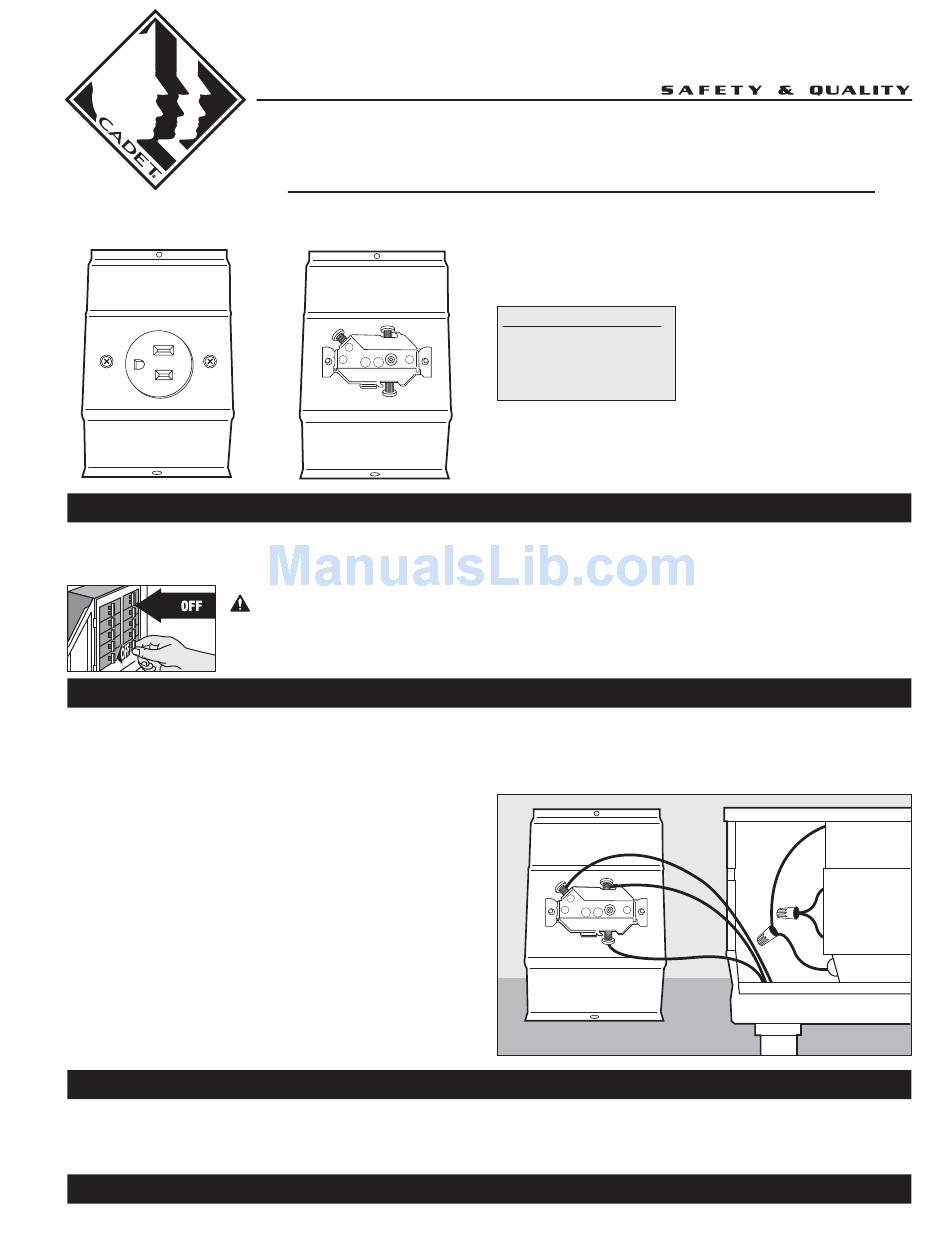

Cadet BRF12 Installation Instructions

(Front)
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to
persons, including the following:
Read all instructions before using this heater and receptacle.
Turn the electrical power off at the electrical panel board (circuit breaker or fuse box) and lock or tag the
panel board door to prevent someone from turning on power while you are working on the heater. Failure to
do so could result in serious electrical shock, burns, or possible death.
STEP 1
Remove one of the wiring compartment covers at either end of
the baseboard heater. Note: if the heater has a built-in thermostat,
use wiring compartment at opposite end.
STEP 2
Remove the slotted knockout closest to the supply wires and install
a strain relief connector. (DO NOT CONNECT TO HEATER WIRES.)
STEP 3
Pull supply wires through the connector and secure, leaving 6 inch
wire leads. Remove ¾ inch of the insulation from the conductors.
STEP 4
Wrap ground (bare wire) securely around the green terminal screw.
Tighten terminal screw securely, 9-12 pound·inch (1.0-1.4 N·m)
of torque. (See Figure 1)
STEP 5
Wrap neutral (white wire) securely around the silver terminal screw.
Tighten terminal screw securely, 9-12 pound·inch (1.0-1.4 N·m)
of torque. (See Figure 1)
STEP 6
Wrap hot (black wire) securely around the brass terminal screw.
Tighten terminal screw securely, 9-12 pound·inch (1.0-1.4 N·m) of
torque. (See Figure 1)
LIMITED ONE-YEAR WARRANTY: Cadet will repair or replace any Cadet
product, including thermostats, found to be defective within one year after
the date of purchase.
www.cadetco.com
BRF12 Baseboard Heater
120V Receptacle
Installation Instructions
(Back)
IMPORTANT INSTRUCTIONS
WARNING
INSTALLATION INSTRUCTIONS
WARRANTY
SAVE THESE INSTRUCTIONS
Tel: 360-693-2505
Since an electrical outlet may not be installed above a heater
(National Electric Code), you may use a Cadet BRF12 outlet in either
end of the Cadet Electric Baseboard to meet local building codes.
TOOLS REQUIRED
#2 Phillips Screwdriver
•
Straight Screwdriver
•
(1) Strain Relief Connector
•
Wire Strippers
•
Read all instructions and safety information.
All electrical work and materials must comply with the National
Electric Code (NEC), the Occupational Safety and Health Act (OSHA),
and all state and local codes.
STEP 7
Carefully tuck all wires into wiring compartment and attach receptacle
to the baseboard heater.
STEP 8
Turn the power on at the circuit breaker or fuse box.
SILVER SCREW
GREEN
SCREW
BRASS
SCREW
Figure 1
If you believe your Cadet product is defective, please contact Cadet
Manufacturing Co. at 360-693-2505, during the warranty period, for
instructions on how to have the repair or replacement processed. Warranty
claims made after the warranty period has expired will be denied. Products
returned without authorization will be refused.
P.O. Box 1675 Vancouver, WA
©2009 Cadet Manufacturing Co.
Note: A separate 120V circuit and
wiring is required for this product.
DO NOT connect to heater wiring.
Caution: Use copper conductors;
14AWG to 10AWG
CONNECT
GROUND
(BARE WIRE)
CONNECT
NEUTRAL
(WHITE WIRE)
CONNECT HOT
(BLACK WIRE)
(Separate 120V Supply)
98668-1675
Printed in U.S.A. Rev. 01/11 #720043
