Cadet Com-Pak CS051 Owner's Manual
Hide thumbs
Also See for Com-Pak CS051:
- Replacement instructions (3 pages) ,
- Owner's manual (10 pages)
Advertisement
Available languages
Available languages
Benefits You Can Depend On
• DUAL SAFETY FEATURES
Primary: "power reset" thermal switch
Secondary: over temperature thermal fuse
• Heating element style quickly warms your room,
and quickly cools when heater is not in use
• Common sense components designed with you
in mind
1. NO sharp edges
2. Corrosion resistant
3. Easy to install heater, one screw
4. Easy to install wall can
• Your Cadet heater has been thoroughly tested
and is guaranteed with a 2 year extended
warranty
Side
Grill Front
1"
9"
2.54
22.86
Wall Can Bottom
7
7
/
"
8
20.00
3"
7.62
1¾"
4.45
Side
Grill Front
1"
16¼"
2.54
41.27
Wall Can Bottom
14½"
36.83
4"
10.16
TOOLS REQUIRED:
• Phillips Screwdriver
• Straight Screwdriver
• Wire Strippers
cadetheat.com
Wall Can Side
10"
12"
11
1
/
"
8
25.4
30.48
28.26
3¼"
8.26
1¼"
3.18
Com-Pak
4"
10.16
1¼"
3.18
Wall Can Side
12"
10"
11
/
"
1
8
30.48
25.4
28.26
Com-Pak Twin
3"
7.62
7
/
"
8
2.22
• Utility Knife
• (4) 1 1/2" Wood Screws
• Insulated Wire Connectors
• (1) Strain Relief Connector
SAVE THESE INSTRUCTIONS
Tel: 360-693-2505

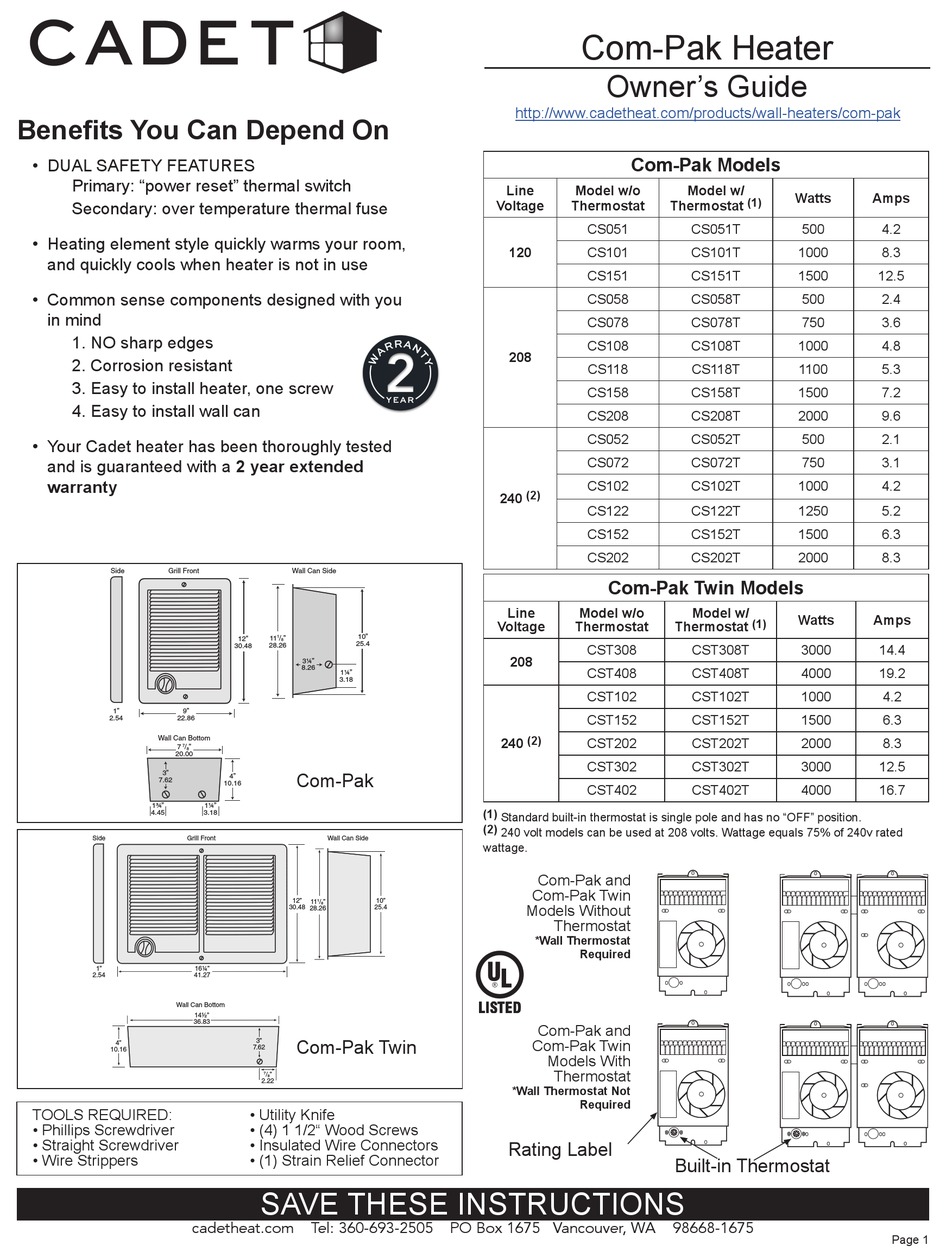

Com-Pak Heater
Owner's Guide
http://www.cadetheat.com/products/wall-heaters/com-pak
Line
Model w/o
Voltage
Thermostat
CS051
120
CS101
CS151
CS058
CS078
CS108
208
CS118
CS158
CS208
CS052
CS072
CS102
(2)
240
CS122
CS152
CS202
Com-Pak Twin Models
Line
Model w/o
Voltage
Thermostat
CST308
208
CST408
CST102
CST152
(2)
240
CST202
CST302
CST402
(1) Standard built-in thermostat is single pole and has no "OFF" position.
(2) 240 volt models can be used at 208 volts. Wattage equals 75% of 240v rated
wattage.
Com-Pak and
Com-Pak Twin
Models Without
Thermostat
*Wall Thermostat
Required
Com-Pak and
Com-Pak Twin
Models With
Thermostat
*Wall Thermostat Not
Required
Rating Label
PO Box 1675 Vancouver, WA
Com-Pak Models
Model w/
Watts
(1)
Thermostat
CS051T
500
CS101T
1000
CS151T
1500
CS058T
500
CS078T
750
CS108T
1000
CS118T
1100
CS158T
1500
CS208T
2000
CS052T
500
CS072T
750
CS102T
1000
CS122T
1250
CS152T
1500
CS202T
2000
Model w/
Watts
(1)
Thermostat
CST308T
3000
CST408T
4000
CST102T
1000
CST152T
1500
CST202T
2000
CST302T
3000
CST402T
4000
Built-in Thermostat
98668-1675
Amps
4.2
8.3
12.5
2.4
3.6
4.8
5.3
7.2
9.6
2.1
3.1
4.2
5.2
6.3
8.3
Amps
14.4
19.2
4.2
6.3
8.3
12.5
16.7
Page 1
Advertisement
Table of Contents
Related Manuals for Cadet Com-Pak CS051
Summary of Contents for Cadet Com-Pak CS051
- Page 1 3. Easy to install heater, one screw CS158 CS158T 1500 4. Easy to install wall can CS208 CS208T 2000 CS052 CS052T • Your Cadet heater has been thoroughly tested CS072 CS072T and is guaranteed with a 2 year extended warranty CS102 CS102T 1000 CS122 CS122T...
-
Page 2: Important Instructions
IMPORTANT INSTRUCTIONS WARNING When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. Read all instructions before installing or using WARNING this heater. Risk of Electrical Shock. Do not insert or allow foreign objects to enter any ventilation or exhaust WARNING opening as this may cause an electric shock or... -
Page 3: Installation Instructions
4. The Com-Pak Twin (Model CST) must be installed with the arrows in the wall can pointing upwards. THERMOSTAT: A wall thermostat is required for models without a built-in thermostat. A Cadet electronic thermostat is recommended for ultimate control and comfort. - Page 4 3. Models with a built-in thermostat are not recommended. REQUIRED MINIMUM distance of 6 inches from adjacent surfaces (See Figure 6). However, Cadet RECOMMENDS 12 inches from adjacent surfaces for longer and cleaner performance. Secure the wall can to studs/rafters on opposite sides (See Fig- ures 6 and 7) with 4 screws (not provided).
-
Page 5: Warranty
8. These warranties give you specific legal rights, and you may any Com-Pak (CS), Com-Pak Twin (CST) heater found to be also have other rights which vary from state to state. Cadet nei- defective within two years after the date of purchase. -
Page 6: Maintaining Your Heater
6. Defective thermostat. 6. The entire heater, or any of its components may be checked for continuity to determine the cause of any problems. Repair or replace the heater or thermo- stat. Page 6 ©2014 Cadet Printed in USA Rev 07/14 #730021... - Page 7 CS052T con un solo tornillo CS072 CS072T 4. Cámara de pared fácil de instalar CS102 CS102T 1000 • Su calentador Cadet ha sido completamente CS122 CS122T 1250 probado y cuenta con una garantía extendida de CS152 CS152T 1500 2 años...
-
Page 8: Instrucciones Importantes
INSTRUCCIONES IMPORTANTES ADVERTENCIA Al utilizar artefactos eléctricos, siempre se deben adoptar precauciones básicas para reducir el riesgo de incendios, electrocución y lesiones personales, incluyendo lo siguiente: ADVERTENCIA 1. Lea todas las instrucciones antes de instalar o usar este calentador. Riesgo de electrocución. No introduzca ni permita que ingresen objetos en las aberturas ADVERTENCIA de la ventilación o escape, ya que ello puede... -
Page 9: Instrucciones Para La Instalación
TERMOSTATO: Se requiere un termostato mural para los modelos que no lo traigan incorporado. Se recomienda usar un termostato electrónico Cadet para una comodidad y un control óptimos. ¿Cómo se instala el calentador en paredes de ¿Cómo se instala el calentador en una pared existente? - Page 10 3. No se recomienda usar modelos con termostato incorporado. La distancia MÍNIMA REQUERIDA es de 6 pulgadas desde las superficies adyacentes (consulte la figura 6). Sin embargo, Cadet RECOMIENDA 12 pulgadas desde las superficies adyacentes para lograr un rendimiento más prolongado y limpio.
- Page 11 8. Estas garantías le otorgan derechos legales específicos y es posible todo calentador Com-Pak (CS) o Com-Pak Twin (CST) que se determine que usted tenga otros derechos que varíen de un estado a otro. Cadet esté averiado en un plazo de dos años a partir de la fecha de compra.
- Page 12 6. Se debe revisar la continuidad de todo el calentador, o bien de sus componentes a fin de deter- minar la causa de los problemas. Repare o reemplace el calentador o termostato. Página 12 ©2014 Cadet Impreso en EE UU Rev 07/14...
