Cadet The Com-Pak Plus Owner's Manual

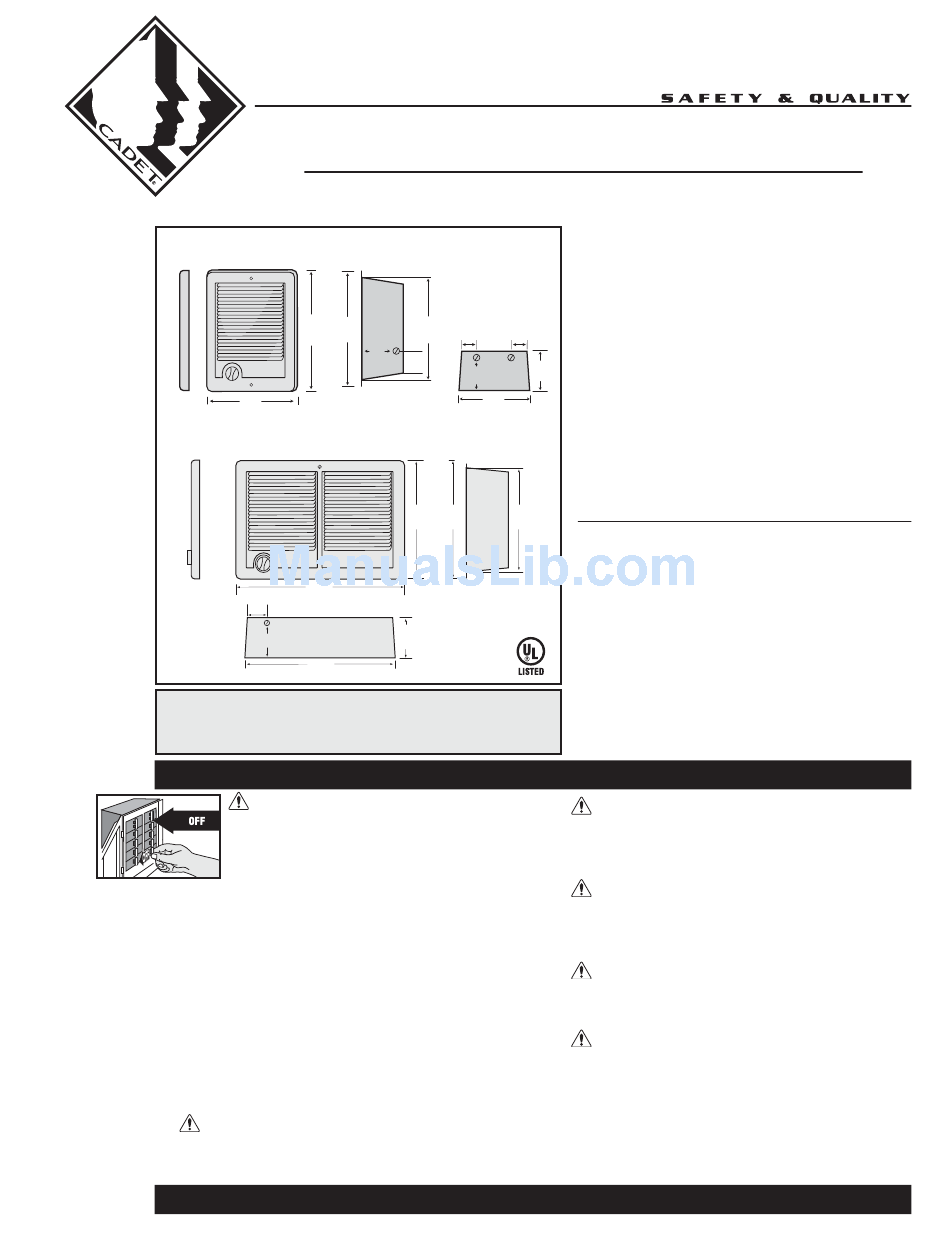

The Com-Pak Plus
The Com-Pak Plus
Side Grill Front
12"
30.48
1" 9"
2.54 22.86
The Com-Pak Twin Plus
Side Grill Front
1" 16 1 / "
4
2.54 41.27
"
7 /
4
2.22
3"
7.62
14 1 / "
2
36.83
TOOLS REQUIRED:
Phillips Screwdriver
Straight Screwdriver
Wire Strippers
WARNING
Turn the electrical power off at the electrical
panel board (circuit breaker or fuse box) and
lock or tag the panel board door to prevent
someone from turning on power while you are
working on the heater. Failure to do so could
result in serious electrical shock, burns, or
possible death.
1. Read all instructions before using this heater.
2. Read all information labels. Verify that the electrical supply
wires are the same voltage as the heater.
3. All electrical work and materials must comply with the
National Electric Code (NEC), the Occupational Safety and
Health Act (OSHA), and all state and local codes.
4. Connect the grounding pigtail (copper wire) provided in the
wall can to the supply ground wire.
5. If you need to install a new circuit or need additional wiring
information, consult a qualified electrician.
6. Protect electrical supply from kinks, sharp objects, oil,
grease, hot surfaces or chemicals.
7. WARNING
Overheating or fire may occur. DO NOT install the heater in
a floor, behind doors, or outdoors.
www.cadetco.com
MODEL CS OWNER'S GUIDE
Wall Can Side
Wall Can Bottom
11½" 10"
1 ¾ " 1 ¼ "
29.21 25.4 4.45 3.18
3¼"
8.26 1¼"
3.18
3"
7,62
7 "
7 /
8
20.00
Wall Can Side
10"
12" 11 "
1 /
8
25.4
30.48 28.26
Wall Can
4"
10.16
Bottom
Utility Knife
4 1 / " Wood Screws
1
2
3 Insulated Wire Connectors
1 Strain Relief Connector
IMPORTANT INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Tel: 360-693-2505
Features & Benefits
NEW Primary and secondary thermal safeguards
Robust, heavy duty high temperature manual
•
power reset
Over temperature one-time thermal fuse
•
Nichrome element wrapped around mica
•
insulators for durability
4"
10.16
Powder coat paint process eliminates sharp
•
cutting edges
Two year extended warranty
•
Wall can designed for ease of installation
•
Factory tested
•
MODELS
The Com-Pak Plus (Model CS)
CS051 *CS051T
CS052 *CS052T
CS072 *CS072T
CS102 *CS102T
CS122 *CS122T
The Com-Pak Twin Plus (Model CS)
CST252 *CST252T
CST302 *CST302T
CST402 *CST402T
CST408 *CST408T
*Standard built-in thermostat is single pole and has
no "OFF" position
8. WARNING
Fire or explosion may occur. Heater has hot and arcing or
sparking parts inside. Do not install heater in any area
where combustible vapors, gases, liquids, or excessive lint
or dust are present.
9. WARNING
Burn Hazard. This heater is hot when in use. To avoid burns,
do not let bare skin touch hot surfaces. Use extreme caution
when any heater is used by or near children or invalids and
whenever the heater is left operating unattended.
10. WARNING
Risk of Electrical Shock. Keep all foreign objects out of
heater. Do not operate after heater malfunctions or has
been dropped or damaged in any manner.
11. WARNING
Risk of Fire. Do not block heater. Heater must be kept clear
of all obstructions: a minimum of 3 feet in front, 6 inches
above and on both sides. Heaters must be kept clean of
excessive lint, dirt and debris. (See Maintenance Instructions).
12. Use this heater only as described in this manual. Any other
use not recommended by the manufacturer may cause fire,
electrical shock, or injury to persons.
P.O. Box 1675 Vancouver, WA
CS152 *CS152T
CS202 *CS202T
CS208 *CS208T
CS101 *CS101T
CS151 *CS151T
CST102
CST152
98668-1675
