Mastervolt Mac Plus 2/12-50 User And Installation Manual

Dc-dc charger
Hide thumbs
Table of Contents

Advertisement

Quick Links

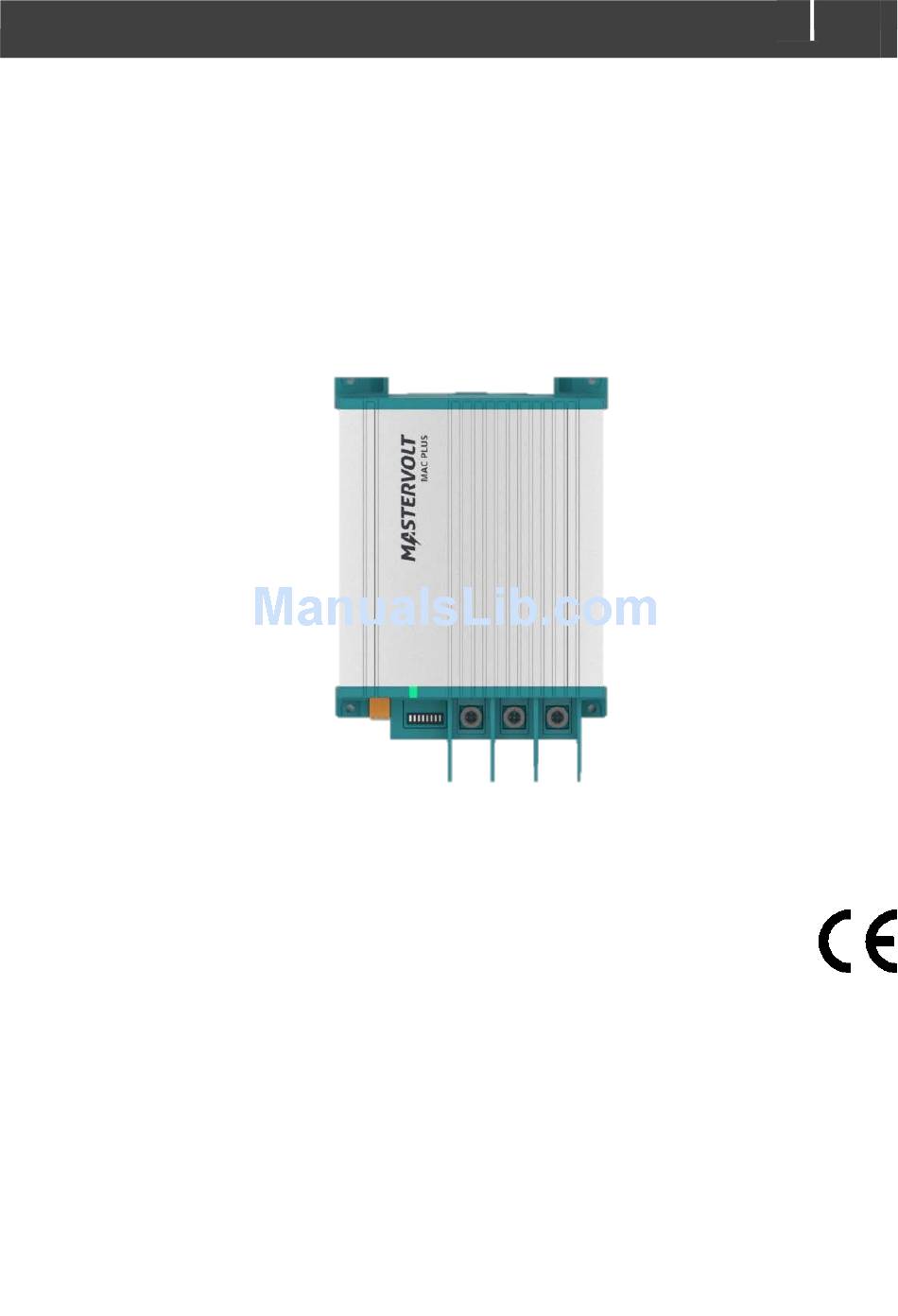

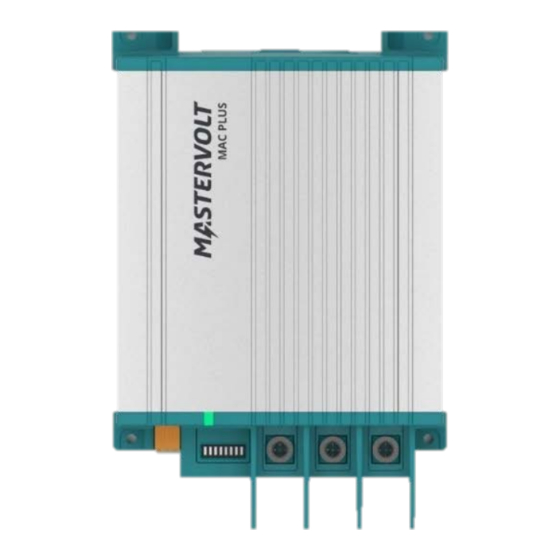

Mac Plus
DC-DC CHARGER
12/12-50, 12/24-30, 24/12-50, 24/24-30
EN
USER AND INSTALLATION MANUAL
NL
GEBRUIKERS- EN INSTALLATIEHANDLEIDING
DE
BEDIENUNGS- UND
INSTALLATIONSANLEITUNG
FR
MANUEL UTILISATEURS ET D'INSTALLATION
IT
MANUALE DI USO E MANUTENZIONE
ES
MANUAL DEL USUARIO Y DE INSTALACIÓN
10000013205/02
MAC-PLUS
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mac Plus 2/12-50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mastervolt Mac Plus 2/12-50

Summary of Contents for Mastervolt Mac Plus 2/12-50

  • Page 1 MAC-PLUS Mac Plus DC-DC CHARGER 12/12-50, 12/24-30, 24/12-50, 24/24-30 USER AND INSTALLATION MANUAL GEBRUIKERS- EN INSTALLATIEHANDLEIDING BEDIENUNGS- UND INSTALLATIONSANLEITUNG MANUEL UTILISATEURS ET D’INSTALLATION MANUALE DI USO E MANUTENZIONE MANUAL DEL USUARIO Y DE INSTALACIÓN 10000013205/02...
  • Page 2 MAC-PLUS...

  • Page 3: Table Of Contents

    MAC-PLUS Table of Content INTRODUCTION ......................4 SAFETY INSTRUCTIONS ....................4 PRODUCT DESCRIPTION .................... 7 DIMENSIONS ......................8 FRONT PANEL ......................9 IDENTIFICATION LABEL .................... 10 INSTALLATION INSTRUCTIONS................. 11 PLACEMENT AND MOUNTING ................. 12 CONNECTION ......................12 CONFIGURATION ..................... 15 OPERATION ......................

  • Page 4: Introduction

    Do not install the Mac Plus in a poorly ventilated room, this may result in overheating. Use of an attachment or spare part not recommended or sold by Mastervolt may result in a risk of fire, electric shock, or injury to persons.
  • Page 5 MAC-PLUS least once a year. Do not use the Mac Plus when the wiring is undersized or damaged and replace the wiring immediately. Do not operate Mac Plus if it has received a sharp blow, been dropped, or otherwise damaged in any way;...
  • Page 6 A battery can produce a short-circuit current high enough to weld a ring or the like to metal, causing a severe burn. Only use Mac Plus for charging a LEAD-ACID or Mastervolt Li-Ion batteries and the supply of users attached to these batteries, in permanent systems. Do not use Mac Plus for charging dry- cell batteries that are commonly used with home appliances.

  • Page 7: Product Description

    Guarantee specifications The correct functioning of this product is subject to warranty. The period and conditions of this warranty are laid down in Mastervolt Warranty Terms and Conditions and can be downloaded from www.mastervolt.com/support. For making an appeal on warranty you can contact your supplier directly, stating your complaint, application, date of purchase and part number / serial number.

  • Page 8: Dimensions

    MAC-PLUS 4. Dimensions 165 mm 146 mm 198 mm 255 mm 66 mm...

  • Page 9: Front Panel

    MAC-PLUS 5. Front panel Front panel Status LED + Output Ground + Input MasterBus (2x) DIP switch Accessories connector Pin 1 : + battery voltage sense input Pin 2 : - battery voltage sense input Pin 3 : not used Pin 4 : remote switch input Pin 5-6 : battery temperature sensor input...

  • Page 10: Identification Label

    MAC-PLUS 6. Identification label Identification label...

  • Page 11: Installation Instructions

    MAC-PLUS 7. Installation instructions Installation steps: Place and mount the Mac Plus Connect the Mac Plus Configure the Mac Plus These three steps are described in this chapter. WARNING! Read the entire manual before installing the Mac Plus. Keep the manual at a safe location for future reference.

  • Page 12: Placement And Mounting

    MAC-PLUS 8. Placement and mounting Mount the Mac Plus with four screws to a solid flat surface. 9. Connection • Mac Plus as a battery charger, see installation drawing A. • Mac Plus as a stabilized DC power supply, see installation drawing B.
  • Page 13 MAC-PLUS Installation drawing A Installation drawing B...
  • Page 14 The remote switch input configuration can be done by DIP switch (see chapter 10) or by MasterBus (see chapter 14 and 15). Battery temperature sensor (included) By installing the Mastervolt temperature sensor, the charge voltages are automatically adapted for deviating temperatures. Figure 1.

  • Page 15: Configuration

    MAC-PLUS 10. Configuration The Mac Plus settings can be adjusted in two ways: • By means of DIP switches; • Via the MasterBus network (by means of a remote control panel or an interface connected to a PC with MasterAdjust software); see chapter 14 and 15. Once a DIP switch has been set to On, the related setting cannot be configured via MasterBus.
  • Page 16 MAC-PLUS Always on When the battery charger must be (Remote switch input always active not used) Remote switch input Enable the battery ‘active low’ charger by external operating signal Remote switch input Enable the battery ‘active high’ charger by external operating signal Remote switch input Recommended...
  • Page 17 MAC-PLUS Battery* MasterBus settings apply. See chapter 14 and 15. Default factory setting: Flooded battery Flooded battery Bulk/Abs/Float: 14.25/14.25/13.25 V** 28.50/28.50/26.50 V*** Bulk/Abs/Float: 14.25/14.25/13.80 V** 28.50/28.50/27.60 V*** Bulk/Abs/Float: 14.25/14.25/13.80 V** 28.50/28.50/27.60 V*** Spiral Bulk/Abs/Float: 14.25/14.25/13.80 V** 28.50/28.50/27.60 V*** Traction Bulk/Abs/Float: 14.55/14.55/13.25 V** 29.10/29.10/26.50 V*** NiCad Bulk/Abs/Float: 14.50/14.50/14.50 V**...

  • Page 18: Operation

    MAC-PLUS Figure 2. Typical charge characteristic (at 25°C / 77°F). For a 24 V battery charger, multiply the voltages by two. 11. Operation Battery charger operation modes Mode Explanation The Mac Plus is in charging mode if it meets the switch-on Charging conditions (see dipswich/ MasterBus settings) The Mac Plus goes to standby when is does not meet the...

  • Page 19: Trouble Shooting

    MAC-PLUS LED indicator Use the following table to understand the meaning of the LED signals. LED color LED indication Meaning What to do? Green Charging Normal operation Solid Green Software Normal operation update Slow blinking Blue Standby Normal operation Solid Red-Blue Sleep Normal operation...
  • Page 20 MAC-PLUS Malfunction Possible cause What to do High ambient Nothing; if ambient temperature is more temperature than the setting limit, the charge current is automatically reduced. Charge current too low See “Charge current too low” in this table. Batteries not fully charged Current to load is too Reduce load taken from the batteries.

  • Page 21: Technical Specifications

    (25%) charge current at low (<9 V / <18 V) battery voltage Flat battery charge Protection against overload yes, internally fused, non replaceable Reverse polarity detection Mastervolt 3-Step algorithm Charge characteristic Flooded, Li-Ion, Gel, AGM, Spiral, Traction Battery types NiCad, Constant voltage, User defined...
  • Page 22 MAC-PLUS General specifications Galvanic insulation > 95% at full output Efficiency Protection against over-temperature 2 kg Weight 255x165x66 mm (10.0x6.5x5.6 inch) Dimensions, hxwxd Natural cooling Cooling IP23 IP rating M8 screw terminal, wire size 10-50 mm Connection in- and output MasterBus Yes (not powering) Battery temperature...
  • Page 23 MAC-PLUS Bulk voltage 14.25/28.50 V Max bulk time 480 min Min bulk time 120 s Start bulk time 13.25/26.50 V Bulk ret. volt. 12.80/25.60 V Bulk return time 30 s Abs. voltage 14.25/28.50 V Max absorp. time 240 min Min absorp. time 15 min Return amps 6.0 %*I max...
  • Page 24 MAC-PLUS Li-Ion Bulk voltage 14.25/28.50 V Max bulk time 480 min Min bulk time 120 s Start bulk time 13.25/26.50 V Bulk ret. volt. 13.25/26.50 V Bulk return time 240 s Abs. voltage 14.25/28.50 V Max absorp. time 240 min Min absorp.

  • Page 25: Masterbus

    For central monitoring and control of the connected devices Mastervolt offers a wide range of panels which show full status information of your electrical system at a glance and a push of a button. Four different panels are available, from the small Mastervision compatible 120 x 65 mm LCD screen up to the full colour EasyView 5.
  • Page 26 This gives the MasterBus network a high degree of flexibility for extended system configuration, not only today, but in the future as well! Mastervolt also offers several interfaces, making even non-MasterBus devices suitable to operate in the MasterBus network. How to set up a MasterBus network Each device that is suitable for the MasterBus network is equipped with two data ports.
  • Page 27 MAC-PLUS As with all high speed data networks, MasterBus needs a terminating device on both ends of the network. The electric power for the network comes from the connected devices. At least one device in the network should have powering capabilities (see specifications). One powering device can power up to three non-powering devices.
  • Page 28 MAC-PLUS Do not make ring networks. Do not make T-connections in the network.

  • Page 29: Masterbus: Control And Configuring Of The Mac Plus

    MAC-PLUS 15. MasterBus: Control and Configuring of the Mac Plus Monitoring Value Meaning Default Adjustable range Status Shows the actual operation mode: Device state (read only) Standby / Charging / Alarm / Off State of charge algorithm: Off / Bulk / Charge state (read only) Absorption / Float / Constant voltage...
  • Page 30 MAC-PLUS Alarm Value Meaning Alarm status Temperature high Internal temperature is too high Bat. temp. high Battery temperature is too high (> 55 ºC) Bat. temp. low Battery temperature is too low (< -20 ºC) Input high Input voltage is too high Input low Input voltage is too low Output high...
  • Page 31 MAC-PLUS Value Meaning Factory setting Adjustable range Remote sw. input Acitve low: active if voltage between 0-0.5 V, Active high: Not used, Active Mode Active high active if voltage between 3-32 low, Active high V, Not used: always active Input threshold Enabled: input voltage thresholds are active Enabled...
  • Page 32 MAC-PLUS MasterShunt (MSH) or a MLI- BAT+Product Ultra battery (BAT). Enabling Name this function allows to: - Compensate the charge voltage for cable losses - Adjust the actual Charge state based on the state of charge of the battery - Compensate the charge voltage for deviating battery temperatures (MasterShunt only)
  • Page 33 MAC-PLUS Value Meaning Factory setting Adjustable range Output alarm High alarm on High output voltage alarm on 15.25 / 30.50 V 8-16 / 16-32 V High alarm off High output voltage alarm off 14.75 / 29.50 V 8-16 / 16-32 V Low alarm off High output voltage alarm off 11.00 / 22.00 V...
  • Page 34 MAC-PLUS...
  • Page 35 MAC-PLUS...
  • Page 36 MAC-PLUS Mastervolt B.V. Snijdersbergweg 93 1105 AN Amsterdam The Netherlands Tel.: +31-20-3422100 Email: info@mastervolt.com Web: www.mastervolt.com...
