Please keep these instructions for further use
These instructions are for your safety. Please read through them thoroughly
before use and retain for future reference. Failure to follow them could cause a
heater malfunction resulting in serious injury and/or property damage.
PARTS SUPPLIED
Please ensure you have ALL the correct parts before installing the unit.
Description
Electric fire
Trim
Fret
Pebble / Coal
Set
CO9073
Use and Care Manual

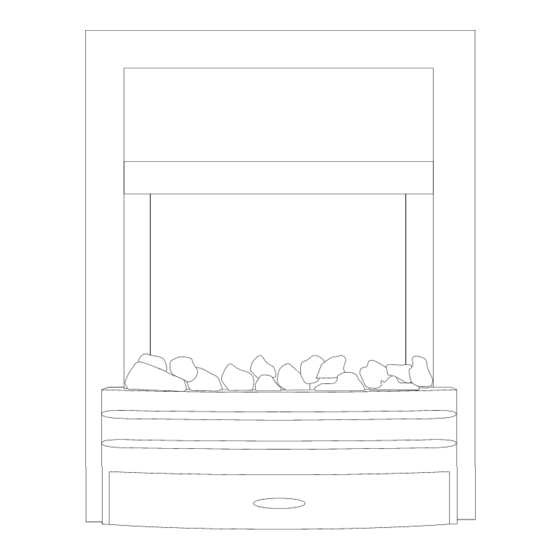

Eclipse Electric Fire
ECLIPSE FIRE
Customer telephone helpline: 08448 809301
Helpline email address: helpline@adamsurrounds.co.uk
PARTS REQUIRED
Qty
If installing into a wooden
back panel, 8 screws will
x 1
be required (3.5mm x
12mm or similar size).
TOOLS REQUIRED
x 1
A crosshead screwdriver
(preferably electric)
x 1
x 1
- 1 -
V3_210711
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Adam Eclipse Electric Fire
Summary of Contents for Adam Eclipse Electric Fire
- Page 1 Use and Care Manual Eclipse Electric Fire Please keep these instructions for further use These instructions are for your safety. Please read through them thoroughly before use and retain for future reference. Failure to follow them could cause a heater malfunction resulting in serious injury and/or property damage.
-
Page 2: Unpacking The Product
Use and Care Manual Eclipse Electric Fire INTRODUCTION Thank you for choosing this electric flame effect fire. The fire is designed to meet the most stringent quality, performance, and safety requirements. This guide aims to improve your understanding and appreciation of your new fire by providing simple and informative instructions to enable you to install it and to ensure that you benefit from the excellent performance and features it has to offer. - Page 3 Use and Care Manual Eclipse Electric Fire Important! Do not spray liquids directly onto any surface of the unit. The electric suite is designed for household and indoor use only. This fire must be earthed. The mains supply must be safely routed from the fire to an electrical socket.
-
Page 4: Safety Cut-Out System
Use and Care Manual Eclipse Electric Fire CAUTIONS Always install the fire in accordance with this guide. If in doubt obtain expert advice. Always make sure the electrical socket is accessible and located Do’s adjacent to, but not above the fire. -
Page 5: Installation Requirements
Use and Care Manual Eclipse Electric Fire INSTALLATION REQUIREMENTS This appliance is suitable for installation into all surrounds with an opening of 420mm x 570mm (16.5” x 22.5”). Please ensure that the minimum amount of space is left around the electric fire when it is installed. - Page 6 Use and Care Manual Eclipse Electric Fire INSTALLATION of the Eclipse Fire (into a wooden back panel) If installing into a stone or laminate back panel, please refer to page 7. NOTE: Please take care when installing the fire as some edges may be sharp.
- Page 7 Use and Care Manual Eclipse Electric Fire INSTALLATION of the Eclipse Fire (into a stone or laminate back panel) 1) Stick one side of the Neoprene Strip (x3) to the back of the electric fire (as shown right). Position the fire within the surround and peel back the other side of the Neoprene Strips.
-
Page 8: Maintenance
Use and Care Manual Eclipse Electric Fire OPERATING THE ELECTRIC FIRE The appliance is controlled using 4 switches, located under the hood of the fire. A switch is in the ON position when the side with the markings on (i.e. I, or II) is ‘pressed in’... -
Page 9: Plug Replacement
Use and Care Manual Eclipse Electric Fire PLUG REPLACEMENT (For product fitted with BS Plug) This appliance is supplied with a BS1363 3 pin plug fitted with a 13 Amp fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 13 Amp and approved to BS1362. -
Page 10: Conformity With Directives
Use and Care Manual Eclipse Electric Fire CONFORMITY WITH DIRECTIVES Conforms with relevant European Directives ENVIRONMENTAL PROTECTION (WEEE) Waste Electrical and Electronic Equipment Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
