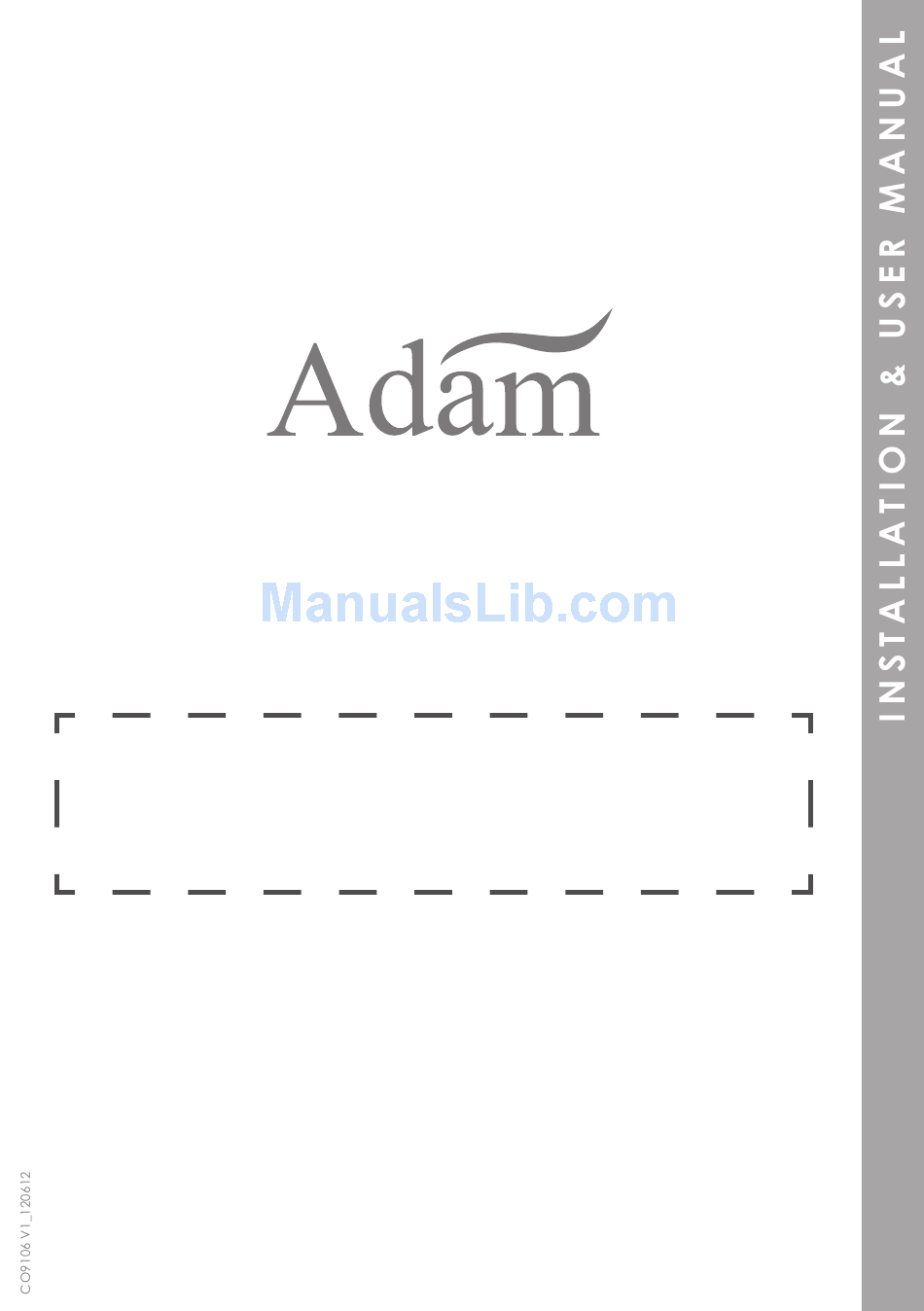

S L I M L I N E G A S F I R E
m o d e l n o . E c o 4
THIS IS NOT A DIY PRODUCT AND MUST BE
INSTALLED BY A GAS SAFE REGISTERED INSTALLER
ALL INSTRUCTIONS MUST BE HANDED TO THE USER
FOR SAFE KEEPING
www.adamfires.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eco4 and is the answer not in the manual?

Questions and answers

Related Manuals for Adam Eco4

Summary of Contents for Adam Eco4

  • Page 1 S L I M L I N E G A S F I R E m o d e l n o . E c o 4 THIS IS NOT A DIY PRODUCT AND MUST BE INSTALLED BY A GAS SAFE REGISTERED INSTALLER ALL INSTRUCTIONS MUST BE HANDED TO THE USER FOR SAFE KEEPING www.adamfires.co.uk...
  • Page 2 These Notes Must Be Read Before Installation This appliance is an Inset Live Fuel Effect appliance that provides radiant or combined radiant and convected heat; it cannot and should not be used as the main heating source within a property. The appliance is designed to fit most types of fireplaces with a natural draught flue as listed in the Installation Requirements.
  • Page 3 OPENING THE APPLIANCE Stand the carton the right way up, open the box from the top. Read all the instructions before continuing to unpack or install this appliance. Remove the bags containing ceramic components such as coals or gravel etc. Remove the cardboard packing pieces, and any other bags or boxes containing fittings or other parts.
  • Page 4 CUSTOMER HELPLINE 08448 809 301 customer.support@firedupgroup.co.uk PART OF Fired Up Corporation Ltd. Fired Up Buildings St Thomas Road Huddersfield HD1 3LF United Kingdom www.firedupgroup.co.uk...

  • Page 5: Table Of Contents

    CONTENTS SECTION Important Notes Installation requirements Appliance Information Ventilation Site Requirements 09-11 Pre-Fabricated Flue box Debris Space Installation of appliance 13-16 Preparing the Opening 17-20 Fitting the Burner Tray 20-22 Fuel Bed Layout 22-27 Fitting The Decorative Frame Spark Failure Setting Pressure 28-29 Flue Spillage Monitoring System...

  • Page 6: Important Notes

    IMPORTANT NOTES This fire is an Inset Live Fuel Effect Gas Fire providing radiant warmth. It is designed to operate on Natural Gas or LPG. It is the LAW that all gas appliances and fittings are installed by a competent person such as a Gas Safe Registered fitter and in accordance with the Gas Safety (Installation and Use) Regulations 1998, the relevant British Standards for Installation, Codes of Practice and in accordance with the manufacturers’...

  • Page 7: Installation Requirements

    INSTALLATION REQUIREMENT This appliance MUST NOT be installed into a bathroom or shower room, or where steam may be present. An extractor fan must not be fitted in the same room or space as the appliance as this can affect the safety of the appliance. The fire has been designed to fit into a fireplace or builders opening conforming to BS 1251 (and meeting certain dimensional requirements), or a suitable flue box complying with the constructional requirements of BS 715.

  • Page 8: Appliance Information

    APPLIANCE INFORMATION Eco4 Hotbox Convector Hotbox Convector Gas Group G20 Natural G20 Natural Propane (G31) Propane (G31) Gas CAT I2H Gas CAT I2H Inlet Pressure 20 mbar 20 mbar 36 mbar 36 mbar Max Input (gross) Min Input (gross) Setting Pressure...

  • Page 9: Ventilation

    VENTILATION This Appliance does not normally require purpose provided ventilation. However, a second appliance operating within the same room or space must be taken into consideration when assessing ventilation. When commissioning the appliance spillage is detected, then amongst other problems there may be insufficient natural ventilation for correct operation of the flue.
  • Page 10 Older editions of BS1289 required a cross-sectional area of 13,000mm2. The current revision of the standard requires 16,500mm2. The current versions of BS1289 and BS EN 1806 recommend that there should be an air space or insulation between the flue blocks and the plaster because heat transfer may cause cracking on directly plastered flues.
  • Page 11 Eco 4 Height 552-575mm Width 350-455mm Depth 113mm Hotbox / 134mm Convector Minimum hearth depth in front of the fire 300mm Hearth must extend minimum of 150mm Minimum hearth height 50mm HOLE-IN-THE-WALL INSTALLATIONS Where the appliance is to be installed as a hole-in-the-wall fireplace, a hearth as previously detailed for floor level fireplaces shall be fitted on the floor beneath the hole so as to protect combustible material from heat.

  • Page 12: Pre-Fabricated Flue Box

    PREFABRICATED FLUE BOXES This appliance can be fitted into a number of flue boxes provided that the minimum dimensions required for the appliance are complied with. The frame of the fire, any back panel or other infill panels, and the flue box must be sealed together so that there is no possibility of leakage between them.

  • Page 13: Installation Of Appliance

    INSTALLATION OF APPLIANCE Always ensure that the gas supply is isolated before commencing installation of the appliance. The fireplace opening and environment must be in compliance with specifications laid down in the appropriate sections of these instructions. Remove the appliance from its carton as described previously and stand on a dust sheet.
  • Page 14 On the slide control option disassemble the linkage by removing the two screws (shown in diagram below), to the slide control then remove the burner from the assembly by removing the three screws at the base of the burner tray and undoing the connecting nut to the isolation tap on the side.
  • Page 15 The tray is now free and may be lifted away from the box, lift free of the retaining clips on each side of the burner tray. If this is the Remote controlled version of the this fire then care is needed when removing the burner not to damage the wiring system of the fire, you will need to remove the control box, Heat Shield and battery holder placed at the back of the fire box.
  • Page 16 Control Box Heat shield You can now decide where to route your gas pipe, knock out holes are provided in the rear and side of the fire box for use where concealed pipe work is required. Knock out the holes with a screwdriver and a sharp tap from a hammer and fit the rubber grommet supplied.

  • Page 17: Preparing The Opening

    PREPARING THE OPENING Before installing the fire, check the flue for correct operation using a smoke pellet, all of the smoke should be drawn up the flue and exit correctly from the terminal. If problems are found DO NOT fit the fire until corrective measures have been completed.
  • Page 18 Note: In some instances the plastic wall plugs supplied may need to be substituted with fibre wall plugs, if the appliance is likely to heat the screw eyes. If the fireplace does not allow for the exact layout shown, the eyebolts should be fixed to give a similar configuration as possible.
  • Page 19 Push the appliance back into the fireplace, centralise and pull the loose cables through the hole into the firebox. Thread the cable tensioner onto the cable as shown, with the nuts screwed down close to the tensioner head. Slide the screwed nipple through the box and pull cable taut and tighten pinch screw on to the cable.

  • Page 20: Fitting The Burner Tray

    The isolator tap or restrictor elbow must be fitted to the incoming supply to facilitate servicing. The gas pipe must be suitably protected where it passes through fireplace openings. Any sleeving should be sealed to the pipe at its ends. The open end of the gas supply pipe should be temporarily sealed to prevent ingress of dust and dirt during installation.
  • Page 21 If the fire is the remote control version then carefully place the control box in position with the heat shield in place as shown on page 16 and re-connect the burner tray. Connect the gas supply and tighten the gas connections. With the slide control option please reverse the previous removal instructions taking care to align the linkage system as shown below.

  • Page 22: Fuel Bed Layout

    Place battery holder and cover here Remote sensor Do not place the remote sensor any where above this point. The Sensor MUST be able to be seen when the decorative fascia is in place, the sensor may require relocating when used with alternative Fire Fret/Front. FUEL BED LAYOUT Place the ceramic rear matrix onto the burner ensuring that the rear...
  • Page 23 Note: Please ensure that the support brackets are level and that there is a minimum gap of 5mm between the burner and the bottom of the rear matrix. This must not touch the burner as this could cause the fire to burn incorrectly, which may cause damage to the fire and malfunction.
  • Page 24 Place the front row of 5 coals/pebbles between the front coal support and the rear matrix as shown. Now Place the second row as shown below, coals may be rotated slightly within their positions to give a good visual effect. Note: The coals must not be crammed together, or inserted into the holes in the matrix.
  • Page 25 TRADITIONAL RANDIOM COAL BED OPTION First identify the parts please see below: Random coal front matrix 5x Coal A 4x Coal B Place the Random Coal Front matrix in place, ensuring that it does not touch the pilot assembly behind.
  • Page 26 Place two B Coals at each end of the front matrix and the rear matrix as shown. Do not block the area between the coal supports. Place the three coals A as shown again ensuring that the area between the coal supports is clear.

  • Page 27: Fitting The Decorative Frame

    The fire front/fret shown in these instructions may differ from the one supplied with the appliance, we strongly recommend you use a fire front/fret supplied by Adam fires as these products will have been tested with the appliance, although other fire front/frets will be compatible.

  • Page 28: Spark Failure

    SPARK FAILURE The gap between the spark electrode and the pilot should be 3.5 - 4.5mm to produce a good spark. There should be no need to adjust this. If under any circumstances the electric spark fails, the pilot may be lit manually by proceeding with the ignition sequence as previously described, and after turning the control knob through the spark position, the knob should be held in and the pilot lit with a taper.

  • Page 29: Flue Spillage Monitoring System

    Once the fire has been lit for 5 minutes, turn the gas OFF at the isolating elbow. After a further 3 minutes turn the gas supply ON again, if the gas has stopped flowing, the Flame Supervision Device (FSD) is operating correctly. Always check that the gas has stopped flowing even if you hear the FSD valve close within the 3-minute period.

  • Page 30: Testing For Spillage

    TESTING FOR SPILLAGE Close all doors and windows to the room containing the appliance. Let the fire run on HIGH for five minutes. Take a smoke match, light it, and using a smoke match tube, hold it at the top edge of the fire opening, 25mm down and 25mm in.

  • Page 31: Briefing The Customer

    BRIEFING THE CUSTOMER All instructions must be handed to the user for safekeeping. Show the customer how to light and operate the fire. After commissioning the appliance, the customer should be instructed on the safe use of the appliance and informed of the need for regular servicing. Frequency of service depends on usage, but MUST be carried out at least once annually.

  • Page 32: Servicing

    SERVICING Isolate the fire from the gas supply. Ensure that the fire is fully cold before attempting service. A suggested procedure for servicing is detailed below: 1. Lay out the dust sheet and tools required. 2. Remove the cast front fret. 3.

  • Page 33: Cleaning The Coals

    CLEANING THE COALS Remove the fire front/fret casting and place to one side. Remove the ceramic components. Gently clean in the open air using a dry paint brush. Be careful not to create dust from the coals. Where necessary replace damaged components with genuine spares. Seal scrap ceramic components in plastic bags and dispose at proper refuse sites as directed.
  • Page 34 Pilot flame shrinks when fire is on high Poor gas flow to fire - Check pressure with fire on high. If pressure is low - Remove any restriction in pipe work or valve. Check all isolators are adequately sized and fully open. Check meter pressure is adequate.
  • Page 35 No Operation For correct operation the handset light should flash and the EDB (control Box) should emit a single beep Check main battery pack, if low it will Beep continuous - 7 "beeps"= low charge, 6 "beeps"= Discharged batteries. In both cases change the battery, if using 6 x AA change all batteries and ensure that types are not mixed, it is recommended to use alkaline or lithium, also ensure the batteries are correctly positioned within the holder, in some cases it may be necessary to...

  • Page 36: User Instructions

    USER INSTRUCTIONS IMPORTANT NOTES The installation of this fire MUST only be carried out by a competent person (such as a Gas Safe registered fitter) in accordance with the Gas Safety (Installation and Use) Regulations 1998, the relevant British Standards, Codes of Practice, the Building Regulations and the manufacturers’...
  • Page 37 Compliance with safety standards cannot be guaranteed if another style of front is used. A combustible shelf may be fixed to the wall above the fire, providing that it complies with the dimensions given in section 5 site requirements. No purpose provided ventilation is normally required for this appliance. The requirements of other appliances operating in the same space or room, and the results of a spillage test must be taken into consideration when assessing ventilation requirements, this will have been carried out by your Gas Safe registered installer.
  • Page 38 To achieve the HIGH setting, push the control knob in slightly and continue turning anti-clockwise to the high position. The main burner should light after a few seconds, to decrease the setting to LOW, turn the control knob clockwise to the low setting. To turn to the PILOT position from the HIGH or LOW positions, press the control knob in, and return to the pilot position and release.
  • Page 39 1. From the standing position push the thumb control all the way to the bottom where a spark will be heard and generated, hold down for approximately 15 seconds. 2. Release the pressure and the pilot light should now be established (if this fails repeat step 1 and hold down up to 20 seconds).
  • Page 40 OPERATING THE APPLIANCE (Remote control) For your safety, the fire is fitted with a Flame Supervision Device (FSD), which will shut off the gas supply if for any reason the pilot is extinguished. This device incorporates a fixed probe, which senses heat from the pilot burner flame, if the probe is cooled, the device will prevent any gas flow.
  • Page 41 CHANGING THE BATTIERIES Detach the battery holder from under the fire. Remove the batteries from the holder. It is recommended to replace all the batteries at the same time. Ensure the replacement batteries are placed in the holder correctly. Wait at least 15 minutes before re-attaching the battery holder. Remote Control fires will need 6 x AA batteries.

  • Page 42: List Of Spares

    LIST OF SPARES Eco4 Manual Control...
  • Page 43 Eco4 Slide Control...
  • Page 44 Eco4 Remote Control...
  • Page 45 Eco4 Ceramics...
  • Page 46 Eco4 Ceramics...
  • Page 47 PARTS LIST CODE SPARE PART DESCRIPTION PART NUMBER FRONT MATRIX E4 FRONT MATRIX E4 RANDOM COAL FUEL BED REAR MATRIX E4 black 2-BLK REAR MATRIX E4 grey COAL SET E4 (9 PCS) COAL SET RANDOM (9 PCS) PEBBLE SET E4 (granite grey 9 pc) PEBBLE SET E4 (sandstone yellow 9 pc) PEBBLE SET E4 (grey &...

  • Page 48: Warranty Details

    IMPORTANT INFORMATION ABOUT WARRANTY SERVICE FOR THE END USER Adam is committed to customer care and service. To ensure we provide the best service we can we have a policy to charge for all none warranty home visits so that all customers with a genuine manufactures fault can be dealt with swiftly, if your appliance has recently been installed and you are experiencing any of the following;...

  • Page 49: Warranty Statement

    Your receipt of purchase showing the date and where purchased from • Your installers details You can contact a representative for Adam in the UK by phone to obtain advice on 08448 809 301 WARRANTY STATEMENT Adam (hereinafter referred to as the company) will, at its option, repair or replace free...
  • Page 50 Adam Fires Validation of your installation will be required prior to warranty service/repair; there will be a fee for this. No other validation will be accepted by Adam. The guarantee shall not cover: (a) surface crazing of fibre components e.g.
  • Page 51 Adam Fires assume responsibility for any incidental indirect or consequential damages, except as provided by law. It is essential that your Adam appliance is serviced, by a suitably qualified Gas Safe engineer or a Adam authorised appointed engineer to carry this out at least...

  • Page 52: Installation Form

    INSTALLATION FORM YOUR INSTALLER NEEDS TO COMPLETE THIS FORM NAME OF RETAILER NAME ADDRESS TEL NUMBER GAS SAFE REG NUMBER THE WORKING PRESSURE OF THE FIRE IS (on high setting) mbar THE STANDING PRESSURE OF THE FIRE IS mbar GAS RATE FLUE - SPILLAGE TEST PASS FAIL...
