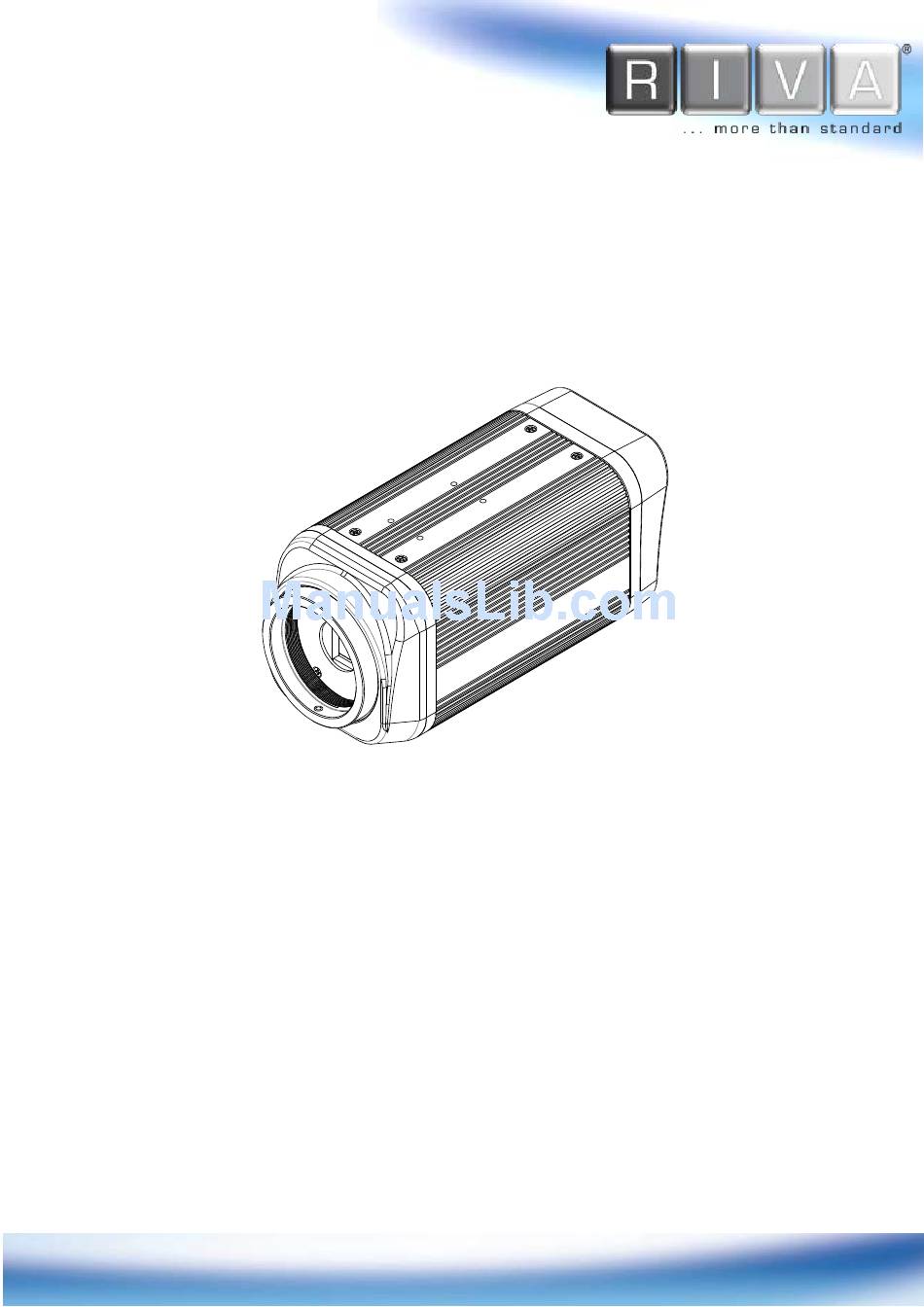

- Page 1 RTC series Installation Guide www.rivatech.de...
- Page 2 RTC Series RTC Installation Guide INFORMATION TO USER CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE DEVICE COVER (OR BACK). CONTACT QUALIFIED SERVICE PERSONNEL FOR INTERNAL PART SERVICES.
-
Page 3: Table Of Contents
RTC Series RTC Installation Guide Table of Contents 1. FEATURES ................4 2. PACKAGE CONTENTS ..............5 3. PART NAMES ................6 3.1. Rear View ..................6 3.2. Bottom View ................6 4. CONNECTIONS ................ 8 4.1.Connectors ................... 9 5. CONFIGURATION ..............12 5.1.Set up network environment ............ -
Page 4: Features
RTC Series RTC Installation Guide 1. FEATURES Camera 17 ㎛ Next Generation Mirobolometer Technology 320x240 pixels 42, 19,12, 9 or 6 degrees field of view (Other lenses available upon request) Streaming Dual streaming mode (such as different codec/resolution/bit rate and so on.) -
Page 5: Package Contents
RTC Series RTC Installation Guide 2. PACKAGE CONTENTS The package contains main camera, DC power adaptor, DC jack adaptor cable, hex wrench driver, 9 pin terminal block, mounting adaptor, screws, and quick installation guide. Unpack carefully and handle the equipment with care. -
Page 6: Part Names
RTC Series RTC Installation Guide 3. PART NAMES 3.1. Rear View ① ② ③ ① LOOP OUT RESET RS-485 AUDIO ⑤ ④ ① 1 Out ⑥ Micro SD ETHERNET ⑦ 3.2. Bottom View ⑧ 01A.04... - Page 7 RTC Series RTC Installation Guide 1 Analog video out It is an analog video output port. 2 Reset Reset switch is used for restarting or resetting the camera as Factory Default (FD). Refer to the section “5.3.Reset” for more specific information.
-
Page 8: Connections
RTC Series RTC Installation Guide 4. CONNECTIONS Analog Video Out DC Jack Adaptor LOOP OUT Cabl RESET RS-485 AUDIO 1 Out Power Adaptor Micro SD al Camera LAN Cable ETHERNET The device is polarity sensitive. Incorrect power connection may cause the device to malfunction or damage the equipment. -
Page 9: Connectors
RTC Series RTC Installation Guide 4.1.Connectors 1 9 pin terminal block LOOP OUT RESET RS-485 AUDIO 1 Out Micro SD Intelligent Thermal Camera ETHERNET 2 RS-485 The RS-485 serial port consists of TRX+(RX+) and TRX-(RX-) as following the following image. - Page 10 RTC Series RTC Installation Guide Internal Internal Output of Output of Sensor Sensor DI 1 Relay Type Voltage Type 4 Alarm (DO) connection Only the relay type is supported. Relay Rating: Max 24VDC 50mA Do not exceed the maximum relay rating.
- Page 11 RTC Series RTC Installation Guide 6 Power Adapter Connector (DC 12V) Power adaptor connector connects to DC Jack adapter cable. The device is polarity sensitive. Incorrect power connection may cause the device to malfunction or damage the equipment. Caution Power Adaptor Connector (DC 12V) Caution 01A.04...
-
Page 12: Configuration
RTC Series RTC Installation Guide 5. CONFIGURATION 5.1.Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on a same area network before running the installation. -
Page 13: Custom Ip Environment
RTC Series RTC Installation Guide 5.1.2. Custom IP Environment IPAdminTool and the manual can download from www.rivatech.de homepage. IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. -
Page 14: View Video On Web Page
RTC Series RTC Installation Guide 5.2. View video on web page Once the device has the proper IP address, users can view the live streaming images through a web browser. ActiveX needs to be installed in Microsoft Internet Explorer. 1. Type the correct IP address in the Microsoft® Internet Explorer 2. -
Page 15: View Video Using Ipadmin Tool
RTC Series RTC Installation Guide 3. Follow the instructions of the dialog boxes and complete the installation. Once the installation is complete, start the web browser again and check if video stream is displayed in the main view frame. This software requires the Microsoft XML Parser V6 or higher. -
Page 16: Reset
RTC Series RTC Installation Guide 5.3. Reset Reset can be carried out as follows: 1. Use a pointed object to push the reset button for 1~2 seconds. 2. Wait for the system to reboot. 5.4. Factory Default Resetting the device to the factory default will reset all configured parameters to the initial factory settings. -
Page 17: Appendix (A): Specifications
RTC Series RTC Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Focal Plane 17 ㎛ Next Generation Mirobolometer Technology Array Effective 320(H)x240(V) Pixels Scanning Progressive Scan system Camera Spectral 8~14 ㎛ Module Reponse 7.5mm, F1.4 (42.1 Degree FoV) 16.7mm, F1.2 (18.7 Degree FoV) Lens 25mm, F1.2 (12.4 Degree FoV) -
Page 18: Environment Condition
RTC Series RTC Installation Guide Input / Output 1/1 channel Compression Format G.711 Function Digital Input / Ouput 1/1 channel RS-485 Supported Network 10/100 Base-T TCP/IP, UDP/IP, HTTP, RTSP, RTCP, RTP/UDP, RTP/TCP, Protocol SNTP, mDNS, UPnP, SMTP, SOCK, IGMP, DHCP, FTP, DDNS, SSL v2/v3, IEEE 802.1X, SSH, SNMP... -
Page 19: Appendix (B): Theoratical Distance
RTC Series RTC Installation Guide APPENDIX (B): THEORATICAL DISTANCE Vehicle Human Lens Detect Recognize Identify Detect Recognize Identify 7.5mm 14.5mm 25mm 1560 35mm 2150 50mm 2600 1000 Unit: meter Please Note!: Released distance are based on theoretical calculation. In practical application reached distance can diverse depending environment conditions. -
Page 20: Appendix (C): Power Over Ethernet
RTC Series RTC Installation Guide APPENDIX (C): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power- over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. -
Page 21: Appendix (D): Dimensions
RTC Series RTC Installation Guide APPENDIX (D): DIMENSIONS Rear view LOOP OUT RESET AUDIO RS-485 1 Out Micro SD Intelligent Thermal Camera ETHERNET 01A.04... - Page 22 RTC Series RTC Installation Guide Housing Model UNIT: mm 01A.04...
-
Page 23: Appendix [E]: Camera Housing
RTC Series RTC Installation Guide APPENDIX [E]: CAMERA HOUSING The housing protects the surveillance device from material weathering, intentional vandalizing, and miscellaneous environmental impacts. This weatherproof IP66 housing has heater and fan attached inside, which are controlled by the sensor. -
Page 24: Camera Installation
RTC Series RTC Installation Guide Camera Installation Camera & Camera mount조립 1. Attach the camera mount on the bottom of the camera. Camera mount plate 조립 Camera & Camera mount조립 *The camera mount can be attached on the camera at three different locations (A, B and C). - Page 25 RTC Series RTC Installation Guide Camera mount plate 조립 Camera & Camera mount조립 *The camera mount can be fixed at two different locations on the mount plate (1 and 2). Outdoor housing 조립 Consider the lens length before determining the mount plate screw holes’ location.
- Page 26 RTC Series RTC Installation Guide olt 체결 Point ( ODE-1000T-230) 4. Connect power source into the 연결 terminal, located inside of the housing. Make sure all cables are 전원 correctly-connected to its corresponding end. (+, - and ground) 5. Connect power source to the camera and also a LAN cable.
-
Page 27: To Connect Cables
RTC Series RTC Installation Guide To connect cables The bottom of the housing has two cable glands for cables. Use control cable to connect with the cable gland (Refer to the below figure) Control Cable Rubber Packing Ring Cable Gland Be advised to connect the surveillance camera with designated power voltage. -
Page 28: Appendix (F): Hexadecimal-Decimal Conversion Table
RTC Series RTC Installation Guide APPENDIX (F): HEXADECIMAL- DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. 01A.04... - Page 29 RTC Series RTC Installation Guide Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec 25 37 4A 74 6F 111 94 148 B9 185 DE 222 26 38 4B 75 BA 186 70 112 95 149...
-
Page 30: Revision History
RTC Series RTC Installation Guide REVISION HISTORY MAN# DATE(M/D/Y Comments 01A.00 04/30/201 Created. 01A.01 05/24/201 Housing appendix added 01A.02 06/25/201 DI/DO specification corrected 01A.03 09/18/201 Hyperlink and chapter update. Housing Spec update 01A.04...
