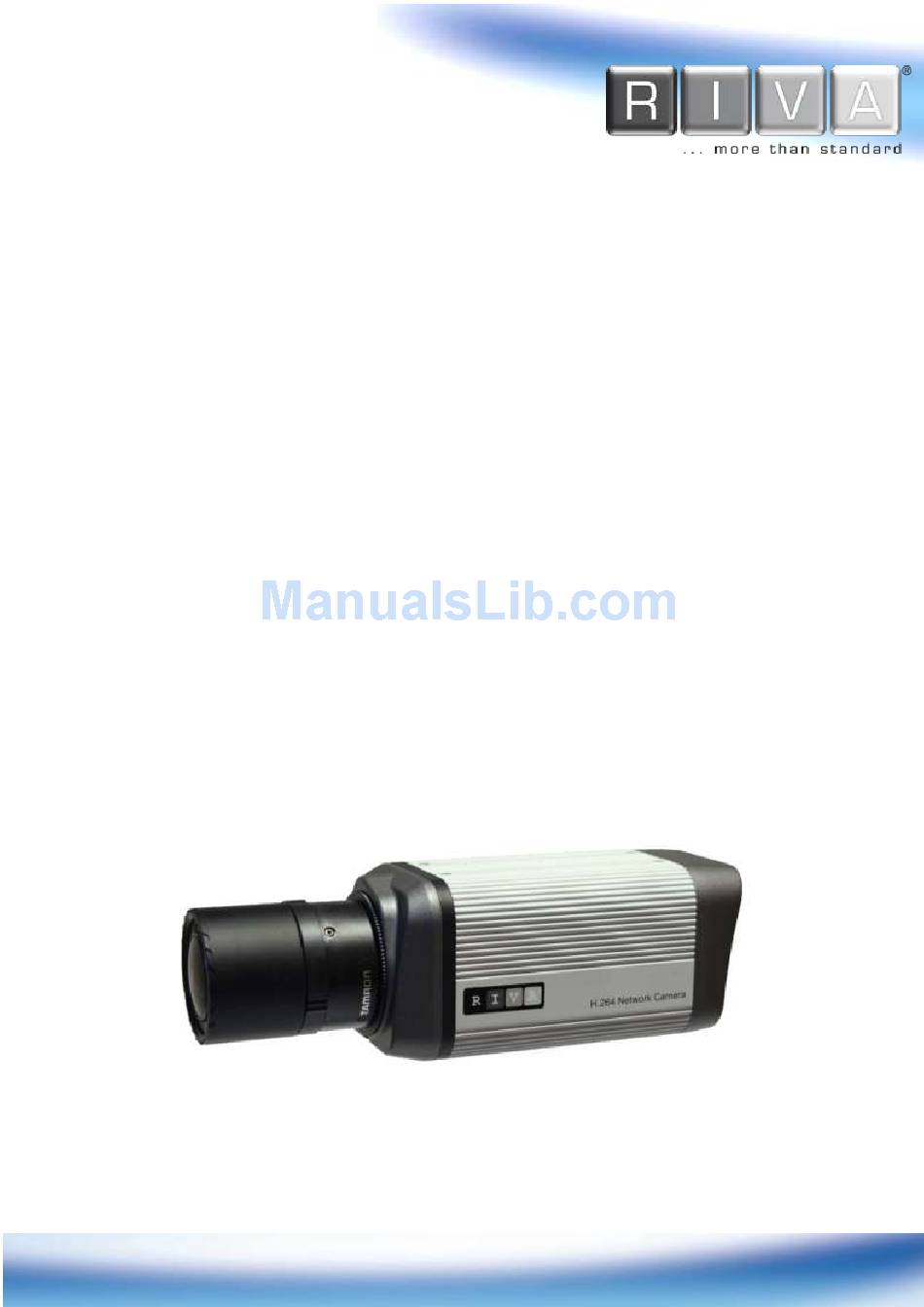

Page 1: Installation Guide
RC1100M Installation Guide www.rivatech.de... - Page 2 INFORMATION TO USER CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SEERIVCE PERSONEL. This symbol is intended to alert the user to the presence of un-insulated “dangerous voltage”...
-
Page 3: Table Of Contents
Table of Contents 1. FEATURES ................5 2. PACKAGE CONTENTS ..............6 3. PART NAMES ................7 3.1. Rear View ..................7 3.2. Bottom View ................. 8 4. INSTALLATION ................. 10 4.1. Using a lens ................10 4.2. Setting the Image Attribute ............11 4.3. - Page 4 PoE compatibility................. 22 Power classification................22 APPENDIX (C): DIMENSIONS ............23 APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE ..... 25 REVISION HISTORY ............... 26 www.rivatech.de...
-
Page 5: Features
1. FEATURES Camera Box type IP Megapixel Camera Aptina (Micron) 1/3.2" (4:3) CMOS 2M pixels Streaming Dual streaming mode (such as different codec/resolution/bit rate and so on.) De-interlacing on DSP Burnt-in text supported Unicast/Multicast supported Video/Audio ... -
Page 6: Package Contents
2. PACKAGE CONTENTS Unpack carefully and handle the equipment with care. The packaging contains: Camera DC power adaptor Mount ring 9 Pin terminal block Rubber cap (for protecting CCD) Hex wrench driver Adaptor for mounting the camera Screws Quick Installation Guide DC Jack Adaptor Cable The above contents are subject to change without prior notice. -
Page 7: Part Names
3. PART NAMES 3.1. Rear View RESET RS-485 AUDIO ① Out In Micro SD ETHERNET www.rivatech.de... -
Page 8: Bottom View
3.2. Bottom View 1 Reset Reset switch is used for restarting or resetting the camera as Factory Default (FD). Refer to the section “6.3. Reset” for more specific information. 2 USB connector Insert a USB storage device or Wi-Fi devices. (Ralink RT73 or RT3070 chipset based wireless device is available.) 3 9 pin terminal block for D/I, D/O, audio, and serial communication Refer to the section “5.1.Connectors”... - Page 9 Make sure the polarity is correct. Incorrect connection may cause malfunction or damage to the IP device. Caution 5 Micro SD Card slot It is a memory card slot for local storage of snapshot recording. The AVI file recording is not supported due to the lack of hardware resource.. 6 LAN Connector (Ethernet) This is a RJ45 LAN connector for 10/100 Base-T Ethernet.
-
Page 10: Installation
4. INSTALLATION Set Screw SET SCREW *Lens is optional. 4.1. Using a lens To have the full resolution of a megapixel camera, use a megapixel lens with manual iris. Installing a standard definition to a megapixel camera may create poor image quality. -
Page 11: Setting The Image Attribute
For more detailed information, refer to the ‘Webpage User’s Manual’ in the SDK. 4.3. Installing a Wireless USB Adapter (Optional) A wireless USB adapter is sold separately as an optional kit. Please contact the RIVA distributor to purchase a wireless USB adapter. Note The kit includes: ... -
Page 12: Connections
5.CONNECTIONS DC Jack Adaptor Cabl RESET RS-485 AUDIO Out In Micro SD Power Adaptor LAN Cable ETHERNET When connecting the DC power supply, make sure the polarity is correct. Incorrect connection may cause malfunction or damage to the Caution camera. www.rivatech.de... -
Page 13: Connectors
5.1.Connectors 1 9 pin terminal block RESE RS-485 DO DI AUDI C 1 C 1 Micro SD ETHERN 2 RS-485 The RS-485 serial port consists of TRX+(RX+) and TRX-(RX-) as following the following image. <RS-485 Application> TRX+(RX+) TRX-(RX-) 485 Devices PTZ Device RS-485 Connection 3 Sensor (DI) connection... - Page 14 Do not exceed the maximum input voltage or relay rate. Caution Internal Internal Output of Output of Sensor Sensor DI 1 Relay Type Voltage Type 4 Alarm (DO) connection Only the relay type is supported. Relay Rating: Max 24VAC 500mA or 12VDC 1A Do not exceed the maximum relay rating.
- Page 15 5 Audio connection The camera has a mono audio input and a mono audio output. As the output power for the audio is low, amplifier speaker is needed. (Do not use a headphone or earphone directly to the camera.) Aout Speaker 6 Power Adaptor Connector (DC 12V) Power adaptor connector connects to DC Jack adapter cable.
-
Page 16: Configuration
6.CONFIGURATION 6.1.Set up network environment The default IP address of your IP device is 192.168.XXX.XXX. You can find the available IP address from the MAC address of your device. Please make sure the device and your PC are on the same network segment before running the installation. If the network segment between your PC and the device is different, change your PC’s settings as below. -
Page 17: View Video Using Ipadmin Tool
6.2.1. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. IPAdminTool is provided with SDK at the following SDK path. {SDK root}\BIN\TOOLS\AdminTool\ To use the IPAdminTool and view the live video on a web page: 1. -
Page 18: View Video Using Ip Address
6.2.2. View video using IP address View the live video on a web page using your IP device and its IP address. To have the correct IP address ready and use it on a web page: 1. Convert a MAC address to an IP address or check the IP address on the Appendix (D): Hexadecimal-Decimal Conversion Table IPAdminTool. -
Page 19: Appendix (A): Specifications
APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor Aptina (Micron) 1/3.2" (4:3) CMOS 2M Effective Pixels 1600 x 1200 (UXGA, 2M) Scanning system Progressive Scan Dynamic Range 71dB Max 42.3dB Minimum Illumination 0.5 Lux(50IRE), 0.1 Lux(DSS x5 ON) Lens (Optional) 3~8 mm, F1.0 Manual Iris Lens, CS Mount Day &... -
Page 20: Resolutions Per Codec Frame Rate
SNMP v2/v3 USB 2.0 Support (Mini-B plug) Supported (Micro SD type) SD Slot ※ Micro SD Card is not included Resolutions per Codec Frame rate Codec MPEG4 H.264 MJPEG Resolution UXGA (1600x1200) Not available 5 fps SXGA (1280x1024) Not available 8 fps HD720 (1280x720) Not available... -
Page 21: Environment Condition
Environment Condition Operating Temperature -10 ˚C ~ 50 ˚C (14˚F ~ 122 ˚F) Operating Humidity Up to 85% RH (Non-condensing) Mechanical Condition Material Aluminum Die Casting-2 Color White Pearl Short Case Model: 55(W) x 55(H) x 91.4(D) mm Dimension Long Case Model: 55(W) x 55(H) x 122.5(D) mm Weight (Approx) 260 g www.rivatech.de... -
Page 22: Appendix (B): Power Over Ethernet
APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over- Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. The PoE module signature and control circuit provides the PoE compatibility signature and power classification required by the Power Sourcing Equipment (PSE) before applying up to 15W power to the port. -
Page 23: Appendix (C): Dimensions
APPENDIX (C): DIMENSIONS Front view Top view Short Case Model Long Case Model www.rivatech.de... - Page 24 RESET RS-485 AUDIO C 1 C 1 Micro SD ETHERNET Rear view UNIT: mm www.rivatech.de...
-
Page 25: Appendix (D): Hexadecimal-Decimal Conversion Table
APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec 25 37 4A 74 6F 111 94 148 B9 185... -
Page 26: Revision History
REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.01 01/11/2010 Created. 01B.00 01/22/2010 Fixed Resolution table 01B.01 02/25/2010 Modified for end users 01B.02 04/05/2010 Added LAN cable specification for PoE 02A.00 04/20/2010 FW v1.02.04 updated 02A.01 05/14/2010 Added a notice about AVI recording feature via SD card slot 02A.04 07/16/2010...
