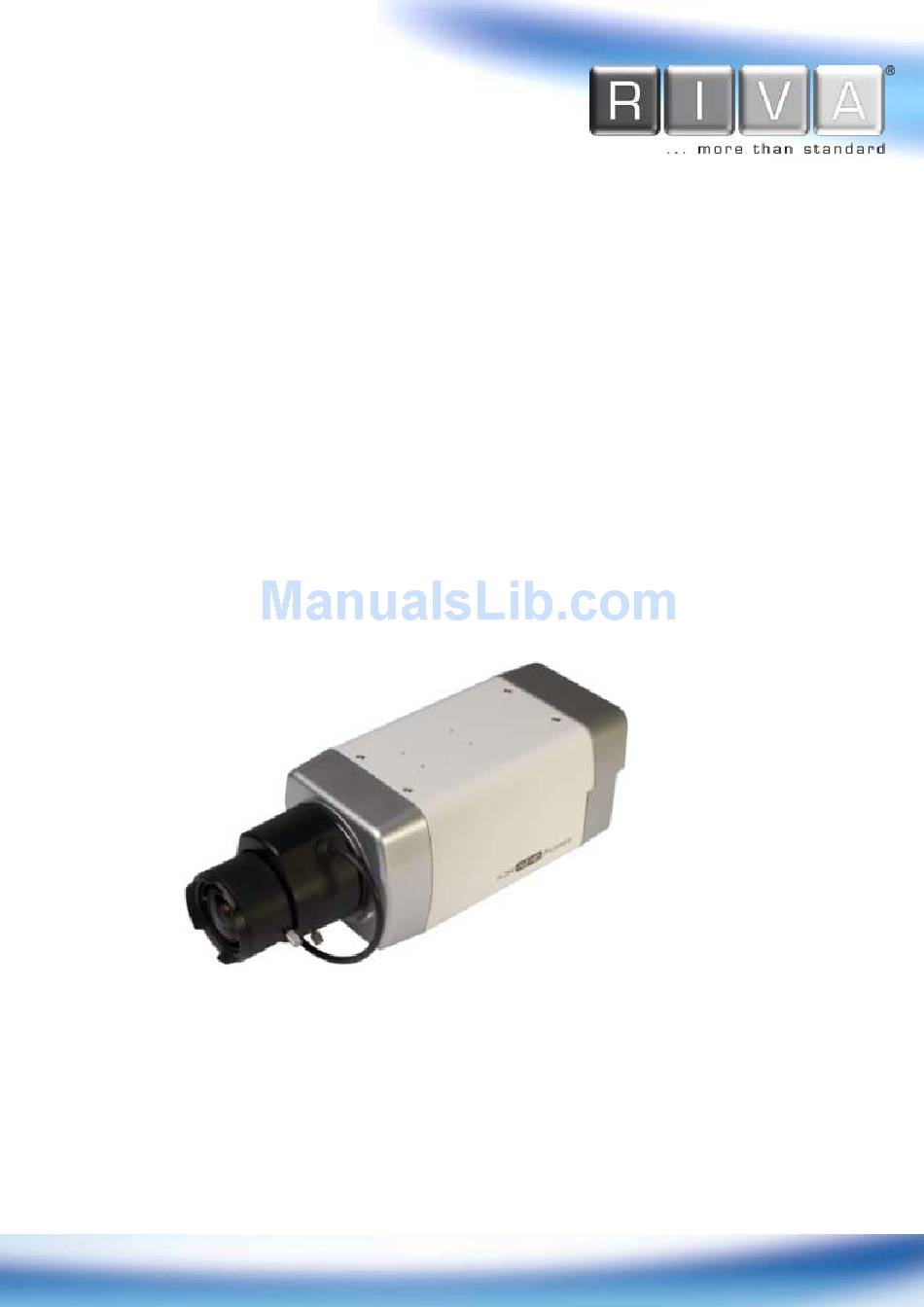

Page 1: Installation Guide
Fehler! Unbekannter Name für Dokument-Eigenschaft. RC1202HD Installation Guide www.rivatech.de... - Page 2 INFORMATION TO USER CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE DEVICE COVER (OR BACK). CONTACT QUALIFIED SERVICE PERSONNEL FOR INTERNAL PART SERVICES. This symbol is intended to alert the user the presence of un-insulated “dangerous voltage”...
-
Page 3: Table Of Contents
Table of Contents 1.FEATURE………………………………………………………………………………….4 2. PACKAGE CONTENTS.................5 3. PART NAMES…………………………………………………….…..….…………..6 3.1. Rear View…………………………………………………………………..……………….6 3.2. Side View…………………………………………………………………………………..6 3.3. Front View………………………………………………………………………….………..7 4.INSTALLATION…………………………………………………………………………9 4.1. Installing a Lens………………………………………………………………………….9 4.2. Installing the Mounting Adaptor…………………………………………………..….10 4.3. Connecting Cables……………………………………………………………..…….….11 4.4. Setting the Image Attribute…………………………………………...…………….15 5.CONFIGURATION……………………………………………………..….…………….16 5.1. Set up network environment…………………………………..……….………………16 5.1.1. -
Page 4: Feature
1.FEATURES Camera Box type full-HD IP camera 1/2.7” 1080p CMOS Image Sensor CS mount, DC auto iris control output Streaming Dual streaming mode (such as different codec/resolution/bit rate and so on.) Burnt-in text support Unicast/Multicast support Video/Audio ... -
Page 5: Package Contents
2. PACKAGE CONTENTS The package contains main camera, DC power adaptor, DC jack cable, camera lens, terminal block, power adaptor jack, screws, mounting adaptor, clamping core, and quick installation guide. Unpack carefully and handle the equipment with care. Camera DC power adaptor Lens Terminal block Power adaptor jack... -
Page 6: Part Names
3. PART NAMES 3.1. Rear View ④ ③ ⑤ ② ⑥ ① ⑦ ⑨ ⑧ 3.2. Side View ⑩ www.rivatech.de... -
Page 7: Front View
3.3. Front View ⑪ 1. Power Adaptor Connect 4.3. Connecting The camera requires DC 12V for power supply. Refer to the section “ Cables ” for more specific information 2. PAL/NTSC button Press the PAL/NTSC button to set video output as PAL or NTSC. The default is no video output. - Page 8 5. Reset Button Use the reset button to restart or reset the camera back to factory default settings. Refer to the section “Fehler! Verweisquelle konnte nicht gefunden werden.” for more pecific information. 6. RS-485 Termination Switch (120ohm) Select ON or OFF for RS-485 termination register. The default is off. 7.
-
Page 9: Installation
4.INSTALLATION 4.1. Installing a Lens High definition (HD) lenses are recommended on the camera to utilize the full resolution of a megapixel camera. Installing a standard definition (SD) lens to a megapixel camera may exacerbate camera noises and possibly introduce traditional edge effects. -
Page 10: Installing The Mounting Adaptor
DC Auto Iris Lens Damp- Damp+ Drive+_ 4 pin connector Drive- 3. Manually adjust the zoom and focus of the image with the zoom lever and focus lever on the lens mount. (Refer to the manual provided with your lens.) 4.2. -
Page 11: Connecting Cables
4.3. Connecting Cables Connect the camera to the network and power by using a LAN cable (not supplied) and DC power adopter (supplied). Network Connection Use the Ethernet cable (RJ45) to connect the device to a hub or router in the network. When the LAN cable is connected, the orange LED light will become solid and green LED will blink every 250 millisecond. - Page 12 Analog Video Out Connection Use a 75 ohm video coaxial cable to connect to a monitor’s analog video output and check the camera’s connection and its image focus at the installation site. Be sure to press the output configuration button (PAL/NTSC button), located on the left side of the reset button to see the video.
- Page 13 N / A N / A N / A N / A VIDEO AUDIO DC12V ETHERNET MICRO SD Amp Speaker Sensor Input (D/I) The camera provides 1 channel D/I. It can be connected to either a voltage type sensor or relay type sensor as the following figures. Settings can be done through the camera’s configuration webpage.
- Page 14 Only the relay type is supported. Relay Rating: Max 24VDC 50mA Do not exceed the maximum relay rating. Caution Internal Device Relay Type RS-485 Connection The RS-485 serial port consists of TRX+(RX+) and TRX-(RX-) as following. <RS-485 Application> TRX+(RX+) TRX-(RX-) RS-485 Device PTZ Device www.rivatech.de...
-
Page 15: Setting The Image Attribute
The menu of image attribute are available under Video Appearance menu in Setup > Video & Audio > Camera. The following features can be adjusted: Brightness Contrast Saturation Orientation For more detailed information, refer to the provided ‘RIVA Web Interface Manual’. www.rivatech.de... -
Page 16: Configuration
5.CONFIGURATION 5.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on a same area network before running the installation. -
Page 17: Custom Ip Environment
3. Web streaming and device configurations are supported through ActiveX program. When the ActiveX installation window appears, authorize and install the ActiveX. 5.1.2. Custom IP Environment IPAdminTool and the manual are provided on USB stick or can download from homepage. www.rivatech.de IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network... - Page 18 Give new unique IP address in PC environment Info last two sets and mirror other information in other boxes 3. In the IP Setup’s window, information under ‘Local Network information’ displays the user/PC’s network area information. Those information need to be incorporated to the IP Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP Address, which are to be the unique numbers for the device.
-
Page 19: View Video On Web Page
5.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. root / pass The default username and password is The browser asks to install the ActiveX. Click Allow. 2. Setup.exe installation link or pop-up window appears, depends on Microsoft® Internet Explorer version. - Page 20 3. Follow the instructions of the dialog boxes and complete the installation. Once the installation is complete, start the web browser again and check if video stream is displayed in the main view frame. This software requires the Microsoft XML Parser V6 or higher. If “...
-
Page 21: View Video Using Ipadmin Tool
5.2.1. View video using IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. IPAdminTool is provided on USB stick or can download from homepage. www.rivatech.de 1. From the IPAdminTool’s product list, select the device by highlighting it. 2. -
Page 22: Reset
5.3. Reset 1. Push the Reset button and hold for 1~2 seconds. 2. Wait for the system to reboot. 5.4. Factory Default If you reset your device to the factory default setting, all parameters including the IP address will be initialized. To proceed back to the Factory Default reset: 1. -
Page 23: More Information
The factory default settings can be inferred as follows: IP address: 192.168.xx.yy Network mask: 255.255.0.0 Gateway: 192.168.0.1 User ID: root Password: pass More Information To learn more about using other features of your devices, refer to the manuals as “Web Interface Manual” or “VCAsys_Online_Help”, which is available on USB stick or on homepage. -
Page 24: Appendix (A): Specifications
APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/2.7” 1080p CMOS Effective Pixels 1920 x 1080 (HD 1080p, 2M) Scanning system Progressive Scan Color: 0.5 lux, F1.2 Min. Illumination BW: 0.001 lux, F1.2 (Sens-up 32X) AGC Control Auto Lens (Optional) 3.1~8 mm, F1.2, Auto Iris Day &... -
Page 25: Electrical Characteristics
Electrical Characteristics Power Source DC 12V / PoE IEEE802.3af compliant(Class 0) Video Output 1 Vp-p, 75Ω, Composite Audio Input Linein, 1.43Vp-p(Min 1.35Vp-p, max 1.49 Vp-p), 39 KΩ Audio Output Lineout, 46mW Power, 16 Ω Max 50mA@5VDC, 1.5V threshold Max 50mA@24VDC On-state resistance: 50 Ω... -
Page 26: Appendix (B): Power Over Ethernet
APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over- Ethernet (PoE) standard. The IEEE 802.3af-2003 standard allows up to 15.4 W power to device. However, 12.95W is the maximum available power, as some power gets lost in the cable. -
Page 27: Appendix (C): Dimensions
APPENDIX (C): DIMENSIONS UNIT: mm www.rivatech.de... -
Page 28: Appendix (D): Hexadecimal-Decimal Conversion Table
APPENDIX (D): HEXADECIMAL- DECIMAL CONVERSION TABLE Refer to the following table when converting the MAC address of the device to the IP address. www.rivatech.de... -
Page 29: Revision History
REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.01 03/30/2012 Created 01A.02 04/24/2012 Overall modification and device function verification 01A.03 05/03/2012 Configuration update 01A.04 06/25/2012 DI/DO specification correction 01A.05 07/03/2012 Supporting protocol revised. (removed SOCK and SSH) www.rivatech.de...
