Riva RC1202HD-5241 Quick Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

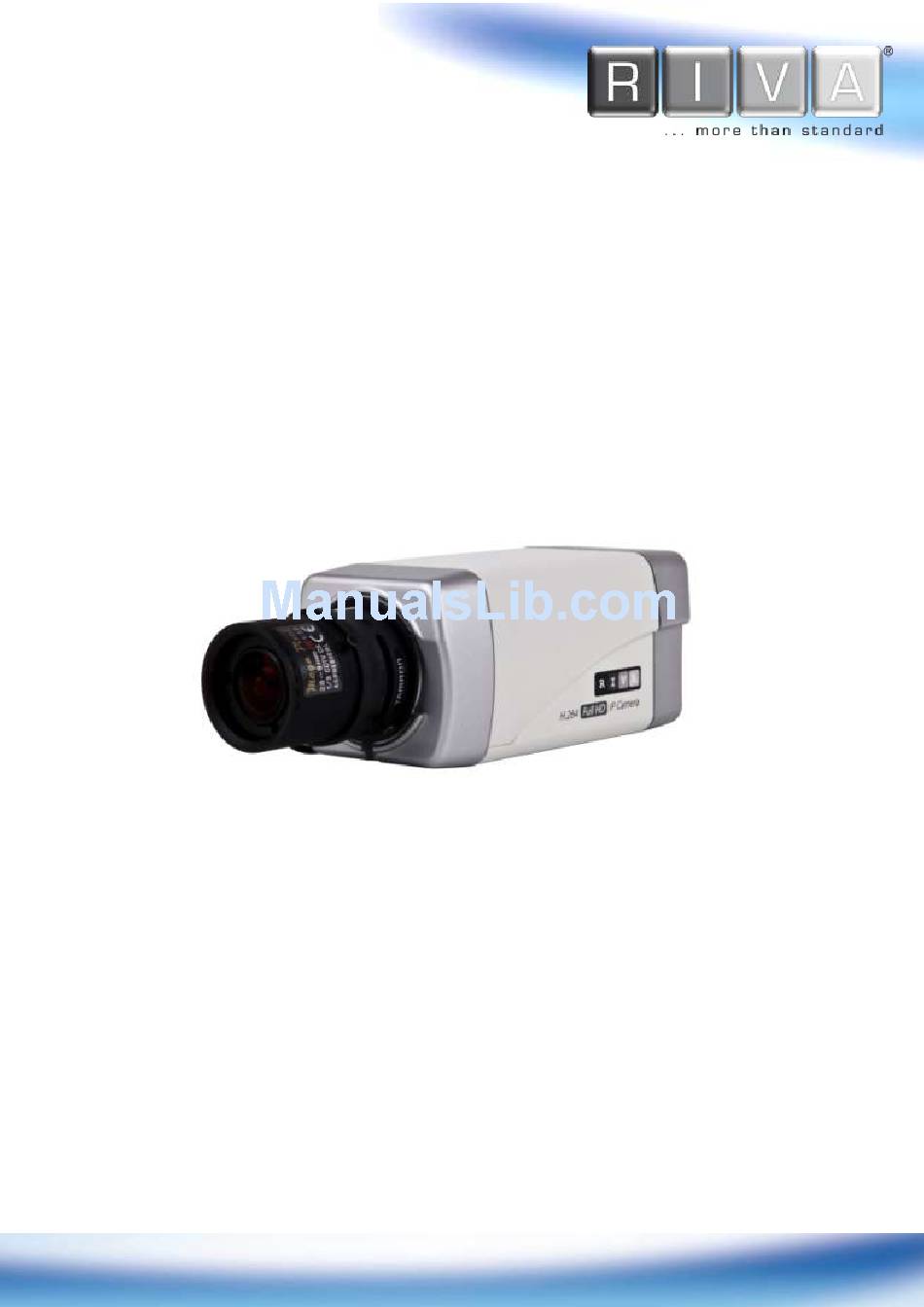

Quick Installation Guide
This manual has been designed to guide you through basic installation, configuration and the
webpage access settings of the device.
www.rivatech.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC1202HD-5241 and is the answer not in the manual?

Questions and answers

Related Manuals for Riva RC1202HD-5241

Summary of Contents for Riva RC1202HD-5241

  • Page 1 Quick Installation Guide This manual has been designed to guide you through basic installation, configuration and the webpage access settings of the device. www.rivatech.de...

  • Page 2: Step1. Install The Lens

    Step1. Install the lens 1. Place the lens mount to the camera and tighten the mount by turning clockwise. 2. Connect the lens cable to the 4-pin auto iris connector on the side of the Auto Iris Lens Connector Light Sensor camera.

  • Page 3: Step2. Connect Cables

    Step2. Connect cables Connect proper cables to the device. To see the correct positions of all connectors, refer to the following image below. www.rivatech.de...
  • Page 4 Model design and appearance are subject to change without any prior notice. BNC Video Out Reset PAL/NTSC Button Button* RS-485 Termination Switch (120ohm) Power DC 12V Network/POE Port * Pressing the button cycles through PAL, NTSC, and no No video video output mode: output ->...

  • Page 5: Step3. Set Up Network Environment

    Step3. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on a same area network before running the installation.

  • Page 6: Custom Ip Environment

    Custom IP Environment IPAdminTool and the manual are provided on USB stick or can download from www.rivatech.de homepage. IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations.
  • Page 7 Give new unique IP address in last two sets and mirror other PC environment Info information in other boxes In the IP Setup’s window, information under ‘Local Network information’ displays the user/PC’s network area information. Those information need to be incorporated to the IP Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP Address, which are to be the unique numbers for the device.

  • Page 8: Step5. View Video On Web Page

    Step5. View video on web page Once the device has the proper IP address, users can view the live streaming images through a web browser. root / pass The default username and password is When the device’s web address is accessed, the browser asks to install the ActiveX. Click Allow.

  • Page 9: Resetting To The Factory Default Settings

    3. Follow the instructions of the dialog boxes and complete the installation. Once the installation is complete, start the web browser again and check if video stream is displayed in the main view frame. This software requires the Microsoft XML Parser V6 or If “...

  • Page 10: Hexadecimal-Decimal Conversion Table

    Hexadecimal-Decimal Conversion Table Refer to the following table when you convert the MAC address of your device to IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec DE 222 6F 111 94 148 4A 74 B9 185 25 37...
