Installation Manual
Quick Start Guide
This manual provides the instructions on the quick installation and the basic configuration commonly for an IP
camera with a regular fisheye lens and with a panomorph lens.
1. Connect cables to IP device
Connect required cables to the device including the power cable, LAN cable, and other optional cables.

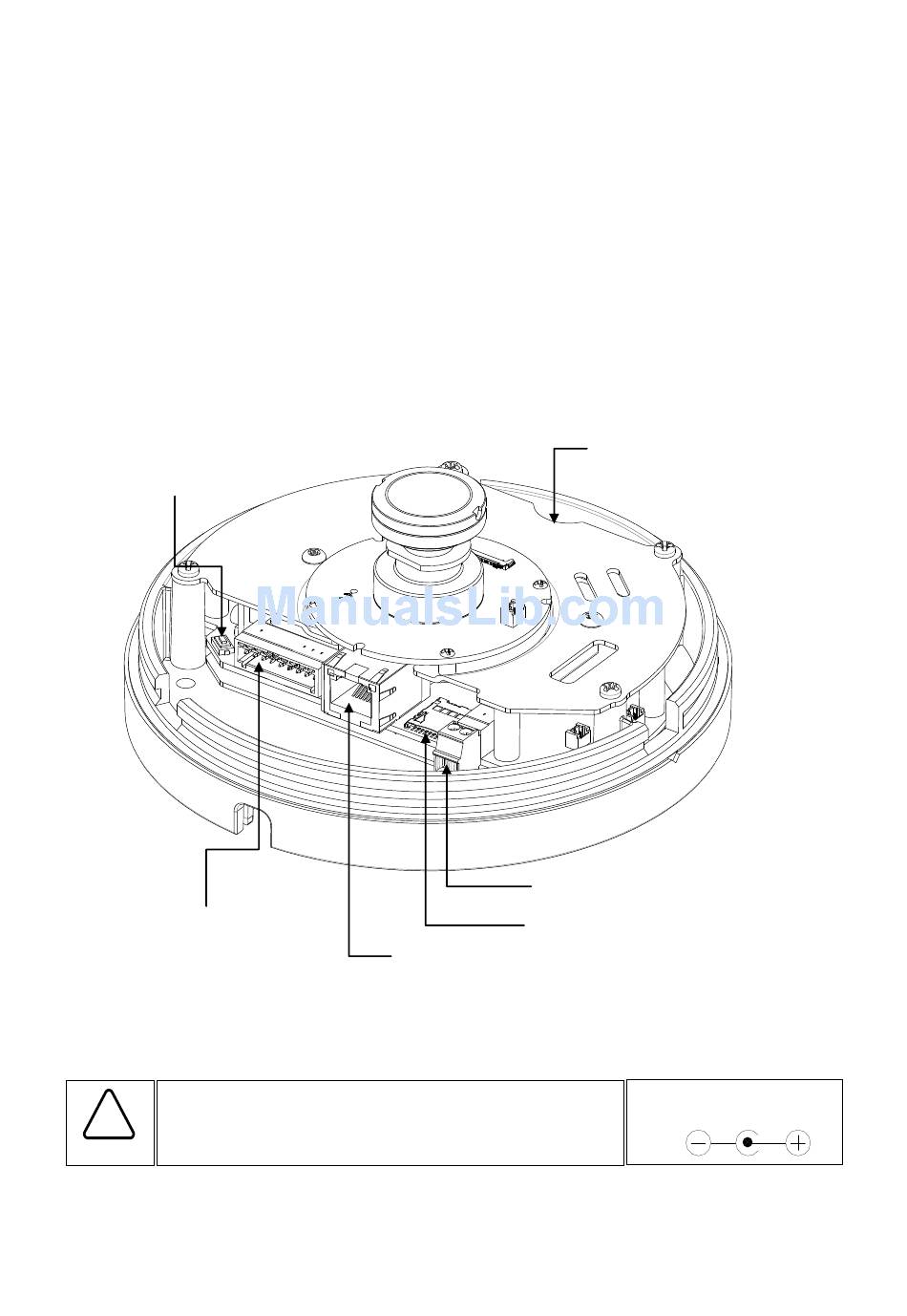

To see the correct positions of all connectors, refer to the following image below.
PAL/NTSC Button
Terminal Connector
The device is polarity sensitive. Incorrect power connection
!
may cause malfunction or damage to the IP device.
Caution
RC210309-2014-A
* The model design is subject to change without any prior notice.
Power Adaptor Connector
microSD/SDHC Slot
LAN Connector
1
Reset Button
(Located under the plate)
Power Adaptor Connector
(DC 12V)
Advertisement
Table of Contents
Related Manuals for Riva RC2103HD-6611
Summary of Contents for Riva RC2103HD-6611
-
Page 1: Quick Start Guide
Quick Start Guide This manual provides the instructions on the quick installation and the basic configuration commonly for an IP camera with a regular fisheye lens and with a panomorph lens. 1. Connect cables to IP device Connect required cables to the device including the power cable, LAN cable, and other optional cables. To see the correct positions of all connectors, refer to the following image below. -
Page 2: Semi-Flush Mount
2. Install IP device There are only two mounting types explained in this manual. Refer to the device’s installation guide for more various mounting types. Semi-Flush Mount 1) Place the installation template included in the package on the desired installation surface. 2) Drill holes on the correct spots based on the template paper, and insert the anchor blocks into the holes. -
Page 3: Flush Mount
Flush Mount 1) Place the installation template included in the package on the desired installation surface. 2) Drill holes on the correct spots based on the template paper, and insert the anchor blocks into the holes. 3) Open the dome cover. *Refer to the caution below for the details about how to open the cover. -
Page 4: Set Up Network Environment
3. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. Be sure that the device and PC are on a same area network before running the installation. - Page 5 Give new unique IP address in last two sets and mirror other PC environment Info information in other boxes 3. In the IP Setup’s window, information under Local Network information displays the user/PC’s network area information. Those information need to be incorporated to the IP Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP Address, which are to be the unique numbers for the device.
-
Page 6: Login To Webpage
When modifying the IP address, be advised to have the correct Subnet mask and Gateway ready. More Information To learn more about using other features of your devices, refer to the manuals as “RIVA Web Interface Manual Full HD Series” or “VCAsys User Manual (Online Help)”, which is available on www.rivatech.de... - Page 7 The factory default settings can be inferred as follows: IP address: 192.168.xx.yy Network mask: 255.255.0.0 Gateway: 192.168.0.1 Note User ID: root Password: pass 7. Safe Mode Your device will get restarted with safe mode when the device does not completely boot certain times. The errors are mainly caused by these two factors: power source unplugged or damage occurred on firmware file during the system boot.
-
Page 8: Hexadecimal-Decimal Conversion Table
Hexadecimal-Decimal Conversion Table Refer to the following table when converting the MAC address of your device to IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec RC210309-2014-A...
