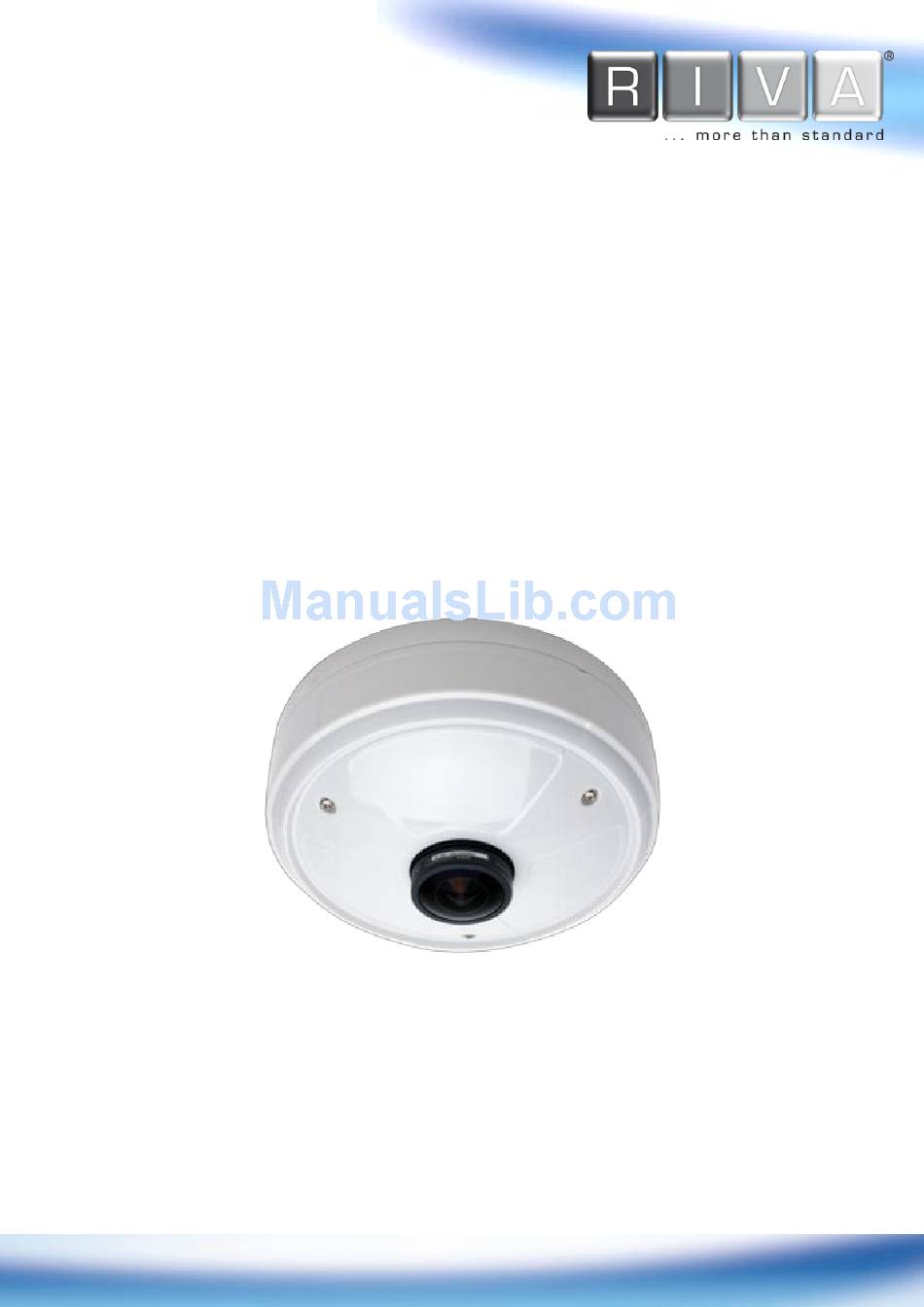

Page 1: Installation Guide
RC2103HD-6611 Installation Guide www.rivatech.de Specification subject to change without notice... -
Page 2: Precaution
Precaution Please read this manual carefully before installing the unit. Never disassemble the camera. Unauthorized disassembly may cause equipment failure or damage to the unit. Please do not install the camera in a place exposed to direct sunlight. ... -
Page 3: Table Of Contents
HD Series RC2103HD-6611 Installation Guide Table of Contents Precaution ........................ 2 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 3. PART NAMES ......................6 4. INSTALLATION ...................... 7 4.1. Installing the camera ......................7 4.1.1. Semi-Flush Mount ....................... 7 4.1.2. Flush Mount ........................ 9 4.1.3. -
Page 4: Features
HD Series RC2103HD-6611 Installation Guide 1. FEATURES Camera 1/2.5” 5 Megapixel CMOS Image Sensor Wide view (182 °) angle 1.12mm, F2.0 Certified ImmerVision Enables Panomorph Lens Digital Day/Night Digital WDR Video H.264 Baseline, Main, High profile(MPEG-4 Part 10/AVC), MJPEG(Motion JPEG) ... -
Page 5: Package Contents
HD Series RC2103HD-6611 Installation Guide 2. PACKAGE CONTENTS Please unpack the package carefully and handle the equipment with care. The package contains: Camera DC Power Adaptor Universal Plugs Quick Installation Guide Terminal Blocks FMB mount (for flush mount) Screws and Anchor Blocks... -
Page 6: Part Names
HD Series RC2103HD-6611 Installation Guide 3. PART NAMES ② ① *The reset button is located under this plate. ⑤ ③ ④ ⑥ * Models and their appearance are subject to change without any prior notice. ① Reset Button 6.3. Reboot This button will restart the device or reset it to factory default settings. -
Page 7: Installation
HD Series RC2103HD-6611 Installation Guide 4. INSTALLATION 4.1. Installing the camera 4.1.1. Semi-Flush Mount Installation Template (Unit: mm) Installation template’s image size scale in this installation guide is not 1:1. The correct-size template design paper can be found inside the package separately. - Page 8 HD Series RC2103HD-6611 Installation Guide 1) Place the installation template included in the package on the desired installation surface. 2) Drill holes on the correct spots based on the template paper, and insert the anchor blocks into the holes. 3) Open the dome cover.
-
Page 9: Flush Mount
HD Series RC2103HD-6611 Installation Guide 4.1.2. Flush Mount Installation template (FMB) 21 V1.0 (Unit: mm) Installation template’s image size scale in this installation guide is not 1:1. The correct-size template design paper can be found inside the package separately. Caution 01-2015-A www.rivatech.de... - Page 10 HD Series RC2103HD-6611 Installation Guide 1) Place the installation template included in the package on the desired installation surface. 2) Drill holes on the correct spots based on the template paper, and insert the anchor blocks into the holes. 3) Open the dome cover.
-
Page 11: Compatible Accessories
HD Series RC2103HD-6611 Installation Guide 4.1.3. Compatible Accessories The various combinations of the compatible accessories to mount this camera model are as follows. Model Names & Combinations WMB-3000 + (CMA-U100 or PMA-U100) WMB-3000P + PMC-3000 + (JBK-U100) + (CMA-U100 or PMA-U100) -
Page 12: Setting The Image Attributes
Video Appearance via the path, Setup > Video & Audio > Camera. The following features can be adjusted: Brightness, Contrast, Saturation, and Sharpness. For more detailed information, refer to the provided “RIVA Web Interface Manual Full HD Line”. -
Page 13: Connections
HD Series RC2103HD-6611 Installation Guide N / A N / A 5. CONNECTIONS N / A N / A VIDEO AUDIO DC12V ETHERNET MICRO SD ⑥ N / A N / A ① Audio connection The camera provides a mono audio input and output. - Page 14 HD Series RC2103HD-6611 Installation Guide ② Sensor (DI) connection Sensor (DI) can be connected to either a voltage type sensor or a relay type sensor like the following figures. Settings can be done through the camera's webpage. Input voltage range: 0VDC minimum to 5VDC maximum, Max 50mA Do not exceed the maximum input voltage or relay rate.
- Page 15 HD Series RC2103HD-6611 Installation Guide ④ Analog Video Out Connection Use 75 ohm video coaxial cable to connect to a monitor's analog video input and check the camera's connection and its image focus at the installation site. Be sure to press the output configuration button (PAL/NTSC button) to see the video (Refer to 3.
- Page 16 HD Series RC2103HD-6611 Installation Guide ⑥ Power Connection The camera can be powered from either 12VDC or PoE. If the camera is powered via PoE, refer to Appendix (B). Power over Ethernet for more details. To operate your camera using 12VDC, make sure the polarity is correct before connecting the power cable.
-
Page 17: Configuration
HD Series RC2103HD-6611 Installation Guide 6. CONFIGURATION 6.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. -
Page 18: Custom Ip Environment
HD Series RC2103HD-6611 Installation Guide Custom IP Environment IPAdminTool and the manual can download from www.rivatech.de homepage. IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. -
Page 19: View Video On Web Page
Internet Explorer 9 environment. Note More Information To learn more about using other features of your devices, refer to the manuals as “RIVA Web Interface Manual Full HD Series” or “VCAsys User Manual (Online Help)”, which is available on www.rivatech.de homepage. -
Page 20: View Video Using Ipadmin Tool
HD Series RC2103HD-6611 Installation Guide 6.2.2. View video using IPAdmin Tool 1. From the IPAdminTool’s product list, select the device by highlighting it. 2. Right-click the mouse and select Web View. 3. The system’s default web browser opens the device’s address. -
Page 21: Reboot
HD Series RC2103HD-6611 Installation Guide 6.2. Reboot Perform the following procedures to reset your device: Press the reset button for 2 seconds while the device is in use. Wait for the system to reboot. Please do not hold the reset button for more than 2 seconds. Otherwise, the camera may be switched to its factory default settings. - Page 22 HD Series RC2103HD-6611 Installation Guide How to recover your system from Safe Mode Browse The messages above will appear on the webpage when your device has been rebooted in ‘safe mode’. Then, you should follow the instructions on the webpage according to each step.
-
Page 23: Appendix (A): Specifications
HD Series RC2103HD-6611 Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/2.5” 5Megapixel CMOS CMOS Effective Pixels 2048x1536 Scanning system Progressive scanning Resolution 2048x1536, 1920 x 1080 Min. Color: 1.0 lux, F2.0 ELECTRICAL Illumination BW: 0.001 Lux (DSS ON) -
Page 24: Electrical Characteristics
HD Series RC2103HD-6611 Installation Guide SSLv2/v3, TLSv1 1 x microSD memory card slot (SD/SDHC up to 32GB supported) SD Slot ※ card not included (Class 4 and higher recommended for HD recordings) Electrical Characteristics Power Source DC 12V / PoE IEEE802.3af (Class 0) Power Consumption 3.96W @ DC12V... -
Page 25: Appendix (B): Power Over Ethernet
HD Series RC2103HD-6611 Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. -
Page 26: Appendix (C): Dimensions
HD Series RC2103HD-6611 Installation Guide APPENDIX (C): DIMENSIONS Semi-Flush Mount (Unit: mm) 01-2015-A www.rivatech.de... - Page 27 HD Series RC2103HD-6611 Installation Guide Flush Mount (Unit: mm) 01-2015-A www.rivatech.de...
-
Page 28: Appendix (D): Hexadecimal-Decimal Conversion Table
HD Series RC2103HD-6611 Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. 01-2015-A www.rivatech.de... -
Page 29: Revision History
HD Series RC2103HD-6611 Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 05-2014-A 05/12/2014 First release version 07-2014-A 07/16/2014 Revised the value in minimum illumination(p.38) 08-2014-A 08/18/2014 Update according to FW V1.8.0.4 10-2014-A 10/07/2014 Addition of new brackets(P.12 – P.26) 11-2014-A 11/19/2014 specification for SD/SDHC modified (P.7 &...
