Metra Electronics 99-6507 Installation Instructions Manual

Chrysler/dodge/jeep (without nav) 2005-2010
Hide thumbs Also See for 99-6507:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction and Installation Manual

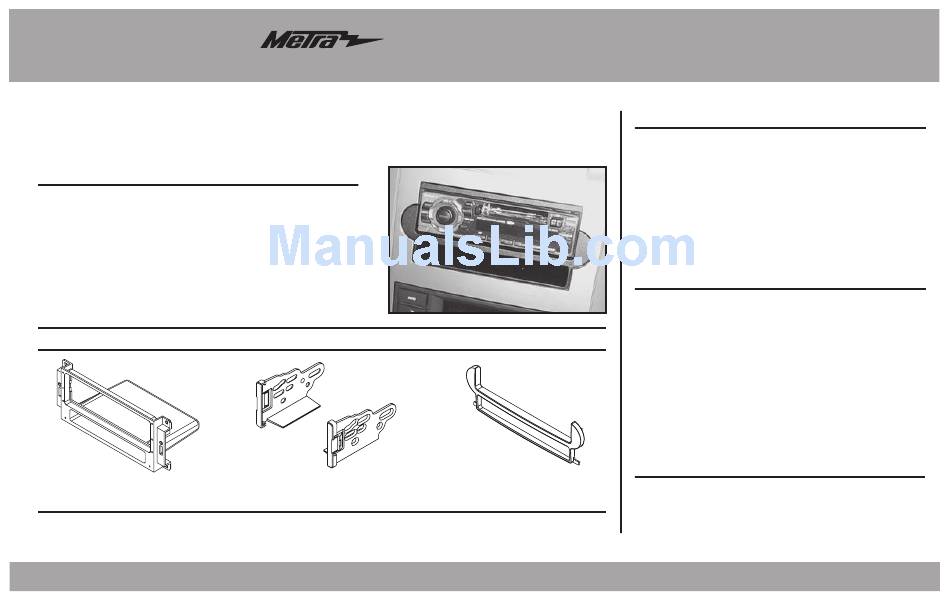

Installation instructions for part 99-6507
Chrysler/Dodge/Jeep (without NAV) 2005-2010
KIT FEATURES
• DIN radio provision with pocket
• ISO DIN radio provision with pocket

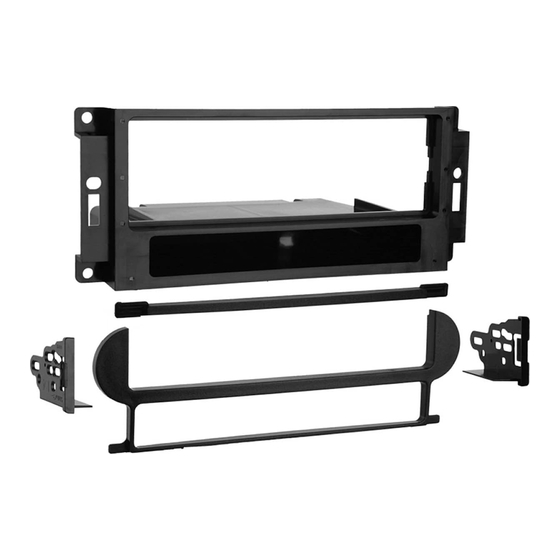

KIT COMPONENTS
• A) Radio housing • B) ISO snap-in brackets • C) Trim plates (upper and lower)
A
METRA - The World's best kits
®
99-6507
B
APPLICATIONS
See application list inside cover
®
C
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• CHTO-01 - For models with a factory amp
• XSVI-6502-NAV - For models without a factory amp
Antenna Adapter:
• 40-CR10
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Socket wrench
CAUTION!
All accessories, switches, climate controls panels, and
especially air bag indicator lights must be connected before cycling
the ignition. Also, do not remove the factory radio with the key in the
on position, or while the vehicle is running.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 99-6507 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Metra Electronics 99-6507

Summary of Contents for Metra Electronics 99-6507

  • Page 1 ® Installation instructions for part 99-6507 Chrysler/Dodge/Jeep (without NAV) 2005-2010 WIRING & ANTENNA CONNECTIONS (sold separately) 99-6507 Wiring Harness: • CHTO-01 - For models with a factory amp KIT FEATURES • XSVI-6502-NAV - For models without a factory amp • DIN radio provision with pocket Antenna Adapter: •...

  • Page 2: Table Of Contents

    ® 99-6507 Applications Table of Contents Chrysler Compass ........2007-2008 Dash Disassembly - Chrysler 300 2005-2007 ....................4 300 ..........2005-2007 Grand Cherokee ......2005-2007 - Chrysler Aspen 2007 ......................3 Aspen ............2007 Patriot..........2007-2008 - Chrysler PT Cruiser 2006-2010 ..................8 PT Cruiser ........

  • Page 3: Chrysler Aspen 2007

    ® Dash Disassembly 99-6507 Chrysler Aspen 2007, Dodge Dodge Charger 2006-2007 / Dakota 2005-2007/Durango 2004-2007 Magnum 2005-2007 1. Remove (2) 7mm screws from the 1. Unclip and remove entire inside of the pocket facing upward. panel surrounding radio (Figure A) and climate controls, including A/C vents.

  • Page 4: Chrysler 300 2005-2007

    ® Dash Disassembly 99-6507 Chrysler 300 Dodge Ram 1500 2006-2008, 2005-2007 2500/3500 2006-2009, Chassis Cab 2008-2010 (without center console) 1. Unclip and remove entire panel surrounding radio and climate 1. Open cup holder and remove (2) controls, including A/C vents and Phillips screws facing up on front clock.

  • Page 5: Dodge Ram: 1500 2006-2008, 2500/3500 2006-2009, Chassis Cab 2008-2010 (With Mini Center Console)

    ® Dash Disassembly 99-6507 Dodge Ram 1500 2006-2008, 2500/3500 2006-2009, Chassis Cab 2008-2010 (with mini center console) 1. If vehicle has floor shifter, remove 6. Unclip and remove entire panel center console to the floor panel. shifter knob. Then remove center...

  • Page 6: Dodge Ram: 1500 2006-2008, 2500/3500 2006-2009, Chassis Cab 2008-2010 (With Full Center Console)

    ® Dash Disassembly 99-6507 Dodge Ram 1500 2006-2008, 2500/3500 2006-2009, Chassis Cab 2008-2010 (with full center console) 1. If vehicle has floor shifter, remove shifter knob. 4. Loosen (2) 8mm screws at bottom of dash. Unsnap and climate controls, including A/C vents.

  • Page 7: Dodge Caliber 2007-2008

    ® Dash Disassembly 99-6507 Dodge Caliber 2007-2008, Jeep Grand Jeep Compass/Patriot 2007-2008 Cherokee 2005-2007 1. Unsnap and move shifter trim to 4. Remove (4) Phillips screws holding 1. Unsnap and remove panel from the side. (Figure A) climate control panel to backside around radio including the vent on of the center dash panel.

  • Page 8: Chrysler Pt Cruiser 2006-2010

    ® Dash Disassembly 99-6507 Jeep Commander Chrysler PT Cruiser 2006-2007 2006-2010 1. Remove the (16) screws securing 1. Remove (2) screws from inside the radio trim panel. (Figure A) air vents on center dash panel. (Figure A) 2. Unclip and remove the entire radio trim panel.

  • Page 9: Mitsubishi Raider 2006-2007

    ® Dash Disassembly 99-6507 Mitsubishi Raider Notes 2006-2007 1. Unsnap and remove center dash panel. (Figure A) 2. Remove (4) 7mm screws securing radio. Unplug and remove radio. Continue to kit assembly (Figure A)

  • Page 10: Kit Assembly

    ® Kit Assembly 99-6507 DIN radio provision with pocket 1. Remove the metal DIN sleeve and trim ring from 3. Slide the radio into the sleeve until it clicks in. 5. Locate the factory wiring harness in the dash. the aftermarket radio.

  • Page 11: Iso Din Radio Provision With Pocket

    ® Kit Assembly 99-6507 ISO DIN radio provision with pocket 1. Remove the metal DIN sleeve and trim ring from 4. Using the alignment pins on the trim plates & the 5. Locate the factory wiring harness in the dash.
