INSTALLATION INSTRUCTIONS FOR PART 99-6507
Dodge
Caliber 2007
Charger 2005-2007
Dakota 2005-2007
Durango 2004-2007
Magnum 2005-2007
Ram 2006-2007
Mitsubishi
Raider 2006-2007
99-6507
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO DIN Radio Provision with Pocket
KIT COMPONENTS

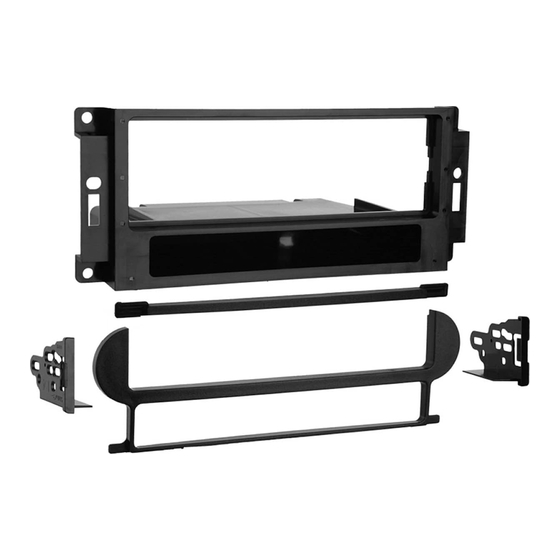

A) Radio Housing
I
B) ISO Snap-In Brackets
A
Phillips Screwdriver
1-800-221-0932
© COPYRIGHT 2004 METRA ELECTRONICS CORPORATION
APPLICATIONS
Chrysler
300 2005-2007
Aspen 2007
PT Cruiser 2006-2007
Jeep
Commander 2006-2007
Compass 2007
Grand Cherokee 2005-2007
Patriot 2007
I
C) Trim Plates (upper & lower)
B
TOOLS REQUIRED:
• Socket Wrench •
Small Flat Blade Screwdriver or
Panel Removal Tool
www.metraonline.com
Upper Trim Plate
C
Lower Trim Plate

Advertisement

Table of Contents
loading

Related Manuals for Metra Electronics 99-6507

Summary of Contents for Metra Electronics 99-6507

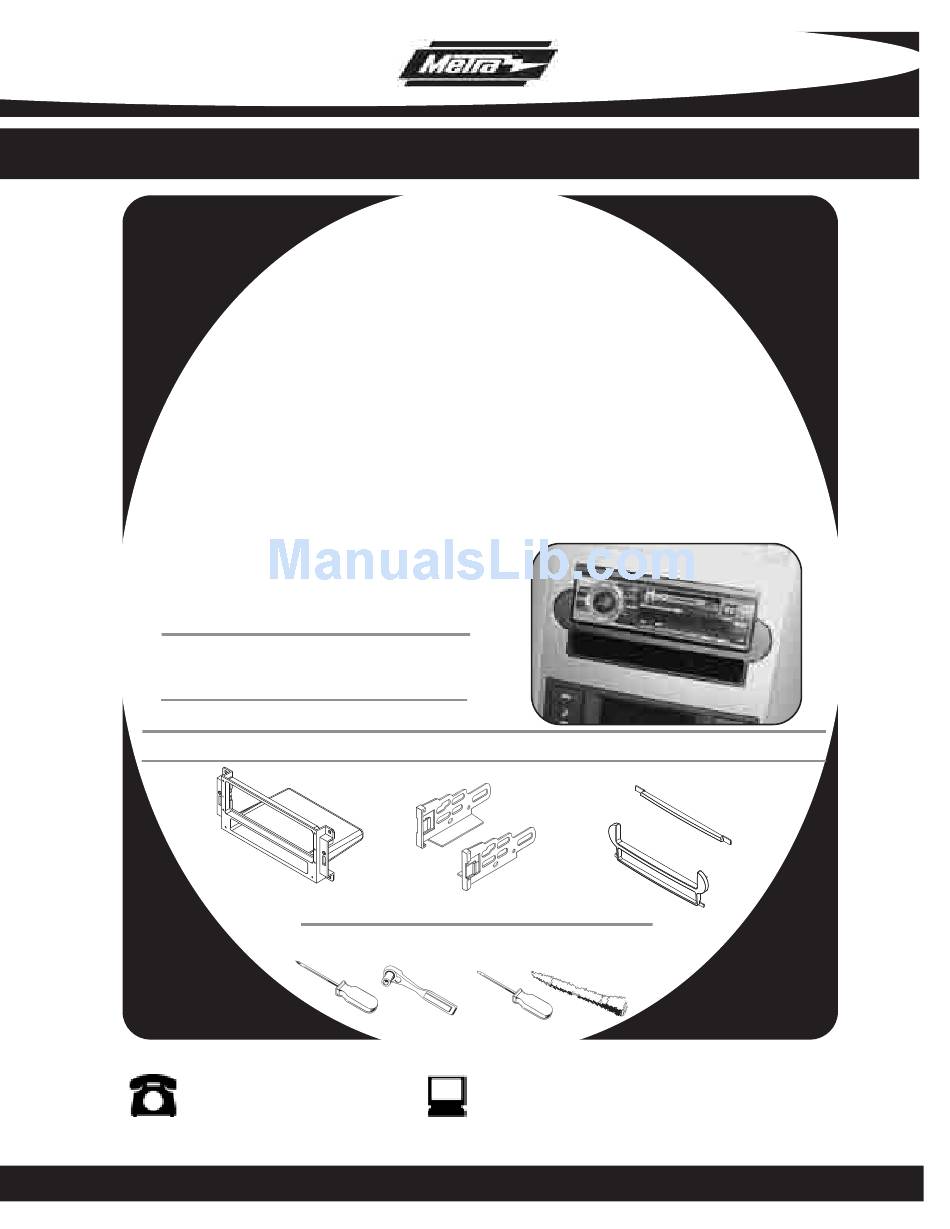

  • Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-6507 APPLICATIONS Chrysler Dodge 300 2005-2007 Caliber 2007 Aspen 2007 Charger 2005-2007 PT Cruiser 2006-2007 Dakota 2005-2007 Jeep Durango 2004-2007 Commander 2006-2007 Magnum 2005-2007 Compass 2007 Ram 2006-2007 Grand Cherokee 2005-2007 Mitsubishi Raider 2006-2007 Patriot 2007...

  • Page 2: Table Of Contents

    99-6507 T ABLE OF CONTENTS Dash Disassembly - Chrysler Aspen 2007 ......1 - Dodge Dakota 2005-2007 .

  • Page 3: Dash Disassembly

    99-6507 DASH DISASSEMBL Y CHRYSLER ASPEN 2007 DODGE DAKOTA 2005-2007 DODGE DURANGO 2004-2007 Disconnect the negative battery terminal to prevent an accidental short circuit. Remove (2) 7MM screws from the inside of the pocket facing upward. (Figure A) Unclip and remove the entire trim panel surrounding the radio and climate controls.

  • Page 4: Dodge Charger 2005-2007

    99-6507 DASH DISASSEMBL Y DODGE CHARGER 2005-2007 DODGE MAGNUM 2005-2007 Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove entire panel surrounding radio and climate controls, including a/c vents. (Figure A) Remove (4) 7MM screws securing radio.

  • Page 5: Chrysler 300 2005-2007

    99-6507 DASH DISASSEMBL Y CHRYSLER 300 2005-2007 Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove entire panel surround- ing radio and climate controls, including a/c vents and clock. (Figure A) Remove (4) 7MM screws securing radio.

  • Page 6: Dodge Ram 2006-2007 (Without Center Console)

    99-6507 DASH DISASSEMBL Y DODGE RAM 2006-2007 WITHOUT CENTER CONSOLE Disconnect the negative battery terminal to prevent an accidental short circuit. Open cup holder and remove (2) Phillips screws facing up on front edge of radio/climate control panel. (Figure A)

  • Page 7: Dodge Ram 2006-2007 (With Mini Center Console)

    99-6507 DASH DISASSEMBL Y DODGE RAM 2006-2007 WITH MINI CENTER CONSOLE Disconnect the negative battery terminal to prevent an accidental short circuit. If vehicle has floor shifter, remove shifter knob. Remove center console inserts, if present. (Figure A) Remove screws securing the rear center console to the floor panel.

  • Page 8: Dodge Ram 2006-2007 (With Full Center Console)

    99-6507 DASH DISASSEMBL Y DODGE RAM 2006-2007 WITH FULL CENTER CONSOLE Disconnect the negative battery terminal to prevent an accidental short circuit. If vehicle has floor shifter, remove shifter knob. Unsnap and remove console front top cover (closest to the dash). (Figure A) Remove two 8 mm screws from under console cover (previously removed).

  • Page 9: Dodge Caliber 2007

    99-6507 DASH DISASSEMBL Y DODGE CALIBER 2007 JEEP COMPASS 2007 JEEP PATRIOT 2007 Disconnect the negative battery terminal to prevent an accidental short circuit. Unsnap and move shifter trim to the side. (Figure A) (Compass and Patriot only) Unspap and remove top center dash panel above AC vents.

  • Page 10: Jeep Grand Cherokee 2005-2007

    99-6507 DASH DISASSEMBL Y JEEP GRAND CHEROKEE 2005-2007 Disconnect the negative battery terminal to prevent an accidental short circuit. Unsnap and remove panel from around radio including the vent on each side. (Figure A) Remove (4) 7MM screws securing radio.

  • Page 11: Jeep Commander 2006-2007

    99-6507 DASH DISASSEMBL Y JEEP COMMANDER 2006-2007 Disconnect the negative battery terminal to prevent an accidental short circuit. Remove the (16) screws securing the radio trim panel. (Figure A) screws screws screws screws Unclip and remove the entire radio trim panel.

  • Page 12: Chrysler Pt Cruiser 2006-2007

    99-6507 DASH DISASSEMBL Y CHRYSLER PT CRUISER 2006-2007 Disconnect the negative battery terminal to prevent an accidental short circuit. Remove (2) screws from inside air vents on center dash panel. (Figure A) Unsnap center dash panel (do not remove until climate controls are removed).

  • Page 13: Mitsubishi Raider 2006-2007

    99-6507 DASH DISASSEMBL Y MITSUBISHI RAIDER 2006-2007 Disconnect the negative battery terminal to prevent an accidental short circuit. Unsnap and remove center dash panel. (Figure A) 3 Remove (4) 7MM screws securing radio. Unplug and remove radio. Continue to kit assembly.

  • Page 14: Kit Assembly

    99-6507 KIT ASSEMBL Y DIN RADIO PROVISION WITH POCKET NOTE: You will need to remove the aftermarket radio’s trim ring if equipped. Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs down. (Figure A) Slide the after-market head unit into the cage and secure.

  • Page 15: Iso Radio Provision With Pocket

    99-6507 KIT ASSEMBL Y ISO RADIO PROVISION WITH POCKET NOTE: You will need to remove the aftermarket radio’s trim ring if equipped. Mount the ISO Brackets to the radio using the screws supplied with the radio. Figure A Slide the radio into the opening until it snaps into place.

  • Page 16: Final Assembly

    99-6507 FINAL ASSEMBL Y FINAL ASSEMBL Y Strip wire ends back 1/2" Twist ends together Solder Tape Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
  • Page 17 99-6507 NOTES...
  • Page 18 99-6507 NOTES...
  • Page 19 99-6507 NOTES...
  • Page 20 99-6507 INSTRUCTIONS 1-800-221-0932 www.metraonline.com REV. 10/04/06 © COPYRIGHT 2004 METRA ELECTRONICS CORPORATION INST99-6507...
