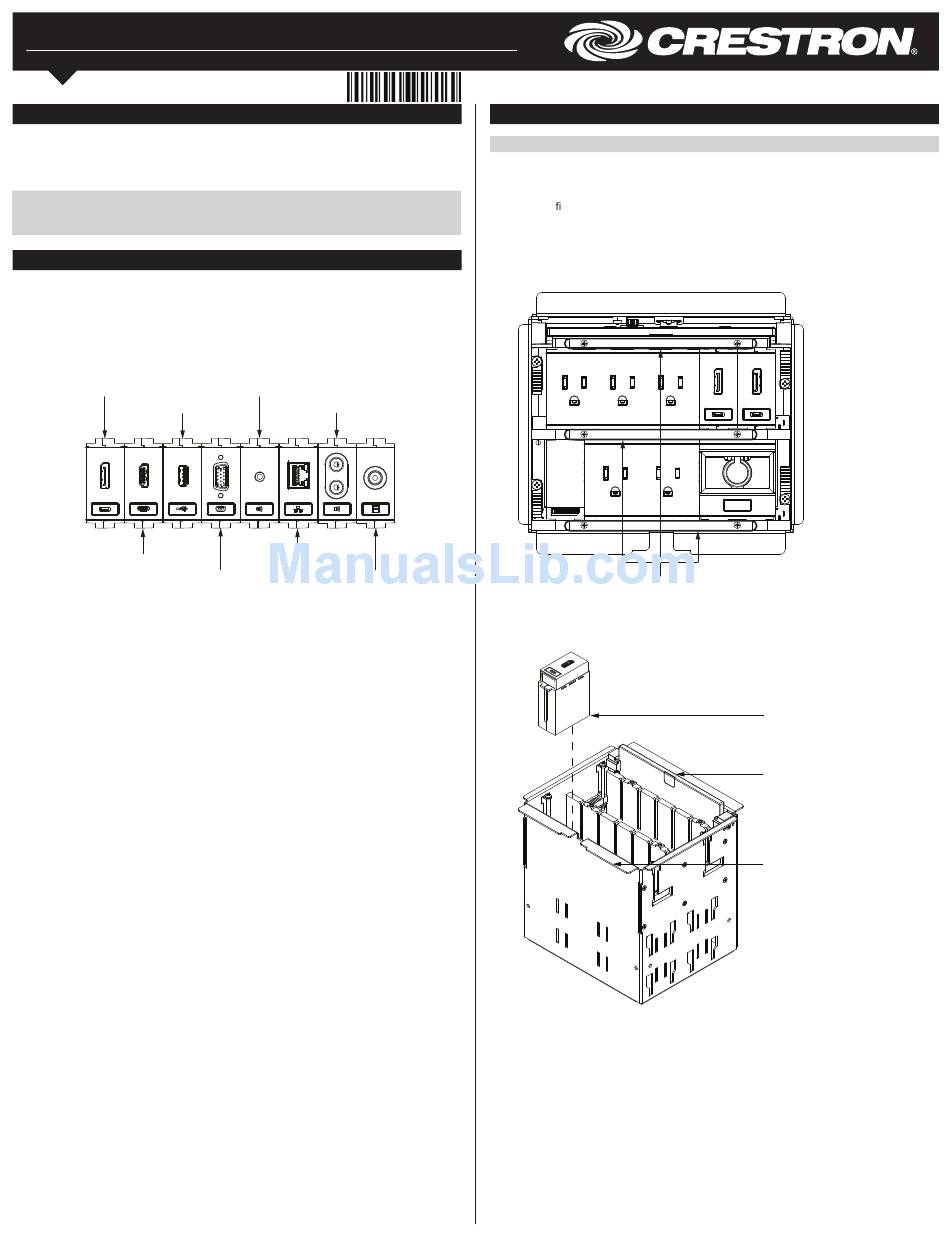

Crestron FT2A-CP-USBA Installation Manual

FT2A-CP Series
Connector Plates for FT2-ELEC Series FlipTops
Installation Guide
Description
The Crestron FT2A-CP series connector plates offer an interface solution for use with
®
the FT2-ELEC series FlipTop™ system. Each connector plate installs in a single module
space within the FlipTop to provide connectivity for AV sources and mobile devices (i.e.,
laptops, tablets, etc.) using separate interface cables (not included).
NOTE: The FT2A-CP series connector plates are active modules and therefore only
compatible with the FT2-ELEC series FlipTops. The modules are not compatible with
the FT2-MECH series FlipTops.
Overview
Crestron offers several models of connector plates, including DisplayPort™ and HDMI
modules that are capable of passing video signals up to 4K60 4:4:4 and have a minimum
bandwidth of 18 Gbps. Additional models support VGA, stereo audio, composite video,
USB, and Ethernet. A backlit LED permits the user to identify and select a connection at
the table. Each LED features an international symbol indicating the connection type and
lights when the module connects to a FlipTop power bus.
FT2A-CP Module Models
FT2A-CP-4K-DP
FT2A-CP-USBA
Port type
LED icon
FT2A-CP-4K-HD
FT2A-CP-VGA
Each FT2A-CP module is 0.98" x 1.97" (25 x 50 mm) and requires one empty module
space in the FlipTop for installation.
TM
FT2A-CP-AUD
FT2A-CP-AUD-RCA2
FT2A-CP-RJ45
FT2A-CP-VID-RCA1
Installation
NOTE: The FT2A-CP module is only compatible with the FT2-ELEC series FlipTops.
Use the following procedure to install the FT2A-CP module into a FlipTop assembly. If the
module is being installed as part of a new FlipTop installation, skip ahead to step 3.
1. Remove the magnetic bezel from the assembly by grasping the inside of the bezel
and by rmly pulling it up and away from the assembly until the magnetic hold is
broken.
2. Unscrew and remove the two locking bars on either side of the module row needed
for installation. For example, if installing the FT2-CP module in the bottom row of a
FlipTop, remove the middle and bottom locking bars.
Locking Bar Location
®
3. Orient the connector plate so that the module's LED icon is facing toward the front
of the FlipTop assembly as shown below.
Positioning the FT2A-CP Module (FT2A-CP-4K-HD shown)
Locking bars (3)
FT2A-CP-4K-HD
Retractable lid
(located in rear
of assembly)
Front of
FlipTop
assembly
