V3.0
ISTRUZIONI PER L'INSTALLAZIONE E LA MANUTENZIONE
INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE
INSTRUCCIONES PARA LA INSTALACIÓN Y EL MANTENIMIENTO
INSTALLATIONS - OCH UNDERHÅLLSANVISNING
INSTRUCTIONS POUR L'INSTALLATION ET LA MAINTENANCE
INSTRUCTIES VOOR INGEBRUIKNAME EN ONDERHOUD
INSTRUCTIUNI DE INSTALARE SI INTRETINERE
INSTALLATIONSANWEISUNG UND WARTUNG
MONTAJ VE BAKIM IÇIN BILGILER
INSTRUÇÕES PARA A INSTALAÇAO
ASENNUS- JA HUOLTO-OHJEET
NAVODILA ZA VGRADNJO IN UPORABO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVOPLUS D 120/220.32 M and is the answer not in the manual?

Questions and answers

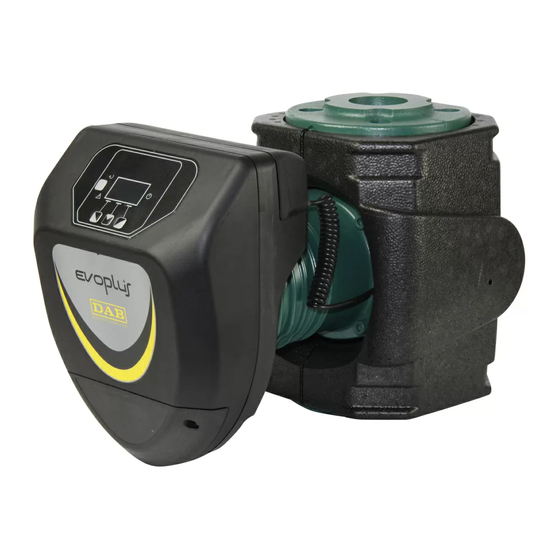

Summary of Contents for DAB EVOPLUS D 120/220.32 M

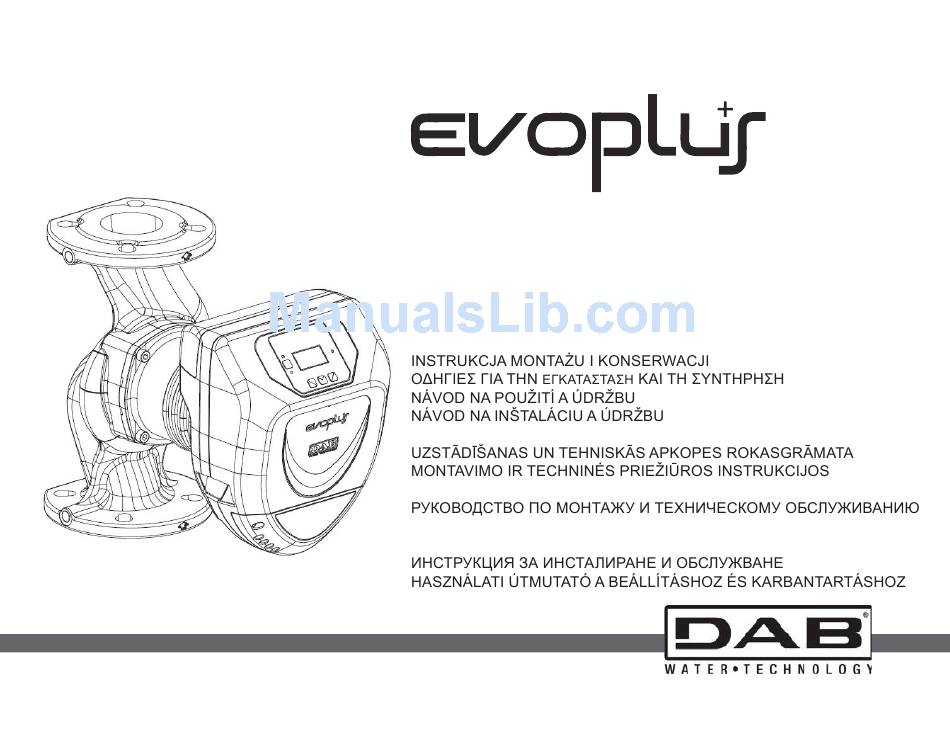

  • Page 1 V3.0 ISTRUZIONI PER L’INSTALLAZIONE E LA MANUTENZIONE INSTRUCTIONS FOR INSTALLATION AND MAINTENANCE INSTRUCCIONES PARA LA INSTALACIÓN Y EL MANTENIMIENTO INSTALLATIONS - OCH UNDERHÅLLSANVISNING INSTRUCTIONS POUR L’INSTALLATION ET LA MAINTENANCE INSTRUCTIES VOOR INGEBRUIKNAME EN ONDERHOUD INSTRUCTIUNI DE INSTALARE SI INTRETINERE INSTALLATIONSANWEISUNG UND WARTUNG MONTAJ VE BAKIM IÇIN BILGILER INSTRUÇÕES PARA A INSTALAÇAO ASENNUS- JA HUOLTO-OHJEET...
  • Page 2 B 120/220.32 M B 120/220.32 SAN M D 120/220.32 M ITALIANO pag. B 40/220.40 M D 40/220.40 M B 60/220.40 M D 60/220.40 M ENGLISH page B 80/220.40 M D 80/220.40 M ESPAÑOL pág B 100/220.40 M D 100/220.40 M B 120/250.40 M B 120/250.40 SAN M D 120/250.40 M...
  • Page 3: Table Of Contents

    ENGLISH INDEX 11.2 Navigation Buttons ..............31 1. Key ....................20 11.3 Warning Lights ............... 31 2. General ..................20 12. Menus .................... 32 2.1 Safety..................20 13. Factory settings ................34 2.2 Responsibility................20 14. TypeS of Alarm ................35 2.3 Particular warnings ..............
  • Page 4 ENGLISH 2. GENERAL Read this documentation carefully before installation. Installation, electrical connection and commissioning must be carried out by specialised personnel, in compliance with the general and local safety regulations in force in the country in which the product is installed. Failure to respect these instructions not only causes risk to personal safety and damage to the equipment, but invalidates every right to assistance under guarantee.
  • Page 5: Particular Warnings

    ENGLISH 2.3 Particular warnings EVOPLUS circulators are self-protected against: - Overloads - Lack of phase Always switch off the mains power supply before working on - Excess temperature the electrical or mechanical part of the system. Wait for the war- ning lights on the control panel to go out before opening the - Over-voltage and under-voltage appliance.
  • Page 6 ENGLISH EVOPLUS Hmax [m] Qmax [m3/h] EVOPLUS Hmax [m] Qmax [m3/h] B 120/220.32 M 12.0 17.01 D 120/220.32 M 12.0 30.62 B 120/220.32 SAN M* B 40/220.40 M 12.18 D 40/220.40 M 21.91 B 60/220.40 M 15.69 D 60/220.40 M 28.24 B 80/220.40 M 18.58...
  • Page 7 ENGLISH B 60/340.65 M 34.47 D 60/340.65 M 62.05 B 60/340.65 SAN M* B 80/340.65 M 38.30 D 80/340.65 M 68.94 B 80/340.65 SAN M* B 100/340.65 M 10.0 41.71 D 100/340.65 M 10.0 75.08 B 100/340.65 SAN M* B 120/340.65 M 12.0 44.63 D 120/340.65 M...
  • Page 8: Electromagnetic Compatibility (Emc)

    ENGLISH 5.1 Electromagnetic Compatibility (EMC) Ensure that the voltage and frequency on the data plate of the EVOPLUS circulators respect standard EN 61800-3, in the C2 category, EVOPLUS circulator are the same as those of the power mains. for electromagnetic compatibility. - Electromagnetic emissions - Industrial environment (in some cases 7.1 Circular Installation and Maintenance restrictive measures may be requested).
  • Page 9: Rotation Of The Motor Heads

    ENGLISH If the motor assembly has been removed from its seat, pay the greatest ter at 80°C. Then drain the system completely to eliminate any harmful attention during assembly, taking care to insert the impeller completely substance that may have got into circulation. - Assemble in such a way as to avoid dripping on the motor and on the has been correctly assembled, the motor assembly rests completely on electronic control device during both installation and maintenance.
  • Page 10: Non-Return Valve

    ENGLISH Ensure that the connecting cable of the pressure sensor never Always switch off the mains power supply before working on comes in contact with the motor casing. the electrical or mechanical part of the system. Wait for the war- ning lights on the control panel to go out before opening the ap- pliance.
  • Page 11: Electrical Connections

    ENGLISH 8.2 Electrical connections of Inputs, Outputs and MODBUS Reference EVOPLUS circulators are equipped with digital and analogue inputs and (Figure 4 and Description digital outputs so as to be able to realise interface solutions with more Figure 5) complex installations. Pull-out terminal board for connection of the supply line: 1x220-240 V, 50/60 Hz par.
  • Page 12: Modbus And Lon Bus

    ENGLISH If the EXT and Economy functions have been activated from the control Further information and details on the MODBUS and LON bus interface panel, the system will behave as follows: are available at the following link: http://www.dabpumps.com/evoplus System Status 8.2.3 Analogue Input and PWM Open Open...
  • Page 13: Connections For Twin Systems

    ENGLISH 8.2.4 Outputs the pump is stopped. Characteristics of the output contacts Max. bearable voltage [V] If resistive load Max. bearable current [A] If inductive load Max. accepted cable section [mm²] Table 6: Characteristics of the output contacts Figure 9: Pull-out 6-pole terminal board: example of output connection With reference to Figure 9 the digital outputs available are: 8.3 Connections for Twin Systems Type of...
  • Page 14: Regulating Modes

    ENGLISH 10.1.1 Regulation with Proportional Differential Pressure in the system may also be in the form of steam. DANGER OF In this regulating mode the differential pressure is redu- SCALDING! ced or increased as the demand for water decreases or increases. It is dangerous to touch the circulator.
  • Page 15: Regulation With Constant And Proportional Differential

    ENGLISH The rotation speed may be set from the display or by an external signal 0-10V or PWM. Regulation indicated for heating and conditioning plants with constant 10.1.4 Regulation with Constant and Proportional Differential Pres- sure depending on the Water Temperature Figure 10: Control panel In this regulating mode the regulating set point Hs is reduced or increased accor-...
  • Page 16 ENGLISH 12. MENUS Home Page The main settings of the system are graphically summed up EVOPLUS circulators offer 2 menus: user menu and advanced menu. on the Home Page. The user menu is accessible from the Home Page by pressing and re- The icon at top left indicates the type of regulation selected.
  • Page 17 ENGLISH Page 2.0 The regulating mode is set from Page 2.0. You can choose Page 5.0 Page 5.0 allows you to set the “auto” or “economy” operating between the following modes: mode. “Auto” mode disables the reading of the status of digital input = Proportional differential pressure regulation.
  • Page 18 ENGLISH Page 9.0 On page 9.0 it is possible to choose the parameter to be displa- Alarms Log yed on the Home Page: alarms log (up to a maximum of 15 alarms). For each recorded alarm a page composed of 3 parts is displayed: an alphanume- H: Measured head expressed in metres tes the fault in graphic mode, and a message in the language selected on Page 10.0, giving a brief description of the fault.
  • Page 19: Error Condition And Reset

    This product or any part of it must be disposed of correctly: Type of external analogue signal 0-10V - Use public or private local systems for waste collection. - If that is not possible, contact Dab Pumps or the nearest authorised Twin operating mode = Alternate every 24h service workshop.
  • Page 20 - Wait for the warning lights on the control panel ting of to go off. EVOPLUS B 120/220.32 M 0,22 EVOPLUS D 120/220.32 M 0,22 e32-e35 electronic - Check that the system ventilation ducts are EVOPLUS B 40/220.40 M 0,23 EVOPLUS D 40/220.40 M...
