Anybus Configuration Manager
6.7.2 Integrity Check
This service checks that a node is up and running correctly. A telegram is sent to the node, and
the node mirrors and returns the telegram.
This service contains no configuration apart from the common parameters.

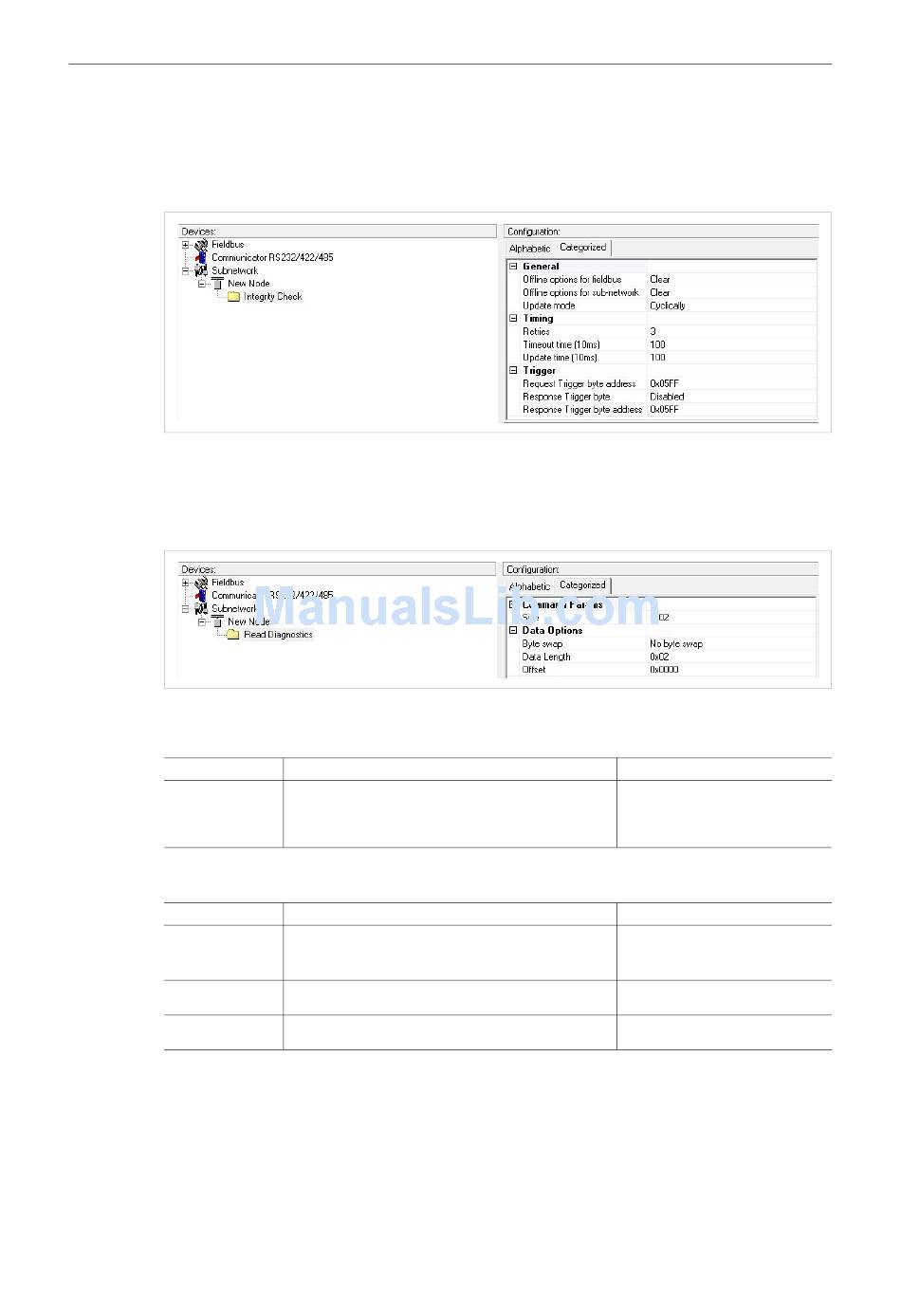

Fig. 51 Integrity Check service
6.7.3 Read Diagnostics
This service reads diagnostic information from the gateway.
Fig. 52 Read Diagnostics service
Command Parameters
Parameter
Size
Data Options
Parameter
Byte swap
Data length
Offset
®
Anybus Communicator ™ PROFINET
Description
The number of bytes that can be read from the slave.
One bit/integer element is 2 bytes and one float ele-
ment is 4 bytes. The parameter must have an even
value as only whole elements can be read.
Description
Determines if the data shall be swapped
The number of bytes, read from the DF1 network, to
write to the area determined in Offset.
The offset in the internal memory buffer that the data
shall be read from.
®
IRT (2.32) User Manual
52 (66)
Valid settings
PLC-5: 1–26
SLC-500: 1–28
MicroLogix: 1–26
Valid settings
No byte swap
Swap words
Swap double words
Less or equal to Size
-
