VPI Industries TNT-5 Setup And Instruction Manual

VPI Industries TNT-5 Setup And Instruction Manual

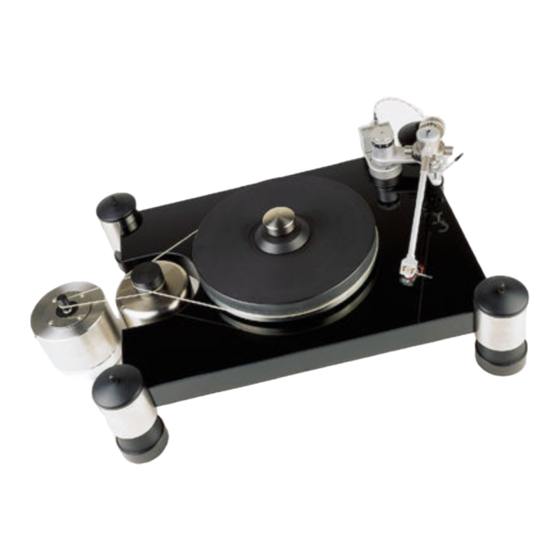

Air reference turntable

Advertisement

THE TNT-5 AIR
REFERENCE TURNTABLE
SETUP AND INSTRUCTION
MANUAL
VPI INDUSTRIES INC., 77 CLIFFWOOD AVE #3B, CLIFFWOOD N.J. 07721
PHONE: 732-583-6895, FAX: 732-946-8578
www.vpiindustries.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TNT-5 and is the answer not in the manual?

Questions and answers

Summary of Contents for VPI Industries TNT-5

  • Page 1 THE TNT-5 AIR REFERENCE TURNTABLE SETUP AND INSTRUCTION MANUAL VPI INDUSTRIES INC., 77 CLIFFWOOD AVE #3B, CLIFFWOOD N.J. 07721 PHONE: 732-583-6895, FAX: 732-946-8578 www.vpiindustries.com...
  • Page 2  In the box labeled PART A you will see the record clamp and below the foam the main TNT-5 chassis with air suspension. This is very heavy so be careful when lifting out the chassis. Place the chassis where it will be situated and make sure you do not bang the rubber air suspension bladders.
  • Page 3 “Proper Layout for Flywheel Usage” diagram. Make sure you have a level surface of at least 32 inches in length. VPI makes a custom extended top for the TNT stand to put the TNT-5 on. PROPER LAYOUT FOR FLYWHEEL USAGE...
  • Page 4  There is very little maintenance associated with the TNT 5. Every 3 months re- powder the drive belt between the motor and flywheel by placing it in its’ original bag. Shake off the excess powder and put them back in the same location on the pulleys.
  • Page 5 DETAILS ON AIR SUSPENSIONS  The TNT-5 uses pneumatic Micro-actuators in the four suspension towers. These actuators come with very little air pressure from the factory. When you add air, you should use a hand pump with a quick release valve. Fill them by hand with two quick bursts of pressure.
