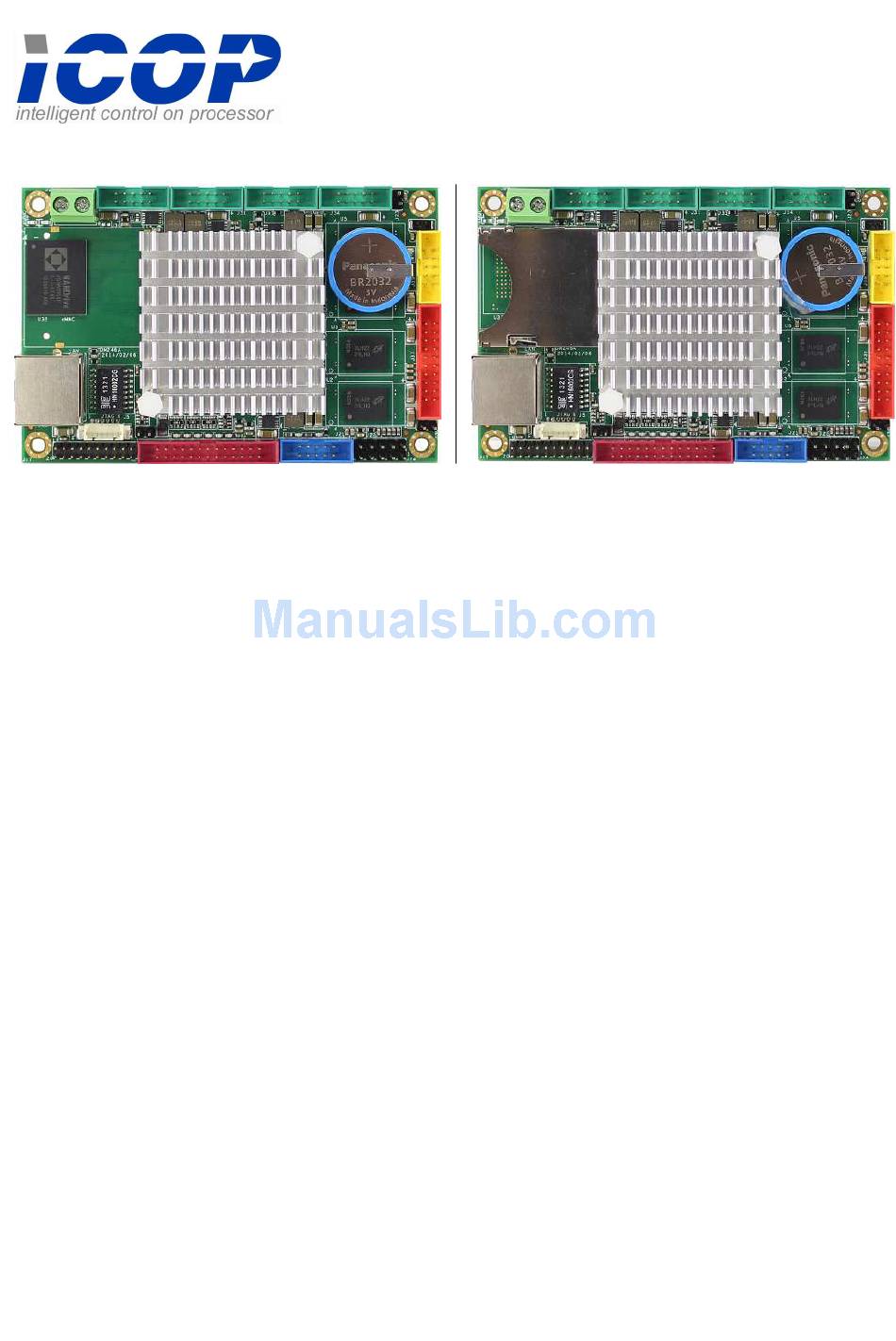

- Page 1 VDX2-6518-E / VDX2-6518-S DM&P Vortex86DX2 800MHz Tiny CPU Module with 4S/2USB/VGA/LVDS/LAN/eMMC or SD Card/PWMx8 1GB DDR2 Onboard User’s Manual (Revision 1.2A)
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc. Copyright 2014 ICOP Technology Inc.
-
Page 3: Table Of Contents
T a b l e C o n t e n t s T a b l e o f C o n t e n t s ............. iii C h a p t e r 1 Introduction……………………………………………1 Packing List ............1 Product Description .......... - Page 4 This page is blank...
-
Page 5: Table O F C O N T E N T S
C h a p t e r Introduction Packing List Product Name Package Embedded Vortex86DX2 CPU All-in-One Board RS232 cable x 4 PRINTER cable x1 VDX2-6518 GPIO cable x1 USB cable x 1 (USB port x 2 VGA cable x 1 PS/2 Mouse cable x 1 PS/2 Keyboard cable x 1 Screw Kit x 1... -
Page 6: Product Description
Product Description The VDX2-6518, a low-power x86 embedded controller, is designed to meet tiny module specification, and is integrated with the following features. 800 MHz Vortex86DX2 SoC Onboard 4MB SPI Flash VGA, LVDS LCD support up to 2 watchdog timer 1280x1024 resolution PWM 8~16channels 1 GB DDR2 system memory... -
Page 7: Specifications
Specifications Features VDX2-6518 DM&P SoC CPU Vortex86DX2- 800MHz Real Time Clock with Lithium Battery Backup L1:16K I-Cache, 16K D-Cache L2:256KB Cache Cache BIOS AMI BIOS System Memory 1GB DDR2 Onboard Software programmable from 30.5 us to 512 seconds x2 sets Watchdog Timer (Watchdog 1 fully compatible with M6117D) Integrated 2D VGA chip with dual display support (VGA + TTL /... -
Page 8: Board Dimension
Board Dimension Vortex86DX2-6518 Vortex86DX2™ Tiny CPU Module... -
Page 9: Chapter 2 Installation
C h a p t e r 2 Installation Board Outline VDX2-6518-E VDX2-6518-S (Note1: COM2 RS232/485 is selected by BIOS setting) (Note2: GPIO has 8-bit available only (Optional)) Vortex86DX2-6518 Vortex86DX2™ Tiny CPU Module... -
Page 10: Connectors Location
Connectors Location Connectors Vortex86DX2-6518 Vortex86DX2™ Tiny CPU Module... -
Page 11: Connectors & Jumpers Summary
Connectors & Jumpers Summary Summary Table Description Type of Connections Pin nbrs. JTAG (For ICOP usage only) 6-pin Wafer, 1.25∅,1x6 J17 LVDS 20-pin Pin Header, 2.0∅, 10x2 J21 VGA 10-pin Pin Header, 2.0∅, 5x2 J22 PS/2 Keyboard 5-pin Box Header, 2.54∅,1x5... -
Page 12: Pin Assignments & Jumper Settings
Pin Assignments & Jumper Settings J17: LVDS (24-bit support only) Pin # Signal Name Pin # Signal Name VCC3(+3.3V) VCC3(+3.3V) RxIN0+ RxIN0- RxIN1- RxIN1+ RxIN2+ RxIN2- CKIN- CKIN+ RxIN3- RxIN3+ J21: VGA Pin # Signal Name Pin # Signal Name R OUT G OUT B OUT... - Page 13 J26: Power Connector (Terminal Block 5.0mm) Pin # Signal Name J30: COM1 (Optional: TTL ) Pin # Signal Name Pin # Signal Name DCD1- RXD1+ TXD1 DTR1 DSR1 RTS1 CTS1 J31: COM2 RS232 / 422 / 485 Pin # Signal Name Pin # Signal Name DCD2 / 422TX- / RS485-...
- Page 14 J37: GPIO Port 3 (Not available if SPI ROM is enabled in BIOS) Pin # Signal Name Pin # Signal Name GP30/SPICS GP31/SPICLK GP32/SPIDO GP33/SPIDI GP34 GP35 GP36 GP37 *Please see Page16 for detail J38: RESET Pin # Signal Name Pin # Signal Name RST_SW...
- Page 15 J46: PRINT Pin # Signal Name Pin # Signal Name STB- AFD- ERR- INIT- SLIN- ACK- BUSY SLCT Vortex86DX2-6518 Vortex86DX2™ Tiny CPU Module...
-
Page 16: System Mapping
System Mapping Vortex86DX2-6518 Vortex86DX2™ Tiny CPU Module... - Page 17 Vortex86DX2-6518 Vortex86DX2™ Tiny CPU Module...
- Page 18 Vortex86DX2-6518 Vortex86DX2™ Tiny CPU Module...
- Page 19 Vortex86DX2-6518 Vortex86DX2™ Tiny CPU Module...
-
Page 20: Watchdog Timer
Watchdog Timer There are two watchdog timers in Vortex86SX/DX/DX2 CPU. One is compatible with M6117D watchdog timer and the other is new. The M6117D compatible watchdog timer is called WDT0 and new one is called WDT1. We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://dmp.com.tw/tech GPIO (General Purpose Input / Output) -
Page 21: Spi Flash
New Age x86 SoC platform and we also offer the sample code of PWM which will guide the engineer to control the PWM functionality smoothly. For more inquire of this sample code that please contact our sales team or mail to: info@icop.com.tw Vortex86DX2-6518 Vortex86DX2™ Tiny CPU Module... -
Page 22: Chapter 3 Driver Installation
For drivers, please visit DMP official website: http://dmp.com.tw/tech for them and if you cannot locate them, please mail us at info@icop.com.tw Vortex86DX2-6518 also supports most of the popular Linux distributions, for more detail information, please also visit DMP official website: http://dmp.com.tw/tech Vortex86DX2-6518 Vortex86DX2™... -
Page 23: Appendix
Appendix LVDS Flat Panel Support List VDX2-6518 ONLY supports 24-bit LVDS Panel Approved LVDS Flat Panel List Size Brand Resolution Model No. 8.4” 800x600 G084SN03 V3 10.1” 1024x600 B101AW06_V0 10.4” 800x600 G104SN02 V2 12.1” 800x600 G121SN01 15” 1024x768 G150XG01 B. Flat Panel Wiring and Lighting Hardware Before you connect the TFT LCD Flat Panel with VDX2-6518, please make sure the input Voltage of LCD is + 3.3V... -
Page 24: Tcp/Ip Library For Dos Real Mode
Application systems: Mity-Mite Serial Server, Web Camera Tiny Server and RSIP Serial Server. DSock is free for all ICOP products using M6117D/ Vortex86/ Vortex86SX/ Vortex86DX/ Vortex86DX2 CPUs and ICOP also provides the business version of DSock for those customers who are using other x86 CPUs. -
Page 25: Bios Default Setting
BIOS Default setting If the system cannot be booted after BIOS changes are made, Please follow below procedures in order to restore the CMOS as default setting. Press “End” Key, when the power on Press <Del> to enter the AMI BIOS setup Press “F9”... -
Page 26: Warranty
Warranty This product is warranted to be in good working order for a period of one year from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
