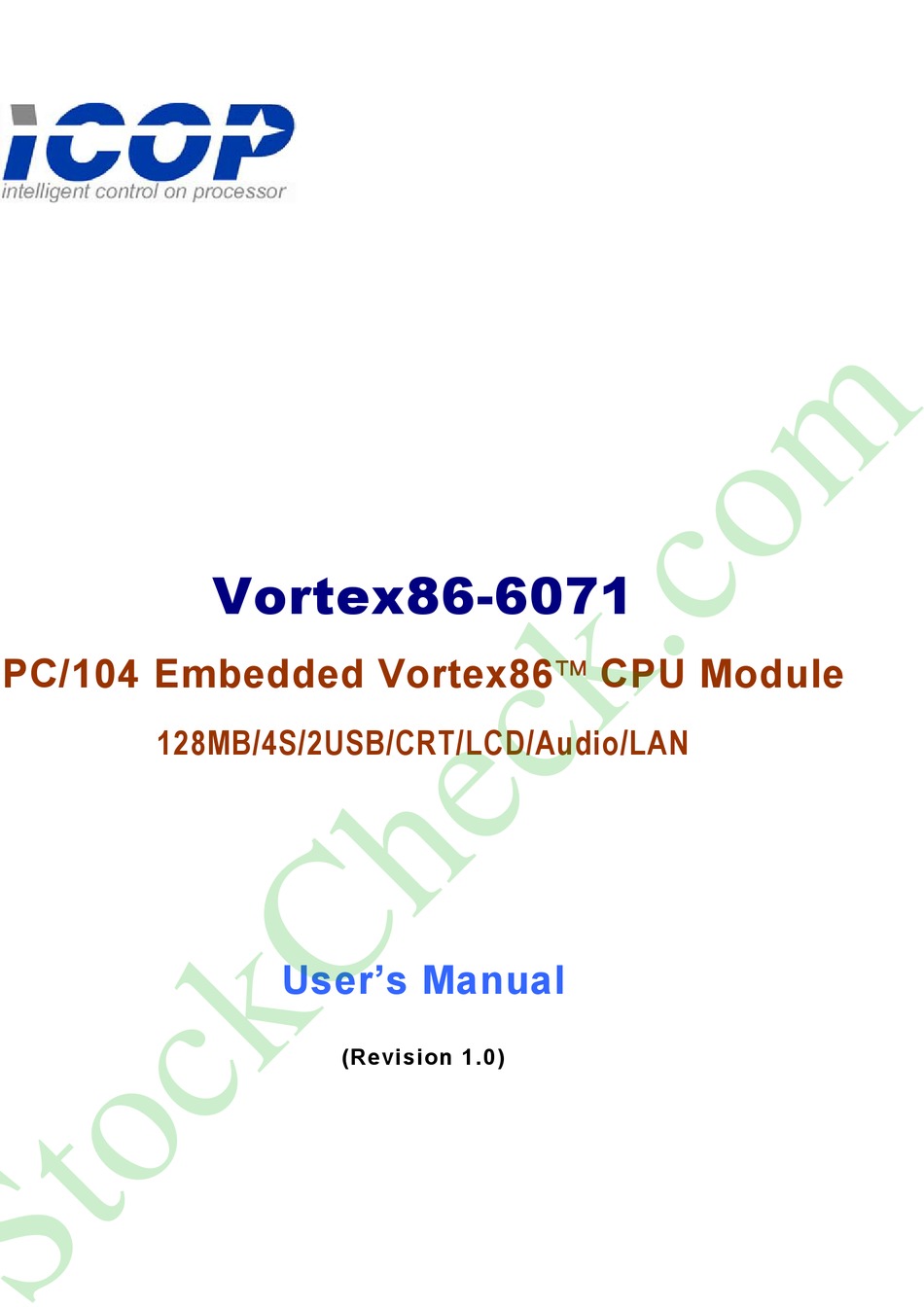

- Page 1 Vortex86-6071 PC/104 Embedded Vortex86 CPU Module 128MB/4S/2USB/CRT/LCD/Audio/LAN User’s Manual (Revision 1.0)
- Page 2 All rights reserved. issue date: July 31, 2003 Trademarks Acknowledgment is the registered trademark of ICOP Technology Inc. Vortex86 Other brand names or product names appearing in this document are the properties and registered trademarks of their respective owners. All...
-
Page 3: Table Of Contents
T a b l e C o n t e n t s T a b l e C o n t e n t s C h a p t e r Startup Packing List............1 Option Accessory ..........1 Specification ............ - Page 4 J13 : RS232/RS485 Select .......... 15 J14 : FDD Connector ..........16 J15 : COM1 Connection ........... 16 J16 : COM2 Connection ........... 17 J17 : Printer Connector ..........17 J18 : RS485 Connection ..........17 J19 : PC/104 Connector .......... 178 J20 : PC/104 Connector ..........
-
Page 5: Chapter Startup
PS2 cable for Keyboard and Mouse x 2 Option Accessory Product Name Function Package IDE 44 pin (2.0mm Pitch) to IDE 40 pin (2.54mm ICOP-0094 IDE Exchange Kit Pitch), Board size: 70 x 50 mm) Vortex86-6071 : PC/104 Embedded Vortex86 CPU Module... -
Page 6: Specification
AGP Rev.2.0 Compliant Shared system memory area up to 16MB. Resolution up to 1,920Cx 1,440 true colors CRT/LCD display Realtek 8100B single chip Full-duplex transfer mode, doubles effective bandwidth 16KB RAM buffer Throughput 10/100Mbps Vortex86-6071 : Embedded Half-SizeVortex86 AIO SBC... - Page 7 5-pin header for PS/2 Mouse Watchdog Timer Software Watchdog Timer Three 8254 Compatible Programmable 16-bit Counters. Power Requirement Single Voltage +5V @1.2 A Board Weight 100g Board Size 90mm X 96mm Operating Temperature -20°C ~ +70°C Vortex86-6071 : PC/104 Embedded Vortex86 CPU Module...
- Page 8 This page is intentionally left blank. Vortex86-6071 : Embedded Half-SizeVortex86 AIO SBC...
-
Page 9: Chapter 1 Introduction
One Bi-directional Parallel Port RS-232/485 interface Watchdog timer Onboard Keyboard & Mouse connector Onboard Audio connector Onboard Ethernet Single voltage +5V power connector Operating temperature from –20°C〜+70°C Board Support Package for Windows CE.NET Accept custom modification Vortex86-6071 : PC/104 Embedded Vortex86 CPU Module... -
Page 10: Specifications
Audio port:AC97 CODEC, includes line-in, line out, mic-in functions. Power Requirements: single voltage +5 V @ 1.2A Board Dimensions: 90 (L) x 96 (W) mm. Board Weight: 100 g Extended Operating Temperature: -20°C ~+70 °C Vortex86-6071 : Embedded Half-SizeVortex86 AIO SBC... -
Page 11: Vga Interface
Chipset: Realtek 8100B single chip Type: 10/100BASE-T Transfer Mode: Full duplex, doubles effective bandwidth Buffer: Built-in 16KB RAM Buffer. Connectors: 8-pin male header, pitch 2.0mm Monitoring LEDs: network ready indicator, network activity indicator Vortex86-6071 : PC/104 Embedded Vortex86 CPU Module... -
Page 12: Chapter 2 Installation
C h a p t e r Installation Board Outline 2.1.1 By Function Vortex86-6071 : Embedded Half-SizeVortex86 AIO SBC... -
Page 13: By Location
2.1.1 By Location The red dot indicates the first pin of each connector Vortex86-6071 : PC/104 Embedded Vortex86 CPU Module... -
Page 14: Connectors & Jumpers Summary
J19,J20: PC104 Connector Box Header J21: Line-in Connection 2.0 ∅Box Header J22: Line-out Connection 2.0 ∅Box Header J23: Mic-in Connection 2.0 ∅Box Header J24: COM3 Connection 2.0 ∅Box Header J25: COM4 Connection 2.0 ∅Box Header Vortex86-6071 : Embedded Half-SizeVortex86 AIO SBC... - Page 15 J3 : USB Connector - 2.0 ∅ pitch 10-pin Box Header Signal Signal Pin # Pin # Name Name -DATA1 -DATA0 +DATA1 +DATA0 J4 : PS/2 Keyboard Connection - 5-pin Molex Header Pin # Signal Name KBCLK KBDAT SB 5V (VCC) Vortex86-6071 : PC/104 Embedded Vortex86 CPU Module...
- Page 16 J6 : Speaker - 2-pin Header Signal Pin # Name SPKR J7 : PS/2 Mouse Connection- 5-pin Header Pin # Signal Name PMCLK PMDAT SB 5V (VCC) Vortex86-6071 : Embedded Half-SizeVortex86 AIO SBC...
- Page 17 J5: LCD Volts Selection - 3-pin Header VBD10 Pin # Signal Name VBD11 +3.3V PLDXCLK SHFCLK VADE MOD/LDE VAHSYNC LP/HYSNC VHVSYNC FLM/VYSNC DISOFF ENBT XCLK XCLK VBGCLK VBDE HSYNC HSYNC VBHSYNC VSYNC VSYNC VBVSYNC VDDEN VDDEN VDDEN VDDEN Vortex86-6071 : PC/104 Embedded Vortex86 CPU Module...
- Page 18 Pin # Name Name IDERST- IDED7 IDED8 IDED6 IDED9 IDED5 IDED10 IDED4 IDED11 IDED3 IDED12 IDED2 IDED13 IDED1 IDED14 IDED0 IDED15 IDEREQ IDEIOW- IDEIOR- ICHRDY IDACK- IDEIRQ IDESA1 CBLID IDESA0 IDESA2 IDECS-0 IDECS-1 DASP Vortex86-6071 : Embedded Half-SizeVortex86 AIO SBC...
- Page 19 J11 : Power Connector - 2-pin Header Signal Pin # Name SB5V J12 : CPU FAN - 2-pin Molex Header Signal Pin # Name J13 : RS232/RS485 Select - 3-pin Header Pin # Signal Name COM2 RS232 RS485 Vortex86-6071 : PC/104 Embedded Vortex86 CPU Module...
- Page 20 DS0\ MTR1\ DIR\ STEP\ TR0\ HDSEL\ DSKCHG\ J15 : COM1 Connection (RS-232 Connector) - 2.0 ∅ 10-pin Box Header Signal Signal Pin # Pin # Name Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 Vortex86-6071 : Embedded Half-SizeVortex86 AIO SBC...
- Page 21 J17 : Printer Connector - 2.0 ∅ 26-pin Box Header Signal Signal Pin # Pin # Name Name STB- AFD- ERR- PRINIT- SLIN- ACK- BUSY SLCT J18 : RS485 Connection- 2.54 ∅ 2-pin Molex Header Signal Pin # Name RS485+ RS485- Vortex86-6071 : PC/104 Embedded Vortex86 CPU Module...
- Page 22 SMEMW * SA19 SMEMR * SA18 IOW * SA17 IOR * SA16 DACK3 * SA15 DRQ3 SA14 DACK1 * SA13 DRQ1 SA12 REFRESH * SA11 SYSCLK SA10 IRQ7 IRQ6 IRQ5 IRQ4 IRQ3 DACK2 * BALE Vortex86-6071 : Embedded Half-SizeVortex86 AIO SBC...
- Page 23 MEMW * DRQ5 DACK6 * DRQ6 SD10 DACK7 * SD11 DRQ7 SD12 SD13 MASTER * SD14 SD15 J21 : Line-in Connector - 2.0 ∅ 4-pin Box Header Connector Pin # Signal Name LINEIN_R LINEIN_L Vortex86-6071 : PC/104 Embedded Vortex86 CPU Module...
-
Page 24: J24 : Com3 Connection
DCD3 RXD3 TXD3 DTR3 DSR3 RTS3 CTS3 J25 : COM4 Connection (RS-232 Connector) - 2.0 ∅ 10-pin Box Header Signal Signal Pin # Pin # Name Name DCD4 RXD4 TXD4 DTR4 DSR4 RTS4 CTS4 Vortex86-6071 : Embedded Half-SizeVortex86 AIO SBC... -
Page 25: Watchdog Timer
The software watchdog timer will start to count when this bit is set to one. Reserved 5:4 R/W Software Watchdog Timer Clock Select 00 : 4 ms 01 : 1 second 10 : 1 minute 11 : 1 hour Vortex86-6071 : PC/104 Embedded Vortex86 CPU Module... - Page 26 R/WC Software Watch Dog Timer Event 0 Status (SFTMR0_STS) This bit is set when the software watchdog timer expires the second time. This status bit does not have its corresponding enable bit and can survive under PCIRST#. Vortex86-6071 : Embedded Half-SizeVortex86 AIO SBC...
- Page 27 /* clear "Timer Expiration Event 0/1" bit */ outp(0x841, 0xc0); getch(); printf("System will be reset after %d seconds.\n", nTime * 4); clk = clock(); while(!kbhit()) printf("%2.2f\r", (clock() - clk) / CLK_TCK); Vortex86-6071 : PC/104 Embedded Vortex86 CPU Module...
- Page 28 ; set timer clock to 1 second and "Timer Expiration Event 0/1" to reset system. mov al,9ch out dx,al ; clearing watchdog timer status mov dx,841h mov al,0c0h out dx,al Vortex86-6071 : Embedded Half-SizeVortex86 AIO SBC...
-
Page 29: Svga Setup
SVGA Setup Introduction SoC (System on Chip) The Vortex86-6071 offers high performance/low cost Vortex solution that integrates a x86 compatible processor, high performance North Bridge, advanced hardware GUI engine and Super-South bridge into a single chipset – this SoC... -
Page 30: Flat Panel Bios Wiring
Flat Panel BIOS Wiring SoC (System on Chip) The Vortex86-6071 offers high performance/low cost Vortex solution that. integrates a x86 compatible processor, high performance North Bridge, advanced hardware GUI engine and Super-South bridge into a single chipset – this SoC desi gn supports the now PC technology, USB, Legacy Removal, CIR, Memory Stick, Smart Card and Slotless Design for a variety of Information Exchange applications. - Page 31 - PVI 6.4” TFT LCD panel P/N: V16C6448AC TFT-LCD Panel Driving Note: The TFT-LCD panel display is compatible with four kinds of timing. They are VGA-480, VGA-400, VGA-350 and freedom mode. The polarization of Hsync and Vsync determine the timings. Vortex86-6071 : PC/104 Embedded Vortex86 CPU Module...
- Page 32 - SHARP 6.4” TFT LCD panel P/N: LQ64D341 (HIROSE DF9BA-31P-1V) Vortex86-6071 : Embedded Half-SizeVortex86 AIO SBC...
- Page 33 - NEC 6.5” TFT Color LCD panel P/N: NL6448BC20-08 (HIROSE DF9B-31P-1V) Vortex86-6071 : PC/104 Embedded Vortex86 CPU Module...
-
Page 34: Chapter 4 Network Interface
NDIS3,NDIS4,NDIS5 for WIN95,98,NT3.51,4.0,5.0,WFW3.11 Netware 16-bit ODI driver for DOS,OS/2 and 32-bit ODI driver for Netware 3.x,4.x,5.0 Server Packet driver for UNIX Client SCO Unix driver Linux driver All operating systems that support standard NE2000 Vortex86-6071 : Embedded Half-SizeVortex86 AIO SBC... -
Page 35: Warranty
Authorization can be obtained by calling or faxing the vendor and requesting a Return Merchandise Authorization (RMA) number. Returned goods should always be accompanied by a clear problem description. Vortex86-6071 : PC/104 Embedded Vortex86 CPU Module...
