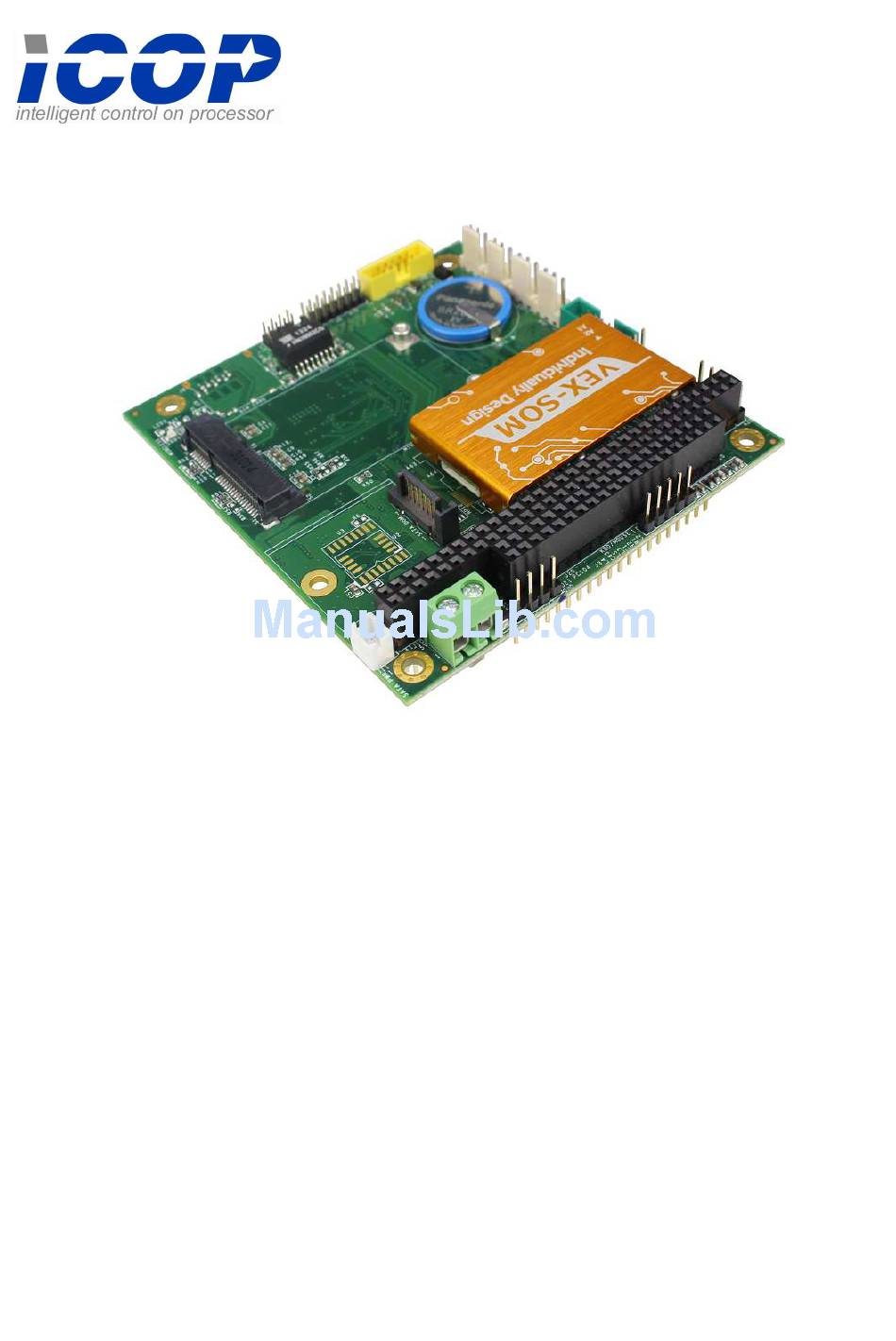

- Page 1 VEX-6253 DM&P Vortex86EX 400MHz PC/104 CPU Module with 1S/2USB/LAN/AD/16-bit x-ISA 128MB DDR3 Onboard User’s Manual (Revision 1.0A)
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc. Copyright 2013 ICOP Technology Inc.
-
Page 3: Table Of Contents
Connectors Location ..........6 Connectors & Jumpers Summary ......7 Pin Assignments & Jumper Settings ....... 8 System Mapping ........... 18 2.5.1 VEX-6253 ............18 2.5.2 VEX-6253-3GE ..........22 2.5.3 VEX-6253-5S-S ..........26 Watchdog Timer ........... 30 SPI flash ............... 30 A/D Converter............ - Page 4 This page is blank...
-
Page 5: Table O F C O N T E N T S
VEX-6253-3GE Vortex86EX CPU Module with 128MB DDR3, 512MB eMMC onboard and Mini PCI-E 3G module support VEX-6253-5S-S Vortex86EX CPU Module with 128MB DDR3, 5x RS232( 4x TX/RX ) and SD Card slot MINIPCIE-9160 Mini PCI-E VGA Module for VEX CPU Module only... -
Page 6: Product Description
Onboard 8MB SPI Flash temperature range of -20°C to +70°C The Vortex86EX series is the newest member of ICOP family with compact size and ultra-low power consumption. It packs 16KB write through 4-way L1 cache, 128KB write through/write back 4-way L2 cache, 2.5Ghz PCI-E Bus, DDR3, ROM controller, I²C, SPI, Fast Ethernet, FIFO UART, USB2.0 Host, CAN, and SD/SATA controllers. -
Page 7: Specifications
1.4 Specifications Features VEX-6253 DM&P SoC CPU Vortex86EX- 400MHz Real Time Clock with Lithium Battery Backup Cache L1:16K I-Cache, 16K D-Cache L2:256KB Cache BIOS Coreboot BIOS PC/104 Standard Compliant Bus Interface System Memory 128MB DDR3 Onboard Software programmable from 30.5µ sec.to 512 sec. x2 sets... -
Page 8: Board Dimension
1.5 Board Dimension VEX-6253 Vortex86EX™ CPU Module... -
Page 9: Chapter 2 Installation
Installation Board Outline Note: 1. SIM Card slot is only available on VEX-6253-3GE. 2. Only VEX-6253 has full 16-bit x-ISA support from PC/104 connector. For x-ISA support of VEX-6253-3GE and VEX-6253-5S-S, please check section 2.4 for detail VEX-6253 Vortex86EX™ CPU Module... -
Page 10: Connectors Location
Connectors Location VEX-6253 Vortex86EX™ CPU Module... -
Page 11: Connectors & Jumpers Summary
J20B PC104 Connector – 40 pin 40-pin Box Header, 2.54∅ 20x2 J21 4P Power Source(Interconnect 4-pin Pin Header, 2.54∅ , 4x1 to PC/104 – J20) LED 1 Wireless LED(Green) LED-SMD LED 2 Power LED(Red ) LED-SMD LED 3 eMMC LED(Green) LED-SMD VEX-6253 Vortex86EX™ CPU Module... -
Page 12: Pin Assignments & Jumper Settings
J5: A/D (See section 2.8 for detail) Pin # Signal Name Pin # Signal Name ADC_0 AGND ADC_1 AGND ADC_2 AGND ADC_3 AGND ADC_4 AGND ADC_5 AGND ADC_6 AGND ADC_7 AGND J6: RESET Pin # Signal Name Pin # Signal Name RST_SW VEX-6253 Vortex86EX™ CPU Module... - Page 13 GND* LUSBD3+* VCC3* VCC3* LED_WWAN* TGP13* CTS2\* TGP16* RTS2\* TXGP15* RXD2\* TXD2\* VCC3 *Available when VEX-6253-3GE model is selected *MiniPCIE-9160 does not work on VEX-6253-3GE J9: SATA DOM Pin # Signal Name Pin # Signal Name VEX-6253 Vortex86EX™ CPU Module...
- Page 14 CTS1 J13: COM1 RS232 / 485 Select Pin # Signal Name OPEN RS232 CLOSE RS485 J14: COM5 (TX/RX, available on VEX-6253-5S-S only) Pin # Signal Name TXD5 RXD5 J15: COM6 (TX/RX, available on VEX-6253-5S-S only) Pin # Signal Name TXD6...
- Page 15 J16: COM7 (TX/RX, available on VEX-6253-5S-S only) Pin # Signal Name TXD7 RXD7 J17: COM8 (TX/RX, available on VEX-6253-5S-S only) Pin # Signal Name TXD8 RXD8 J18: LAN Pin # Signal Name Pin # Signal Name LTX+ LTX- LRX+ LRX- VEX-6253 Vortex86EX™...
- Page 16 J20A: PC104 Connector – 64pin (For VEX-6253) Pin # Signal Name Pin # Signal Name IOCHCHK RSTDRV IRQ9 DRQ2 -12V +12V IOCHRDY SMEMW SA19 SMEMR SA18 SA17 SA16 SA15 DRQ3 SA14 DACK1 SA13 DRQ1 SA12 REFRESH SA11 SYSCLK SA10 IRQ7...
- Page 17 J20B: PC104 Connector – 40pin (For VEX-6253) Pin # Signal Name Pin # Signal Name MEMCS16 SBHE IOCS16 SA23 IRQ10 SA22 IRQ11 SA21 IRQ12 SA20 IRQ15 SA19 IRQ14 SA18 SA17 DRQ0 MEMR MEMW DRQ5 DRQ6 SD10 SD11 DRQ7 SD12 SD13...
- Page 18 J20A: PC104 Connector – 64pin (For VEX-6253-3GE) Pin # Signal Name Pin # Signal Name IOCHCHK RSTDRV IRQ9 DRQ2 -12V +12V IOCHRDY SMEMW SA19 SMEMR SA18 SA17 SA16 SA15 DRQ3 SA14 SA13 DRQ1 SA12 REFRESH SA11 SYSCLK SA10 IRQ7 IRQ6...
- Page 19 J20B: PC104 Connector – 40pin (For VEX-6253-3GE) Pin # Signal Name Pin # Signal Name MEMCS16 SBHE IOCS16 SA23 SA22 SA21 IRQ12 SA20 SA19 IRQ14 SA18 SA17 DRQ0 MEMR MEMW DRQ5 DRQ6 DRQ7 MASTER VEX-6253 Vortex86EX™ CPU Module...
- Page 20 J20A: PC104 Connector – 64pin (For VEX-6253-5S-S) Pin # Signal Name Pin # Signal Name IOCHCHK RSTDRV IRQ9 DRQ2 -12V +12V IOCHRDY SMEMW SA19 SMEMR SA18 SA17 SA16 SA15 DRQ3 SA14 SA13 SA12 REFRESH SA11 SYSCLK SA10 IRQ6 IRQ5 IRQ4...
- Page 21 J20B: PC104 Connector – 40pin (For VEX-6253-5S-S) Pin # Signal Name Pin # Signal Name MEMCS16 SBHE IOCS16 SA23 SA22 SA21 SA20 SA19 IRQ14 SA18 SA17 DRQ0 MEMR MEMW DRQ5 DRQ6 DRQ7 MASTER J21: 4P Power Source (Interconnect to PC/104 – J20A)
-
Page 22: System Mapping
2.5 System Mapping 2.5.1 VEX-6253 VEX-6253 Vortex86EX™ CPU Module... - Page 23 VEX-6253 Vortex86EX™ CPU Module...
- Page 24 VEX-6253 Vortex86EX™ CPU Module...
- Page 25 VEX-6253 Vortex86EX™ CPU Module...
-
Page 26: Vex-6253-3Ge
2.5.2 VEX-6253-3GE VEX-6253 Vortex86EX™ CPU Module... - Page 27 VEX-6253 Vortex86EX™ CPU Module...
- Page 28 VEX-6253 Vortex86EX™ CPU Module...
- Page 29 VEX-6253 Vortex86EX™ CPU Module...
-
Page 30: Vex-6253-5S-S
2.5.3 VEX-6253-5S-S VEX-6253 Vortex86EX™ CPU Module... - Page 31 VEX-6253 Vortex86EX™ CPU Module...
- Page 32 VEX-6253 Vortex86EX™ CPU Module...
- Page 33 VEX-6253 Vortex86EX™ CPU Module...
-
Page 34: Watchdog Timer
If users are considering using a formatted SPI flash to boot the system or emulate SPI flash as Floppy (A: Driver or B: Driver), changing CMOS Setup will be required. Boot up under DOS 6.22, X-DOS, DR-DOS or Free DOS is recommended. For more technical support, please visit: http://dmp.com.tw/tech. VEX-6253 Vortex86EX™ CPU Module... -
Page 35: A/D Converter
2-bit voltage scaling sub-DAC for LSB. The input range is between 0 and VCCA (3.3V). Features 11-bit, 100kS/s SAR A/D Converter 8-channel input Input signal range: 0V~VCC33A(3.3V) Operating voltage range: 2.93V~3.63V Operating junction temperature range: -40°C~125°C VEX-6253 Vortex86EX™ CPU Module... -
Page 36: Chapter 3 Driver Installation
Operating system support The VEX-6253 CPU board supports embedded software: Free DOS, DOS 6.22, PCDOS 7.1, DR-DOS, x-DOS, OS/2, Windows CE 6.0, x-Linux, QNX, Vxworks and FreeBSD. For drivers, please visit DMP official website: http://dmp.com.tw/tech, and if you cannot locate them, please mail us at info@icop.com.tw. -
Page 37: Appendix
ROM image to fit their application, those examples can be seen in the following Application systems: Mity-Mite Serial Server, Web Camera Tiny Server and RSIP Serial Server. DSock is free for all ICOP customers who are using M6117D/ Vortex86/ Vortex86SX/ Vortex86DX/ Vortex86DX2/ Vortex86EX CPU. ICOP also provides the business version, software charge required, of DSock for those customers who are using other x86 CPUs. -
Page 38: Warranty
Authorization can be obtained by calling or faxing the vendor and requesting a Return Merchandise Authorization (RMA) number. Returned goods should always be accompanied by a clear problem description. VEX-6253 Vortex86EX™ CPU Module...
