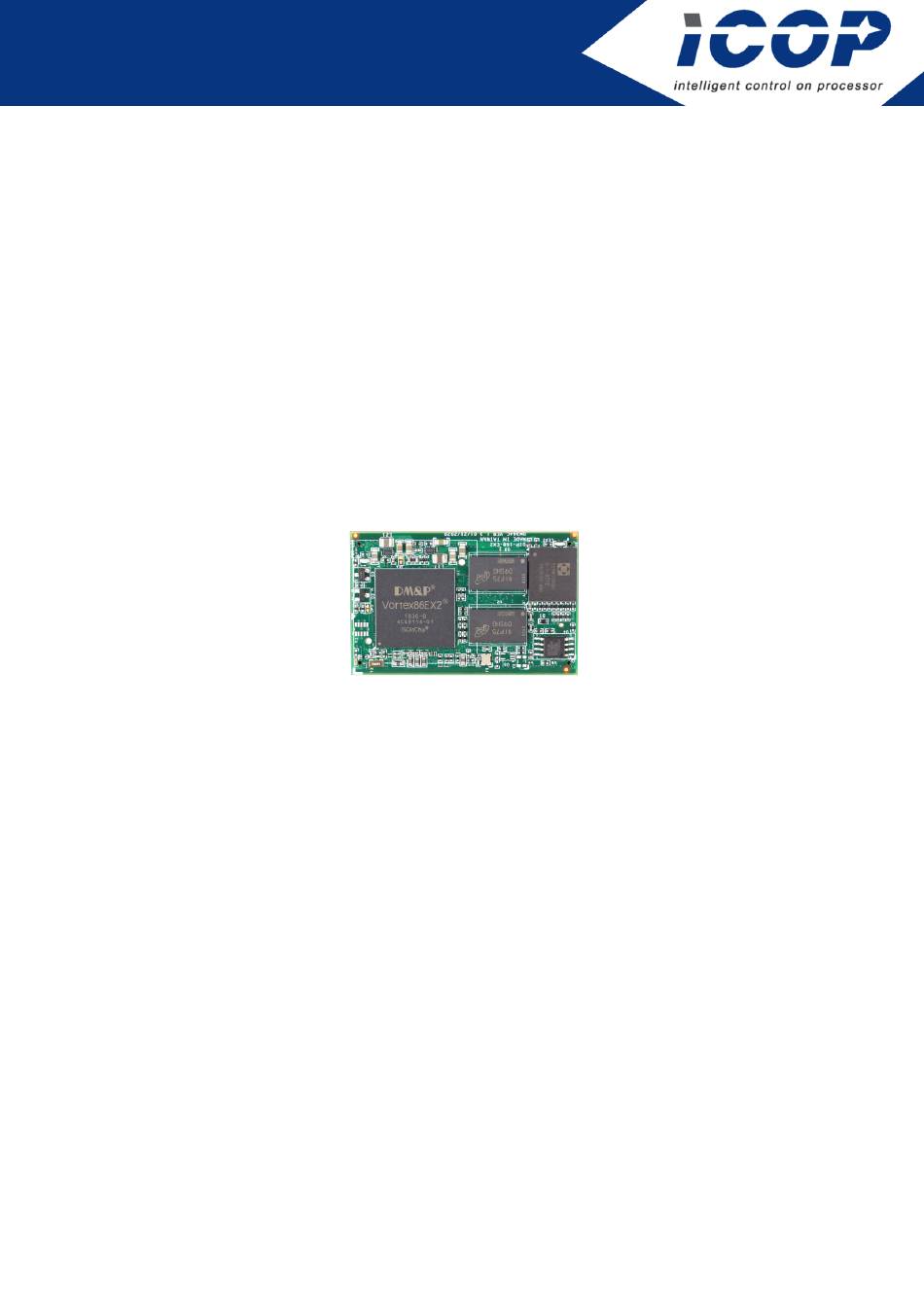

- Page 1 User Manual VEX2-DIP168 VortexEX2 VEX2 168 pins System-On-Module User's manual Version 1.0 ICOP Technology Inc.
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior to written permission of ICOP Technology Inc. ⓒCopyright 2020 ICOP Technology Inc Trademarks Acknowledgement Vortex86EX2 is the registered trademark of DM&P Electronics Inc.
- Page 3 VEX2-DIP168 User Manual Revision History Revision Date Remark 2020.07.16 First revision ICOP Technology Inc.
-
Page 4: Table Of Contents
Programmable I/O overview........................14 Selection Table for I/O Function ......................17 4 Software Resources ....................18 BIOS ................................18 Software ................................ 18 5 ADC ......................... 19 ADC overview ............................. 19 ADC Sample code ............................19 6 Evaluation Board ....................20 ICOP Technology Inc. - Page 5 VEX2-DIP168 User Manual Warranty ........................22 ICOP Technology Inc.
-
Page 6: General Information

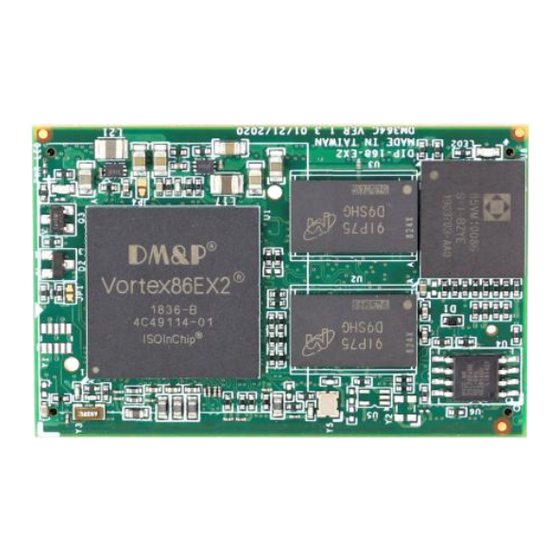

User Manual 1 General Information 1.1 Overview The VEX2-DIP168 is a 35mm(L) x 55mm(W), 168 pins, single +5V input, System On Module with Vortex86EX2 build-in 512MB/1GB DDR3; also take advantage of Vortex86EX2 Programmable I/O as a powerful, flexible, tiny and low power module. -
Page 7: Specifications
SPI x2 HD Audio SD/MMC WatchingDog Timer MTBF Power Requirement Single Voltage +5VDC @ 360mA -20°C to +70°C Operating Temperature -40°C to +85°C (Option) Dimension 35mm(L) x 55mm(W) Weight FreeBSD Windows CE6/Embedded Compact 7 O/S Support VxWorks X-Linux ICOP Technology Inc. -
Page 8: Ordering Information
Vortex86EX2 DIP168 pin VEX2-DIP168-4NE1 CPU Module with 1GB DDR3, Micro SD disk support Vortex86EX2 DIP168 pin VEX2-DIP168-3EE1 CPU Module with 512MB DDR3, 4GB eMMC disk support Vortex86EX2 DIP168 pin VEX2-DIP168-4EE1 CPU Module with 1GB DDR3, 4GB eMMC disk support ICOP Technology Inc. -
Page 9: Hardware Information
VEX2-DIP168 User Manual 2 Hardware Information 2.1 Dimension ICOP Technology Inc. -
Page 10: Connectors
Vendor: Conn Top Component INC. Conn Top item number: number: H3N25-242D1BKC002F ICOP item number: number: PH2*42(1.27)-5.3MM Note: Customer can buy connector from ICOP. The item number is PH2*42(1.27)-5.3MM. For details, please contact ICOP sales. ICOP Technology Inc. -
Page 11: Recommended Layout (For Module)
VEX2-DIP168 User Manual 2.3 Recommended Layout (for module) Please keep the whole area empty between two matching connector on your carrier board. ICOP Technology Inc. -
Page 12: Pin Assignments & Jumper Setting
2.4 Pin Assignments & Jumper Setting 2.4.1 Pin assignment As the image above, there are two rows of connector on VEX2-DIP168; Pin A1~A84 is on the left and Pin B1~B84 is on the right. Please see the pin assignments on the next page. - Page 13 GPF1 GP31 GP32 GPF2 GPF3 GP33 GP34 GPF4 GPF5 GP35 GP36 GPF6 GPF7 GP37 GP20 PE1_CLK+ GP21 GP22 PE1_TX+ PE1_CLK- GP23 GP24 PE1_TX- PCIE_RST- GP25 GP26 PE1_RX+ PE0_CLK+ GP27 PE1_RX- PE0_CLK- GP10 GP11 PE0_TX+ PE0_RX+ GP12 GP13 ICOP Technology Inc.
-
Page 14: Pin Table List
Ethernet Interface LANTX-, LANRX-, LANTX+, LANRX+ ADC0_0, ADC0_1, ADC0_2, ADC0_3 ADC Interface ADC1_0, ADC1_1, ADC1_2, ADC1_3, ADC1_4, ADC1_5, ADC1_6, ADC1_7 Battery Power VBATT ADC Power AGND, AGND 3.3V Power VCC3_OUT 1.8V Power VCC1.8_OUT 5V Power Digital Ground ICOP Technology Inc. -
Page 15: Signal Description
DP and DM internally. USBD2- Universal Serial Bus Controller 0 Port 2. These are the serial data pair for USB Port 2. 15kΩ pull down resistors USBD2+ are connected to DP and DM internally. ICOP Technology Inc. - Page 16 Programmable Port 5[7:0]. PIin function is select by A8~A15 GP5[7:0] Programmable mechanism. This port support Programmable Bit Mux select by group. Programmable Port 6[7:0]. PIin function is select by B41~B48 GP6[7:0] Programmable mechanism. This port support Programmable Port Mux select by group. ICOP Technology Inc.
- Page 17 Programmable Port F[7:0]. PIin function is select by A51~A58 GPF[7:0] Programmable mechanism. This port support Programmable Port Mux select by group. Digital ground (10 pins) Pin# Function Type Description A2, A33, A50, A59, A73, A79, Digital Ground B15, B49, B66, B83 ICOP Technology Inc.
- Page 18 3.3V Power output. Maximum output: 400mA. Some VCC3_OUT devices on carrier board which need 3.3 V. 1.8V power output (1 pin) Pin# Function Type Description VCC1.8_ 1.8V Power output. Maximum output: 400mA. Some devices on carrier board which need 1.8V. ICOP Technology Inc.
-
Page 19: Programmable I/O Selection
VEX2-DIP168 User Manual 3 Programmable I/O Selection There are 16 ports which contain 124 pins I/O which are available freely to be assigned by you to meet your demand. 3.1 Programmable I/O overview ICOP Technology Inc. - Page 20 VEX2-DIP168 User Manual ICOP Technology Inc.
- Page 21 Port 6 to Port 15 are Port Mux, which means the whole port can only be selected to one function. For example, select the whole port for GPIO, but not 4 pins for GPIO and other 4 pins for other function. ICOP Technology Inc.
-
Page 22: Selection Table For I/O Function
LAN LED build-in Ethernet Keyboard PS/2 Keyboard Port Mouse PS/2 Mouse Port WDTOUT WatchDog timeout signal Clock output select from CLKOUT 14.318MHz /24MHz / 25MHz ISA Clock MTBF MTBF flag output HD Audio High Definition Audio Port ICOP Technology Inc. -
Page 23: Software Resources
User Manual 4 Software Resources 4.1 BIOS VEX2-DIP168 stores the BIOS in the Vortex86EX2 build-in SPI flash. The default BIOS is CoreBoot BIOS for the users who would like to edit/maintain by themselves; user can download the source from www.coreboot.org. -
Page 24: Adc
(SAR) architecture. The input range is between 0 and VCCA (3.3V) and operating voltage range is between 2.97V and 3.63V. 5.2 ADC Sample code For more detail regarding ADC and its sample code, please contact your ICOP sales representative. ICOP Technology Inc. -
Page 25: Evaluation Board
VEX2-DIP168 User Manual 6 Evaluation Board Please consider following three VEX2 series SBC from ICOP for evaluation. VEX2-6427: VEX2 3.5" SBC VEX2-6454: VEX2 PC/104 SBC ICOP Technology Inc. - Page 26 VEX2-DIP168 User Manual VEX2-6415: VEX2 Tiny SBC Please contact your ICOP sales representative for detail. ICOP Technology Inc.
- Page 27 Returned goods should always be accompanied by a clear problem description. Should you have questions about warranty and RMA service, please contact us directly. ICOP Technology Inc. Address: No. 15 Wugong 5th Road, Xinzhuang Dist. New Taipei City, Taiwan (R.O.C.) 24890...
