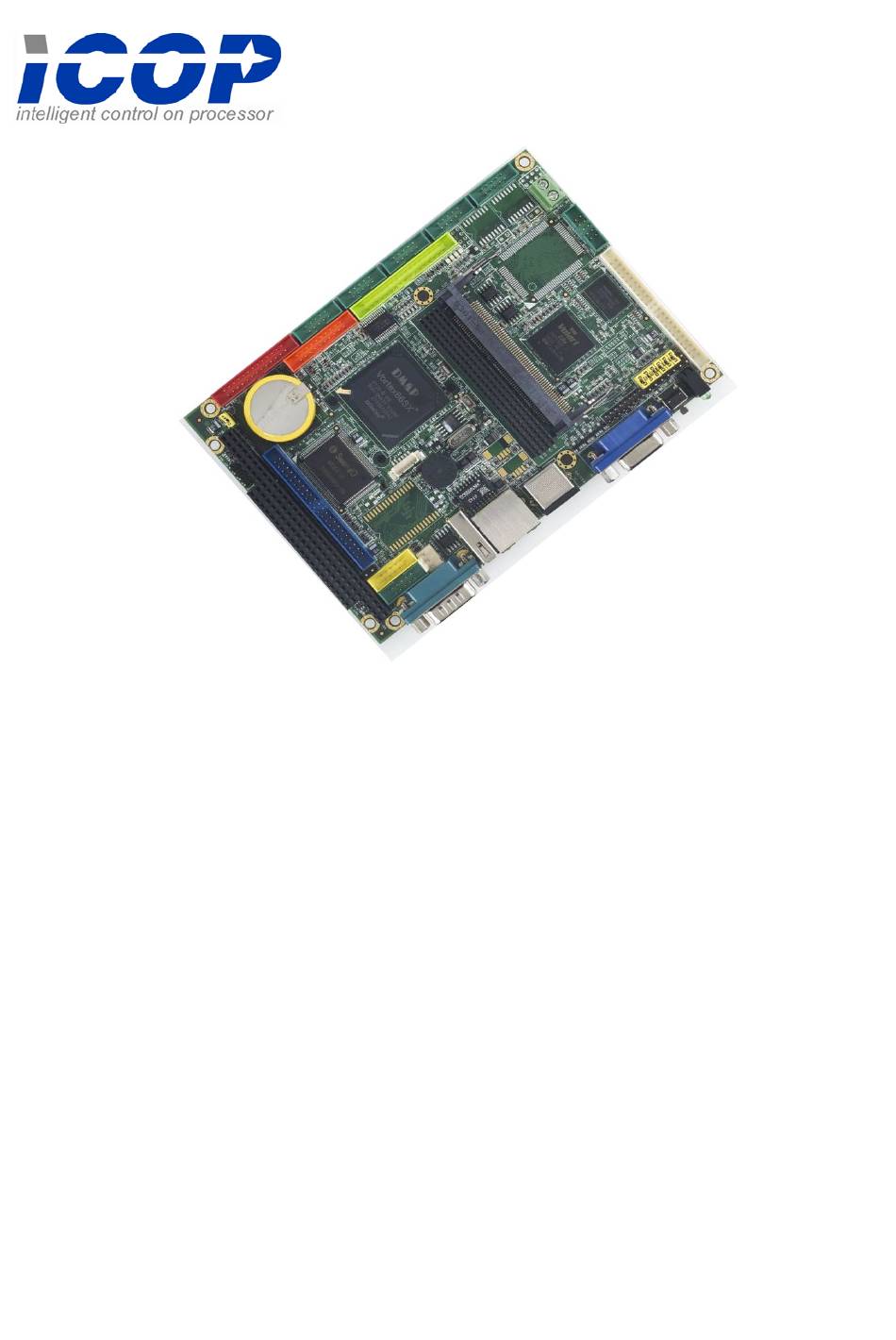

- Page 1 VSX-6127-V2 DM&P Vortex86SX 300MHz 3.5” CPU Module with 8S/3USB/VGA/LCD/LVDS/LAN/GPIO/CF/FDD 128MB DDR2 Onboard User’s Manual (Revision 1.0A)
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc.. ©Copyright 2007 ICOP Technology Inc.
-
Page 3: Table Of Contents
T a b l e C o n t e n t s T a b l e o f C o n t e n t s .............iii C h a p t e r 1 Introduction……………………………………………1 Packing List............1 Product Description .......... -
Page 4: Chapter 1 Introduction
Packing List Product Name Package Embedded Vortex86SX CPU All-in-One Board Manual & Drivers CD x 1 RS232 cable x 7 VSX-6127-V2 PRINT cable x1 IDE cable x 1 FDD cable x 1 USB cable x 1 (USB port x 2 GPIO cable x 1 YKB for Keyboard &... -
Page 5: Product Description
3.5” controller. The VSX-6127-V2 family of controller is designed as a plug in replacement, with backward compatibility to support legacy software to help extend existing product life cycle without heavy re-engineering. -
Page 6: Specifications
Specifications Features VSX-6127-V2 DM&P SoC CPU Vortex86SX- 300MHz Real Time Clock with Lithium Battery Backup Cache L1:16K I-Cache, 16K D-Cache BIOS AMI BIOS Bus Interface PC/104+ Standard Compliant System Memory 128/ 256MB DDR2 Onboard Watchdog Timer Software programmable from 30.5 us to 512 seconds x2... - Page 7 Flash Disk Support Onboard 2MB SPI Flash Disk (Driver: A) 44-pin IDE Flash Disk( EmbedDisk 16MB or above) Type I/II CF Card SRAM support 512KB (Optional) Power Requirement Single Voltage +5V @ 800mA Dimension 102 X 144mm (4.01 x 5.67 inches) Weight 148g Operating...
-
Page 8: Board Dimension
Board Dimension Vortex86SX™ 3.5” CPU Module Vortex86SX-6127-V2... -
Page 9: Chapter 2 Installation
(Note1: VI/O Default setting of PCI-104 connector is +5V) (Note2: COM2 RS232/422/485 is selected by BIOS setting) (Note3: J39 Default setting of JTAG Has to be Disable: Pin 1 & Pin 2 short) (Note4: VSX-6127-V2-256 is optional) Vortex86SX™ 3.5” CPU Module Vortex86SX-6127-V2... -
Page 10: Connectors & Jumpers Location
Connectors & Jumpers Location Connectors Vortex86SX™ 3.5” CPU Module Vortex86SX-6127-V2... - Page 11 Jumpers & LEDs Vortex86SX™ 3.5” CPU Module Vortex86SX-6127-V2...
-
Page 12: Connectors & Jumpers Summary
Connectors & Jumpers Summary Summary Table Description Type of Connections Pin nbrs. 44-pin Box Header, 2.0∅ ,22x2 CF Card Master/Slave Select 2-pin Pin Header, 2.54∅, 2x1 USB 2 USB connector 4-pin USB 1 10-pin Box Header,2.0∅ , 5x2 10/100Base-T Ethernet LAN 8-pin RJ45 Connector JTAG... - Page 13 44-pin Box Header,2.0∅ ,22x2 JTAG Disable (Default setting) 2-pin Pin Header, 2,54∅,1x2 Compact Flash 50-pin Type I/II CF Connector PWR_L POWER Active LED (Red) IDE_LE IDE Active LED (Green ) MTBF- MTBF-Out (Orange) LED-SMD BUZZER RESET SWITCH Vortex86SX™ 3.5” CPU Module Vortex86SX-6127-V2...
-
Page 14: Pin Assignments & Jumper Settings
Pin Assignments & Jumper Settings J1: IDE (44 Pins) Pin # Signal Name Pin # Signal Name IDERST IDED7 IDED8 IDED6 IDED9 IDED5 IDED10 IDED4 IDED11 IDED3 IDED12 IDED2 IDED13 IDED1 IDED14 IDED0 IDED15 IDEREQ IDEIOW IDEIOR ICHRDY IDEACK IDEINT IDESA1 IDECBLID IDESA0... - Page 15 J4: USB 1 Pin # Signal Name Pin # Signal Name LUSBD0- LUSBD1- LUSBD0+ LUSBD1+ GGND GGND J6: LAN Pin # Signal Name Pin # Signal Name J7: JTAG Pin # Signal Name Pin # Signal Name J8: RESET Pin # Signal Name Pin # Signal Name Reset J9: PS/2 KBD / Mouse...
- Page 16 J10: COM 1 (Optional: TTL) Signal Signal Pin # Pin # Name Name DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 J11: GPIO (Port 0 / Port 1) Pin # Signal Name Pin # Signal Name GP00 GP10 GP01 GP11 GP02 GP12 GP03 GP13...
- Page 17 J15: RS485 (Auto direction) Pin # Signal Name RS485＋ RS485－ J16: Power Connector (Terminal Block 5.0mm) Pin # Signal Name J17: COM3 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD3 RXD3 TXD3 DTR3 DSR3 RTS3 CTS3 J18: PRINT Pin # Signal Name Pin # Signal Name STB-...
- Page 18 J19: COM4 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD4 RXD4 TXD4 DTR4 DSR4 RTS4 CTS4 J20: FDD Pin # Signal Name Pin # Signal Name DENSEL INDEX\ MTRO\ DS1\ DS0\ MTR1\ DIR\ STEP\ TR0\ HDSEL\ DSKCHG\ Vortex86SX™...
- Page 19 J21: COM5 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD5 RXD5 TXD5 DTR5 DSR5 RTS5 CTS5 J22: COM7 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD7 RXD7 TXD7 DTR7 DSR7 RTS7 CTS7 J23: COM6 (Optional: TTL) Pin # Signal Name Pin # Signal Name DCD6...
- Page 20 J25: PC104 Connector – 64pin Pin # Signal Name Pin # Signal Name IOCHCHK * RESETDRV IRQ9 DRQ2 -12V +12V IOCHRDY SMEMW * SA19 SMEMR * SA18 IOW * SA17 IOR * SA16 DACK3 * SA15 DRQ3 SA14 DACK1 * SA13 DRQ1 SA12...
- Page 21 J26: PC104 Connector – 40pin Pin # Signal Name Pin # Signal Name MEMCS16 * SBHE * IOCS16 * SA23 IRQ10 SA22 IRQ11 SA21 IRQ12 SA20 IRQ15 SA19 IRQ14 SA18 DACK0 * SA17 DRQ0 MEMR * DACK5 * MEMW * DRQ5 DACK6 * DRQ6...
- Page 22 J29: PC/104 + VI/O Default setting: +5V If you need to use VI/O as +3.3V, please see the page 20. Pin # AD00 VI/O(+5V) AD02 AD01 AD05 AD04 AD03 C/BE0# AD07 AD06 AD09 AD08 AD11 VI/O(+5V) AD10 AD14 AD13 AD12 +3.3V C/BE1# AD15...
- Page 23 Please remove the 0 ohm (1206 type) of R260 and add 0 ohm (1206 type) on R261 Vortex86SX™ 3.5” CPU Module Vortex86SX-6127-V2...
- Page 24 J30: VGA Pin # Signal Name Pin # Signal Name R OUT G OUT B OUT DDCDAT HSYNC VSYNC DDCCLK J31: LVDS Pin # Signal Name Pin # Signal Name VCC3 (3.3V) VCC3 (3.3V) RxIN0- RxIN0+ RxIN1- RxIN1+ RxIN2+ RxIN2- CKIN- CKIN+ Vortex86SX™...
- Page 25 J32~J38: Display type setup (CRT /LCD) Connector Pin # Signal Name GPIOA GPIOB GPIOC GPIOD GPIOE GPIOF (Please refer to Appendix D, for Display type setup) Vortex86SX™ 3.5” CPU Module Vortex86SX-6127-V2...
- Page 26 J33: LCD (DVO) Connector Pin # Signal Name Pin # Signal Name +3.3V +3.3V LCLK LHSYNC LVSYNC LBACKL LVDDEN (Please refer to Appendix A, for TFT Flat Panel Data Output) J39: JTAG Disable (Default setting: Pin 1 & Pin 2 short) Pin # Signal Name Pin # Signal Name JTAG Disable...
-
Page 27: System Mapping
System Mapping Vortex86SX™ 3.5” CPU Module Vortex86SX-6127-V2... - Page 28 Vortex86SX™ 3.5” CPU Module Vortex86SX-6127-V2...
- Page 29 Vortex86SX™ 3.5” CPU Module Vortex86SX-6127-V2...
-
Page 30: Watchdog Timer
Watchdog Timer There are two watchdog timers in Vortex86SX/DX CPU. One is compatible with M6117D watchdog timer and the other is new. The M6117D compatible watchdog timer is called WDT0 and new one is called WDT1. We also provide DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 31: Gpio
GPIO (General Purpose Input / Output) 40 GPIO pins are provided by the Vortex86SX/DX for general usage in the system. All GPIO pins are independent and can be configured as inputs or outputs, with or without pull-up/pull-down resistors. We also offer DOS, Linux and WinCE example for your reference. For more technical support, please visit: http://www.dmp.com.tw/tech or download the PDF file:... -
Page 32: Spi Flash
SPI flash (Serial Peripheral Interface) As SPI Flash Serial Peripheral Interface) offers many benefits including: reduced controller pin count, smaller and simpler PCBs, reduced switching noise, less power consumption, and lower system cost Many of users may consider using a formatted SPI flash to boot for the system or emulate SPI flash as Floppy (A: Driver or B: Driver). -
Page 33: Chapter 3 Driver Installation
C h a p t e r Driver Installation The Vortex86SX processor also use external Display chip ““Volari™ Z9s” which is an ultra low powered graphics chipset with total power consumption at around 1-1.5 W. It is capable in providing VGA display output upto 1600x1200. With DVO interface, developers could easily connect flat Panel to support TFT and LVDS output. -
Page 34: Appendix
Appendix A. TFT Flat Panel Data Output Vortex86SX™ 3.5” CPU Module Vortex86SX-6127-V2... -
Page 35: Tft Flat Panel Support List
B. TFT Flat Panel Support List Size Brand Resolution Model No. 5.7” Data image 320x240 FG050701DSSWBG01 5.7” Optrex 320x240 55264GD057J-FW-ABN 5.7” TOSHIBA 320x240 LTA057A343F 5.7” Sharp 320x240 (QVGA / VGA) LQ057Q3DC02 5.7” Kyocera 320x240 (QVGA / VGA) TCG057QV1AC-G10 5.7” 320x240 (QVGA / VGA) PD057VU4 /U5 5.7”... - Page 36 Size Brand Resolution Model No. 8” 800x600 (TFT 24bits) A080SN01 V0 8.4” Sharp 800x600 LQ084S3DG01 10.4” 640x480 PD104VT1/VT2 10.4” 640x480 NL6448AC33-18 10.4” 640x480 NL6448AC33-29 10.4” 640x480 NL6448BC33-59 10.4” Sharp 640x480 LQ104V1DG51/DG61 10.4” Sharp 640x480 LQ10d368 11” Sharp 800x480 LQ110Y3DG01 12.1” 800x600 NL8060BC31-01 Vortex86SX™...
-
Page 37: Lvds Flat Panel Support List
LVDS Flat Panel Support Size Brand Resolution Model No. 3.5” 640x480 PD035VL1 5” 640x480 PD050VL1 6.5” 640x480 G065VN01 8.4” 800x600 G084SN03 8.9” 1024x600 A089SW01 8.9” 1024x600 CLAA089NA0ACW 8.9” HannStar 1024x600 HSD089IFW1 10.4” MITSUBISHI 800x600 AA104SG01 10.4” 800x600 G104SN02 10.4” Sharp 800x600 LQ104S1LG61 12.1”... -
Page 38: Flat Panel Hardware Setting
D. Flat Panel Hardware Setting: The Vortex86SX-6127-V2 offers the Hardware setting for the various TFT LCD Flat Panels support and please make sure the jumper setting (J32~J38) before you connect the LCD. Display type setup Connector Note: "C" means close; "X" means open Vortex86SX™... -
Page 39: Flat Panel Wiring And Lighting
Wiring LCD Cable Please refer to Page 23 (J33: LCD connector) and Page 31~36. Or for more LCD lighting and integration service, please contact our regional sales or mail to info@icop.com.tw you have any questions. Vortex86SX™ 3.5” CPU Module Vortex86SX-6127-V2... -
Page 40: Tcp/Ip Library For Dos Real Mode
Mity-Mite Serial Server, Web Camera Tiny Server and RSIP Serial Server. DSock is free for All ICOP products using M6117D/Vortex86/Vortex86SX/Vortex86DX CPU and ICOP also provide the business version of DSock for those customers who are using other x86 CPUs. -
Page 41: Bios Default Setting
BIOS Default setting If the system cannot be booted after BIOS changes are made, Please follow below procedures in order to restore the CMOS as default setting. Press “End” Key, when the power on Press <Del> to enter the AMI BIOS setup Press “F9”... -
Page 42: Warranty
Warranty This product is warranted to be in good working order for a period of one year from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
