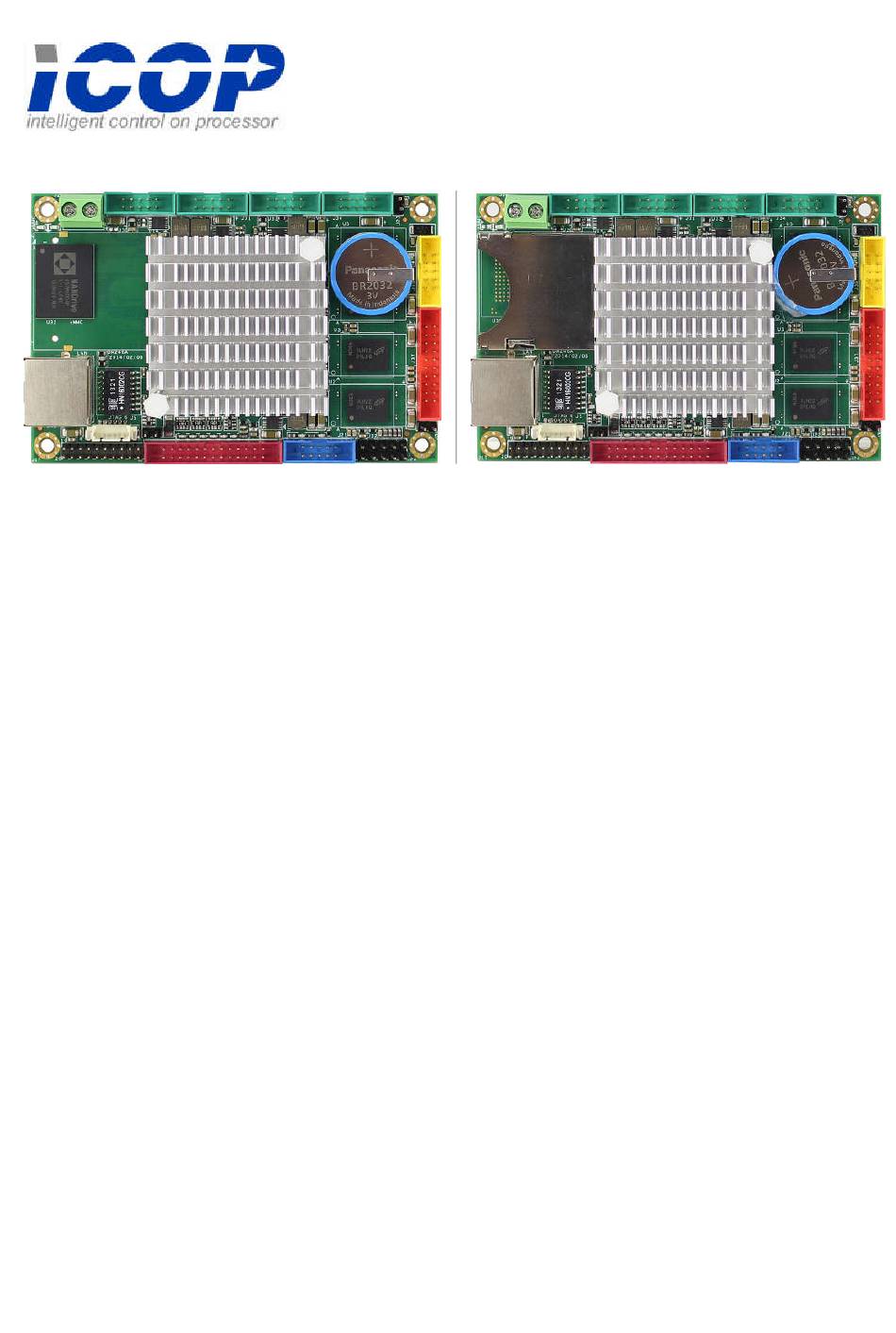

- Page 1 VDX2-6518-E / VDX2-6518-S DM&P Vortex86DX2 800MHz Tiny CPU Module with 4S/2USB/VGA/LVDS/LAN/eMMC or SD Card/PWMx8 1GB DDR2 Onboard User’s Manual (Revision 1.4A)
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted, in whole or in part, in any form or by any means without the prior written permission of the ICOP Technology Inc. Copyright 2014 ICOP Technology Inc.
-
Page 3: Table Of Contents
T a b l e C o n t e n t s T a b l e o f C o n t e n t s ............. iii C h a p t e r 1 Introduction……………………………………………1 Packing List ............1 Product Description .......... - Page 4 This page is blank...
-
Page 5: Table O F C O N T E N T S
Packing List Product Name Package Embedded Vortex86DX2 CPU All-in-One Board RS232 cable x 4 PRINTER cable x1 VDX2-6518 GPIO cable x1 USB cable x 1 (USB port x 2 VGA cable x 1 PS/2 Mouse cable x 1 PS/2 Keyboard cable x 1... -
Page 6: Product Description
Product Description The VDX2-6518, a low-power x86 embedded controller, is designed to meet tiny module specification, and is integrated with the following features. 800 MHz Vortex86DX2 SoC Onboard 4MB SPI Flash VGA, LVDS LCD support up to 2 watchdog timer ... -
Page 7: Specifications
Specifications Features VDX2-6518 DM&P SoC CPU Vortex86DX2- 800MHz Real Time Clock with Lithium Battery Backup Cache L1:16K I-Cache, 16K D-Cache L2:256KB Cache BIOS AMI BIOS System Memory 1GB DDR2 Onboard Software programmable from 30.5 us to 512 seconds x2 sets... -
Page 8: Board Dimension
Board Dimension Vortex86DX2-6518 Vortex86DX2 Tiny CPU Module... -
Page 9: Chapter 2 Installation
C h a p t e r 2 Installation Board Outline VDX2-6518-E VDX2-6518-S (Note1: COM2 RS232/485 is selected by BIOS setting) (Note2: GPIO has 8-bit available only (Optional)) Vortex86DX2-6518 Vortex86DX2 Tiny CPU Module... -
Page 10: Connectors Location
Connectors Location Connectors Vortex86DX2-6518 Vortex86DX2 Tiny CPU Module... -
Page 11: Connectors & Jumpers Summary
Connectors & Jumpers Summary Summary Table Description Type of Connections Pin nbrs. JTAG (For ICOP usage only) 6-pin Wafer, 1.25,1x6 J17 LVDS 20-pin Pin Header, 2.0, 10x2 J21 VGA 10-pin Pin Header, 2.0, 5x2 J22 PS/2 Keyboard 5-pin Box Header, 2.54,1x5... -
Page 12: Pin Assignments & Jumper Settings
Pin Assignments & Jumper Settings J17: LVDS (24-bit support only) Pin # Signal Name Pin # Signal Name VCC3(+3.3V) VCC3(+3.3V) RxIN0+ RxIN0- RxIN1- RxIN1+ RxIN2+ RxIN2- CKIN- CKIN+ RxIN3- RxIN3+ J21: VGA Pin # Signal Name Pin # Signal Name R OUT G OUT B OUT... - Page 13 J26: Power Connector (Terminal Block 5.0mm) Pin # Signal Name J30: COM1 (Optional: TTL ) Pin # Signal Name Pin # Signal Name DCD1- RXD1+ TXD1 DTR1 DSR1 RTS1 CTS1 J31: COM2 RS232 / 422 / 485 Pin # Signal Name Pin # Signal Name DCD2 / 422TX- / RS485-...
- Page 14 J37: GPIO Port 3 (Not available if SPI ROM is enabled in BIOS) Pin # Signal Name Pin # Signal Name GP30/SPICS GP31/SPICLK GP32/SPIDO GP33/SPIDI GP34 GP35 GP36 GP37 *Please see Page16 for detail J38: RESET Pin # Signal Name Pin # Signal Name RST_SW...
- Page 15 J46: PRINT Pin # Signal Name Pin # Signal Name STB- AFD- ERR- INIT- SLIN- ACK- BUSY SLCT Vortex86DX2-6518 Vortex86DX2 Tiny CPU Module...
-
Page 16: System Mapping
System Mapping Vortex86DX2-6518 Vortex86DX2 Tiny CPU Module... - Page 17 Vortex86DX2-6518 Vortex86DX2 Tiny CPU Module...
- Page 18 Vortex86DX2-6518 Vortex86DX2 Tiny CPU Module...
- Page 19 Vortex86DX2-6518 Vortex86DX2 Tiny CPU Module...
-
Page 20: Watchdog Timer
However, VDX2-6518 only offers 8 channels of GPIO, GPIO Port 3, for you to use. These channels are also occupied by onboard SPI flash disk. If you enable SPI flash disk in the CMOS setting, you will not be able to use any GPIO channel. -
Page 21: Spi Flash
New Age x86 SoC platform and we also offer the sample code of PWM which will guide the engineer to control the PWM functionality smoothly. For more inquire of this sample code that please contact our sales team or mail to: info@icop.com.tw Vortex86DX2-6518 Vortex86DX2 Tiny CPU Module... -
Page 22: Chapter 3 Driver Installation
For drivers, please visit DMP official website: http://dmp.com.tw/tech for them and if you cannot locate them, please mail us at info@icop.com.tw Vortex86DX2-6518 also supports most of the popular Linux distributions, for more detail information, please also visit DMP official website: http://dmp.com.tw/tech Vortex86DX2-6518 Vortex86DX2... -
Page 23: Appendix
G150XG01 B. Flat Panel Wiring and Lighting Hardware Before you connect the TFT LCD Flat Panel with VDX2-6518, please make sure the input Voltage of LCD is + 3.3V BIOS Please contact or e-mail our regional sales to get the special BIOS for any TFT LCD Flat Panels. -
Page 24: Tcp/Ip Library For Dos Real Mode
Application systems: Mity-Mite Serial Server, Web Camera Tiny Server and RSIP Serial Server. DSock is free for all ICOP products using M6117D/ Vortex86/ Vortex86SX/ Vortex86DX/ Vortex86DX2 CPUs and ICOP also provides the business version of DSock for those customers who are using other x86 CPUs. -
Page 25: Bios Default Setting
BIOS Default setting If the system cannot be booted after BIOS changes are made, Please follow below procedures in order to restore the CMOS as default setting. Press “End” Key, when the power on Press <Del> to enter the AMI BIOS setup ... -
Page 26: Warranty
Warranty This product is warranted to be in good working order for a period of one year from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.
