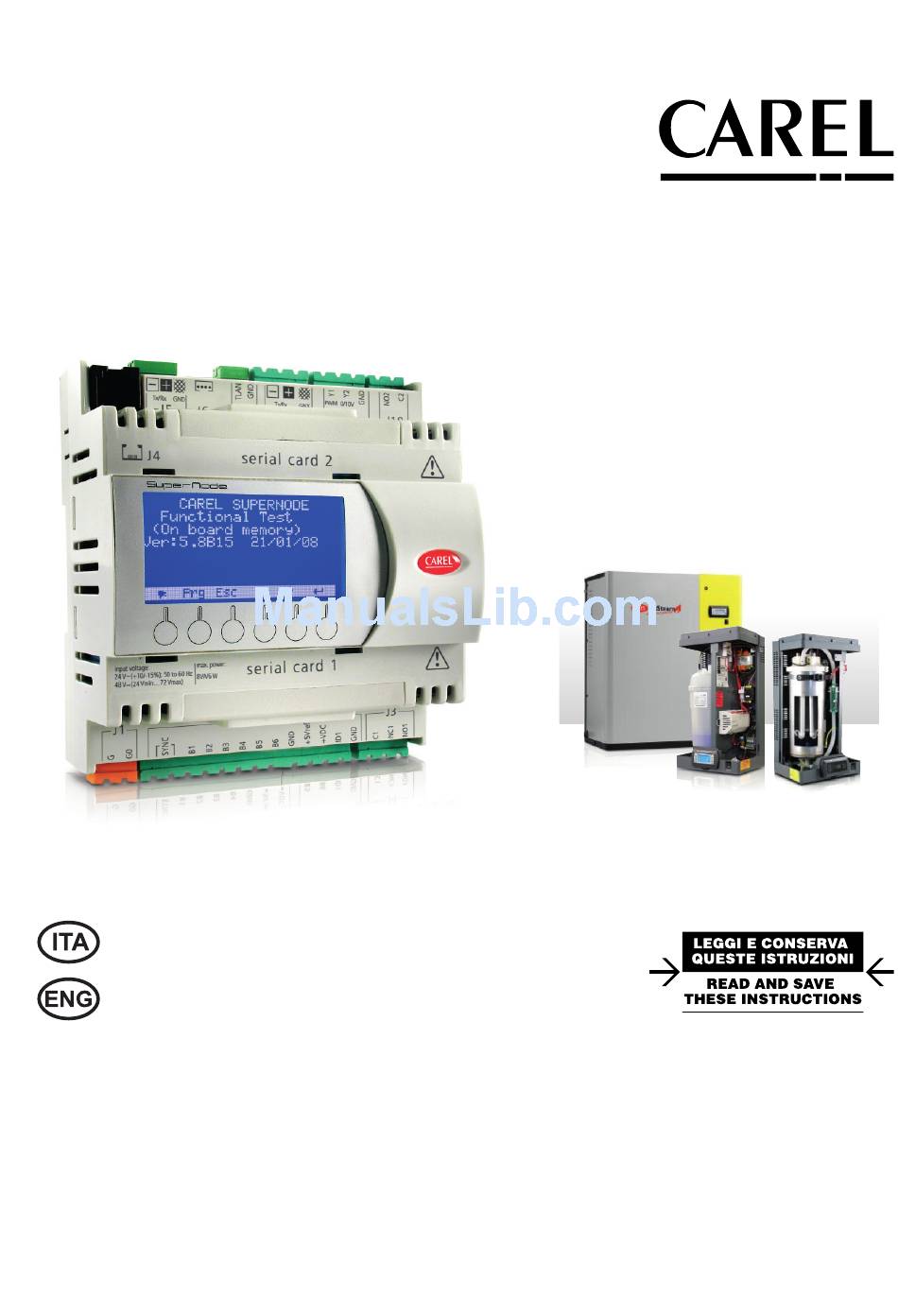

Foglio istruzioni Technical leafl et I n t e g r a t e d C o n t r o l S o l u t i o n s & E n e r g y S a v i n g s...
Page 2
Simboli: Attenzione: il simbolo nel coperchio plastico del controllo indica di riferirsi al presente foglio istruzione durante l’installazione elettrica. Symbol: Warning: the symbol in the plastic cover of the control, means to refertto this techinical leafl et, during the electrical installation.
Page 3
1a The module is DIN rail mounted, with 24 Vac power supply (+10%, -15%). Supernode for humidifi cation allows the possibility to select UR, UEX, UEW, UEY and UG humidifi ers, including a combination of diff erent models. For the address settings of the variables on the supervisor side, refer to the dynamic table, requesting from Carel the “FLSTDmUGWS_Supervisory_List_dinamic_table_supernode_for_humidifi cation”...
2. INSTALLATION Below is a description of the connectors used for connection and installation of Supernode: 2.1 Connectors PWM 0/10V Tx/Rx Tx/Rx ISOLATED seria l c ard 2 C622P028/R2 input voltage: max. power: seria l c ard 1 24 V (+10/-15%); 50/60 Hz 8 VA / 6 W 48 V (36Vmin…72 Vmax)
(Retry n. and ORT can be left as default) Note: the baud rate to be set always corresponds to the slowest device connected (for heaterSteam the baud rate is 9600). Menu path: Manufacturer Factory Settings +050003325 Supernode for humidifi cation - 1.0 - 20.06.2014...
Page 7
Menu path: Manufacturer Devices confi g 1-10 or Manufacturer Devices confi g 11-20 (depending on the device) Alarm settings: Enable alarms in the event of supervisor offl ine Menu path: Manufacturer Factory Settings +050003325 Supernode for humidifi cation - 1.0 - 20.06.2014...
