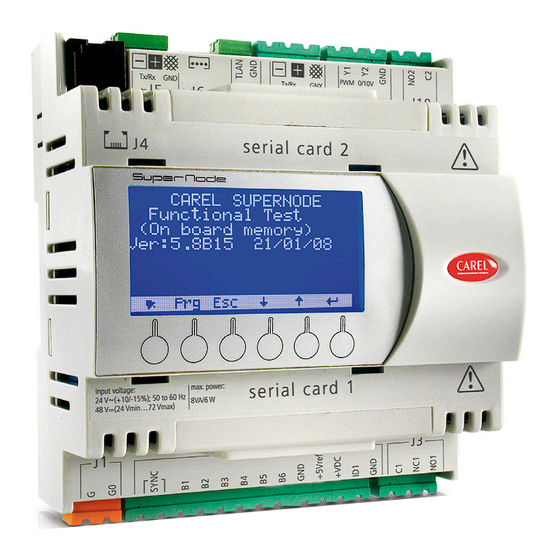

- Page 1 Electronic controller for humidification Technical Leaflet I n t e g r a t e d C o n t r o l S o l u t i o n s & E n e r g y S a v i n g s...
- Page 2 Symbol: Warning: The symbol in the plastic cover of the control means to refer to this technical leaflet during the electrical installation.
- Page 3 Seven pre-set templates allow the variables exchanged between the humidifier and the gateway to be addressed automatically, depending on the device selected during programming: simply specify the type of device and the number of devices connected. The built-in pGD on the Supernode or an external pGD1 terminal can be used for programming.
- Page 4 Mechanical fastening The Supernode is installed on a DIN rail. To fasten the unit to the DIN rail, press it lightly against the rail. The rear tabs will click into place, locking the unit to the rail. Removing the unit is just as simple, using a screwdriver through the release slot to lever and lift the tabs.
- Page 5 2 device 2 serial card 1 device n (n<=20) BACnet MS/TP ™ status RS485 – G N X RS485 PCO1000BA0 BACnet™ MSTP RS485 PCOS004850 interface RS485 serial card PCO1000WB0 -Ethernet™/BACnet™ interface card +08U003325 Supernode for humidification - 1.0 - 14.05.2015...
- Page 6 Use the “Alarm”, “Program”, “Esc”, “Down/Up”, and “Enter” keys. Note: depending on the model of Supernode, the buttons may differ as indicated here below. In typcial control mode, the button icons are displayed on the masks in the controller software.
- Page 7 5. Edit the model: The selected model can be edited Menu path: Manufacturer Devices config 1-10 6. Alarm settings: Enable alarms in the event of supervisor offline Menu path: Manufacturer Factory Settings +08U003325 Supernode for humidification - 1.0 - 14.05.2015...
- Page 8 • Using BACset on a computer and USB/485 Converter (see guides on using MS-TP startup and pCOnet/web cards). • Using the pGD display on the Supernode controller (see guide on BACnet BIOS menu). On the PGD; hold alarm & enter: other informationPCOWEB/NET CONFIGPCONET...
- Page 9 4. COMMUNICATING TO THE HUMIDIFIER(S) The Supernode for humidification allows the possibility to select UR, UEX, and UG humidifiers, including a combination of different models. For the address settings of the variables on the supervisor side, refer to the dynamic table (included in the USB Drive) “FLSTDmUGWS_Supervisory_List_dinamic_table_supernode_for_humidification”...
- Page 10 Note: +08U003325 Supernode for humidification - 1.0 - 20.06.2015...
- Page 11 Note: +08U003325 Supernode for humidification - 1.0 - 14.05.2015...
- Page 12 Agenzia / Agency: CAREL INDUSTRIES HQs Via dell’Industria, 11 - 35020 Brugine - Padova (Italy) Tel. (+39) 049.9716611 - Fax (+39) 049.9716600 e-mail: carel@carel.com - www.carel.com CAREL USA 385 South Oak Street Manheim, PA 17545 Tel. (717) 664-0500 - Fax (717) 664-0449...
