Tecsis - Manual instrument

Range of applications

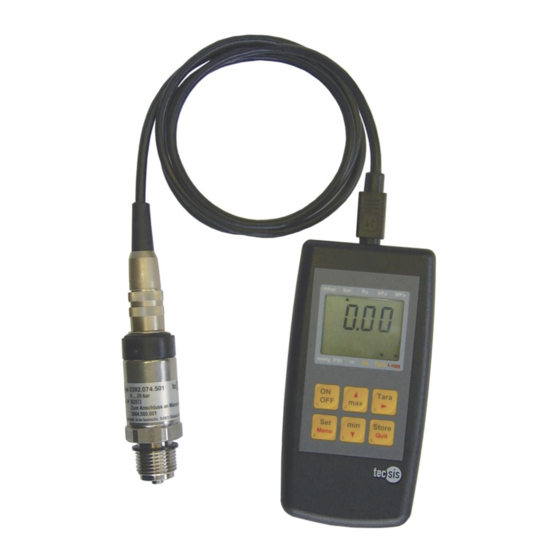

Portable manual instrument with battery operation for connection to external pressure transducer. The instrument automatically senses which
pressure range that the connected sensor has. Reading up to 100 times per second with values stored up to 1 hour's operating time. Memory for
highest and lowest measured values respectively, plus hold value memory. As an option there is a software program to access the stored values
as a graph on a computer.
products Pressure/Flow Pressure Pressure transducers Accessories
Battery operation with external pressure transducer
Accuracy 0.2%
Integrated data log with display of max./min.
Pressure range from 0...0.1 bar to 0...1,000 bar, also vacuum
WWW.OEM.CO.UK, INFORMATION@UK.OEM.SE, TEL: +44 (0) 116 284 9900, FAX: +44 (0) 116 284 1721
1 / 3

Advertisement

loading
Need help?

Need help?

Do you have a question about the E3904 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tecsis E3904

Summary of Contents for Tecsis E3904

  • Page 1: Range Of Applications

    Pressure/Flow Pressure Pressure transducers Accessories Tecsis - Manual instrument Battery operation with external pressure transducer Accuracy 0.2% Integrated data log with display of max./min. Pressure range from 0…0.1 bar to 0…1,000 bar, also vacuum Range of applications Portable manual instrument with battery operation for connection to external pressure transducer. The instrument automatically senses which pressure range that the connected sensor has.

  • Page 2: Technical Specification

    Technical specification Instrument, model E3904 Display 2 line LCD display, 4 digits/line. Accuracy ±0.2 % of full scale value ±1 digit Linearity and hysteresis Included in the above Updating 4 times/sec.“slow”, 100 times/sec.“fast” Functions Selectable logging of data: Cyclic: max. 5,400 incl. time Cyclic timer: selectable 1 to 3,600 sec.
  • Page 3 Dimensions Example of screenshot of optional program G-soft for PC Item number Recommended basic equipment: Hand control + pressure transducer including adapter cable and instrument case. For a more precise item number, contact OEM Automatic, product area Pressure & Flow. WWW.OEM.CO.UK, INFORMATION@UK.OEM.SE, TEL: +44 (0) 116 284 9900, FAX: +44 (0) 116 284 1721 3 / 3...
