Summary of Contents for SignaMax SC10010

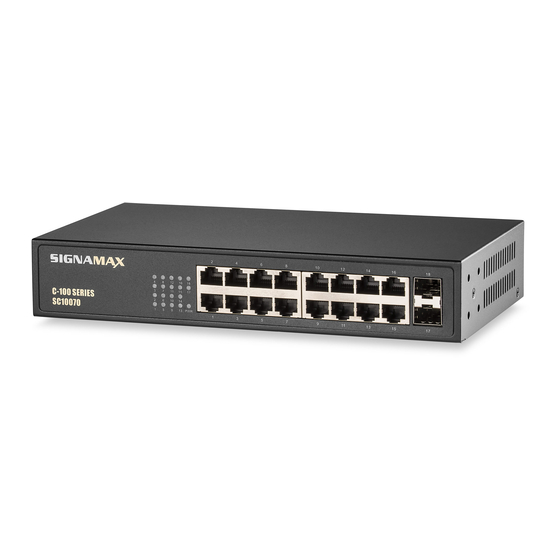

- Page 1 Quick Start Guide C-100 Series Switches...
- Page 2 Caution: Use only twisted-pair cables with RJ-45 connectors that conform to FCC standards. Caution: Installing the switch in a rack requires two people: One should position the switch in the rack, while the other secures it using the mounting screws. www.signamax.com...
- Page 3 (this document) and Warranty Card SC10100 8 Gigabit SC10110 4 Gigabit 1 Gigabit Note: The C-100 Series switches are for SC10120 8 SFP 2 Gigabit indoor use only. Note: Additional documentation can be SC10130 1 Gigabit obtained from www.signamax.com www.signamax.com...
-
Page 4: Mount The Switch
Note: The switch can also be installed on a Note: The device must be installed in a restricted desktop or shelf using the included adhesive access location. It should have a separate rubber foot pads. protective earthing terminal on the chassis. www.signamax.com... -
Page 5: Connect Power
Note: For International use, you may need to rack to secure the switch in the rack. change the AC line cord. You must use a line cord set that has been approved for the socket type in your country. www.signamax.com... - Page 6 1000BASE-SX (065-79SXMG) 1000BASE-SX Extended Distance (065-79SXEDMG) 1000BASE-LX (065-79LXMG) 1000BASE-EX (065-79LXEDMG) 1000BASE-ZX (065-79ZXMG) 1000BASE-EZX (065-79EZXMG) 3. As connections are made, check the port status LEDs to be sure the links are valid. See the LED description table on the next page. www.signamax.com...
- Page 7 The link is down A PoE device is connected and delivered PoE power PoE Error: short circuit or current BLINKING overload Doesn’t deliver PoE power Port has a valid 1000 Mbps link MODE Port has a valid 10/100 Mbps link www.signamax.com...
- Page 8 CONNECT WITH US 999 NW 159th Dr, Miami, FL 33169 www.signamax.com 800.446.2377 / 305.944.7710...
