TrueAlert ES Addressable UL Listed Multi-Candela Weatherproof Notification Appliances Installation Instructions
Wiring instructions
WARNING:
Ensure that all power is disconnected before starting the installation.
1.
At the electrical box, connect the contractor wiring to the CKT + and CKT - terminals at the front of the strobe unit.
2.
To ensure proper continuity, use a torque wrench to tighten the terminal block screws to 12-15 inch-pounds.
3.
Ensure that correct polarity is maintained for each strobe unit.
4.
Signal line circuit (SLC) wiring must be twisted pair (TWP). CKT terminals accept two wires: 12-18 American Wire Gauge (AWG) TWP.
IMPORTANT: Do not bring the conduit through the rear of the electrical box. Strip the lead insulation to 3/8 inches maximum.
Wall mount VO and A/V appliance
Wiring notes
• Assign a maximum of 63 devices to a circuit. The maximum devices with active appliances on a circuit is
50. The maximum wire resistance between appliances is 26 ohms. See the field wiring diagrams of the
driving compatible fire alarm control panel for further instructions.
• Notification appliances are rated using an individual module label.
• Maintain the correct polarity on the terminal connections.
Setting the address
Each addressable TrueAlert ES notification appliance has a unique address that is set using an eight-position DIP switch (SW1). Assign a unique SLC address in the range 1 to 127 (Figure 5). However, the total appliance
loading available may be less due to appliance current requirements.
To set the address, complete the following steps:
1.
Remove the cover from the device. See Figure 5.
2.
Use a non-metallic stylus, or the equivalent to set the switches.
3.
Record the set address.
To access the switch:
Page 2
Terminal 2
CKT+ input
Terminal 1
CKT- input
From compatible
SLC controller,
see notes
From compatible
SLC controller,
see notes

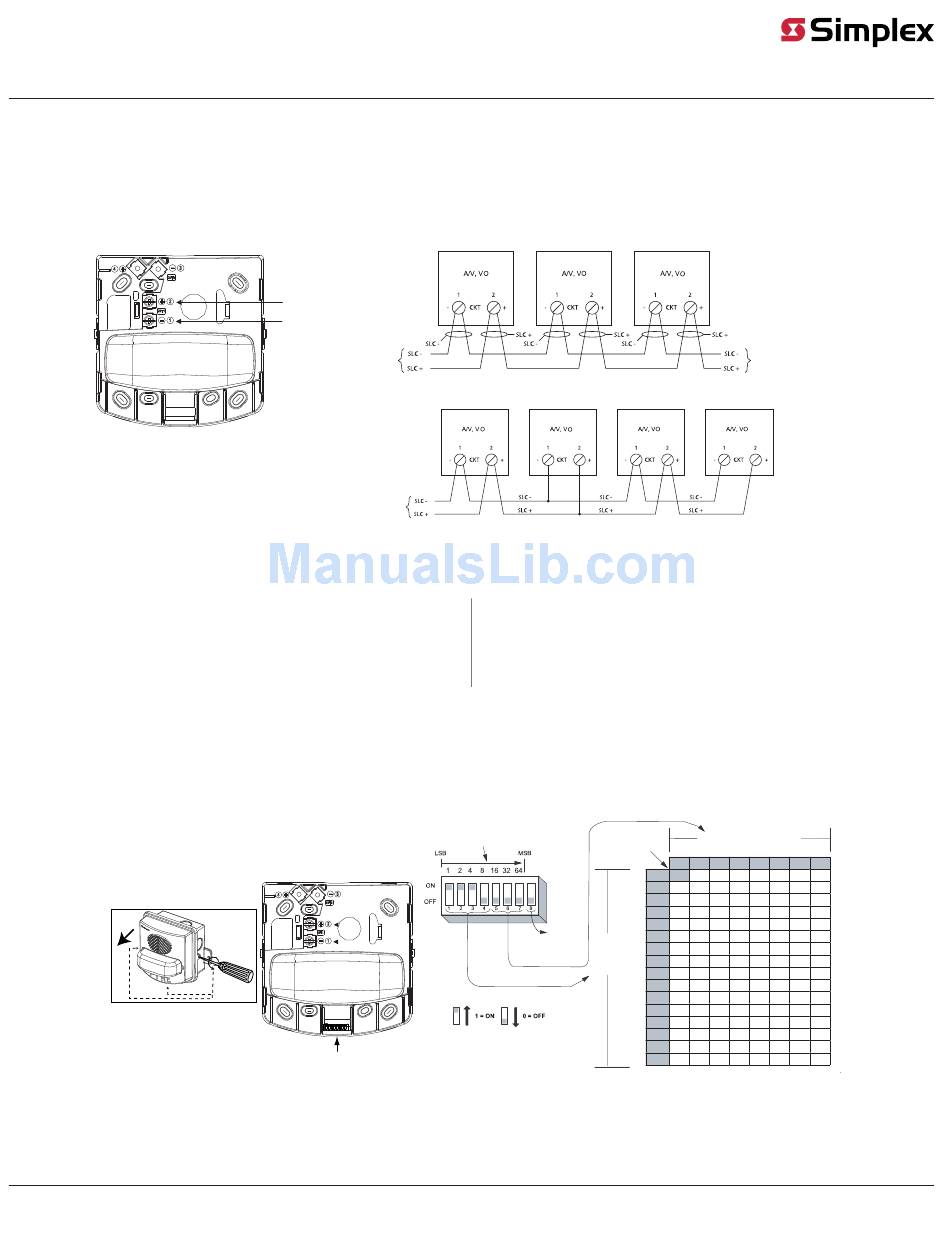

Fig 4: Wiring instructions
The DIP switch shown is
set at address 7
DIP switch values:
Address DIP switch (SW1)
Fig 5: Setting the DIP switch address
Class A wiring, see notes
• TrueAlert SLC wiring connections are supervised and power-limited.
• These appliances are rated to the operating voltage limits of 23-31 VDC. The appliance may fail to
operate as intended, and cause permanent damage to this equipment if it operates outside of these
limits.
• Only operate the TrueAlert ES A/V and VO devices using a compatible power supply.
• T-tapping is not permitted on Class A wiring.
Reserved for
future use
0000
1000
0100
1100
0010
0 = ALARM/
1010
1 = ALERT
DIP
0110
switches
1110
1 through 4
0001
1001
0101
1101
0011
1011
0111
1111
To the next appliance or
compatible SLC controller,
see notes
Class B wiring, see notes
DIP switches 5 through 7
000
100
010
110
001
101
011
111
0
16
32
48
64
80
96
112
1
17
33
49
65
81
97
113
2
18
34
50
66
82
98
114
3
19
35
51
67
83
99
115
4
20
36
52
68
84
100
116
5
21
37
53
69
85
101
117
6
22
38
54
70
86
102
118
7
23
39
55
71
87
103
119
8
24
40
56
72
88
104
120
9
25
41
57
73
89
105
121
10
26
42
58
74
90
106
122
11
27
43
59
75
91
107
123
12
28
44
60
76
92
108
124
13
29
45
61
77
93
109
125
14
30
46
62
78
94
110
126
15
31
47
63
79
95
111
127
579-1032 Rev F
