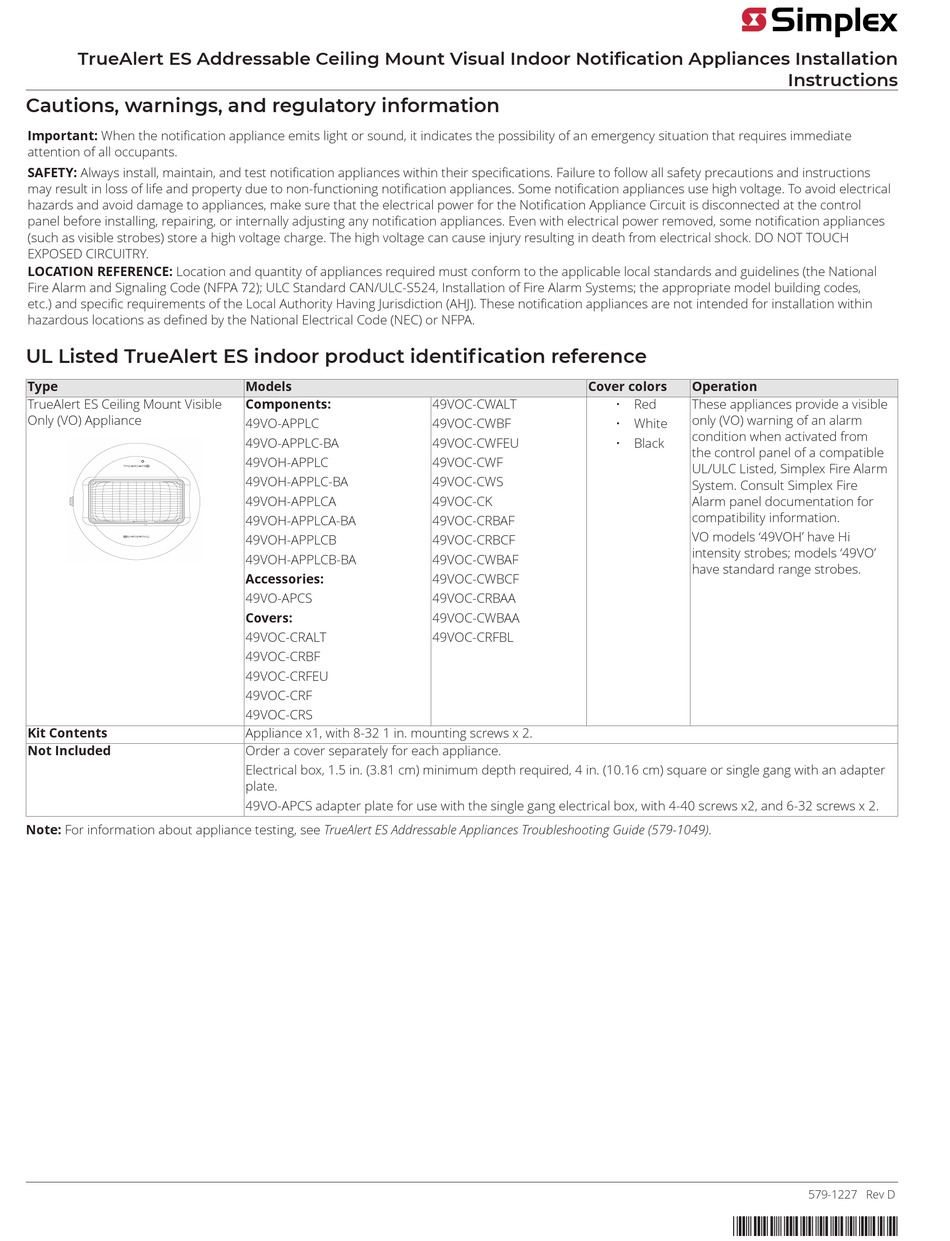

TrueAlert ES Addressable Ceiling Mount Visual Indoor Notification Appliances Installation
Cautions, warnings, and regulatory information
Important: When the notification appliance emits light or sound, it indicates the possibility of an emergency situation that requires immediate
attention of all occupants.
SAFETY: Always install, maintain, and test notification appliances within their specifications. Failure to follow all safety precautions and instructions
may result in loss of life and property due to non-functioning notification appliances. Some notification appliances use high voltage. To avoid electrical
hazards and avoid damage to appliances, make sure that the electrical power for the Notification Appliance Circuit is disconnected at the control
panel before installing, repairing, or internally adjusting any notification appliances. Even with electrical power removed, some notification appliances
(such as visible strobes) store a high voltage charge. The high voltage can cause injury resulting in death from electrical shock. DO NOT TOUCH
EXPOSED CIRCUITRY.
LOCATION REFERENCE: Location and quantity of appliances required must conform to the applicable local standards and guidelines (the National
Fire Alarm and Signaling Code (NFPA 72); ULC Standard CAN/ULC-S524, Installation of Fire Alarm Systems; the appropriate model building codes,
etc.) and specific requirements of the Local Authority Having Jurisdiction (AHJ). These notification appliances are not intended for installation within
hazardous locations as defined by the National Electrical Code (NEC) or NFPA.
UL Listed TrueAlert ES indoor product identification reference
Type

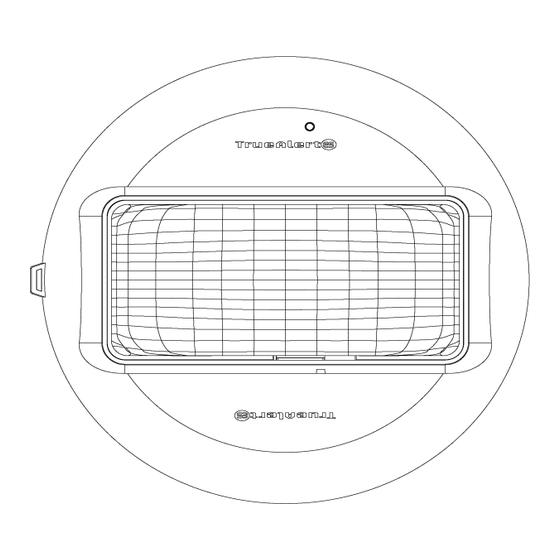

TrueAlert ES Ceiling Mount Visible
Only (VO) Appliance
Kit Contents
Not Included
Note: For information about appliance testing, see TrueAlert ES Addressable Appliances Troubleshooting Guide (579-1049).
Models
Components:
49VO-APPLC
49VO-APPLC-BA
49VOH-APPLC
49VOH-APPLC-BA
49VOH-APPLCA
49VOH-APPLCA-BA
49VOH-APPLCB
49VOH-APPLCB-BA
Accessories:
49VO-APCS
Covers:
49VOC-CRALT
49VOC-CRBF
49VOC-CRFEU
49VOC-CRF
49VOC-CRS
Appliance x1, with 8-32 1 in. mounting screws x 2.
Order a cover separately for each appliance.
Electrical box, 1.5 in. (3.81 cm) minimum depth required, 4 in. (10.16 cm) square or single gang with an adapter
plate.
49VO-APCS adapter plate for use with the single gang electrical box, with 4-40 screws x2, and 6-32 screws x 2.
Cover colors
49VOC-CWALT
49VOC-CWBF
49VOC-CWFEU
49VOC-CWF
49VOC-CWS
49VOC-CK
49VOC-CRBAF
49VOC-CRBCF
49VOC-CWBAF
49VOC-CWBCF
49VOC-CRBAA
49VOC-CWBAA
49VOC-CRFBL
Instructions
Operation
• Red
These appliances provide a visible
only (VO) warning of an alarm
• White
condition when activated from
• Black
the control panel of a compatible
UL/ULC Listed, Simplex Fire Alarm
System. Consult Simplex Fire
Alarm panel documentation for
compatibility information.
VO models '49VOH' have Hi
intensity strobes; models '49VO'
have standard range strobes.
*05791227D*
579-1227 Rev D
