Summary of Contents for Minuteman TRS17-220

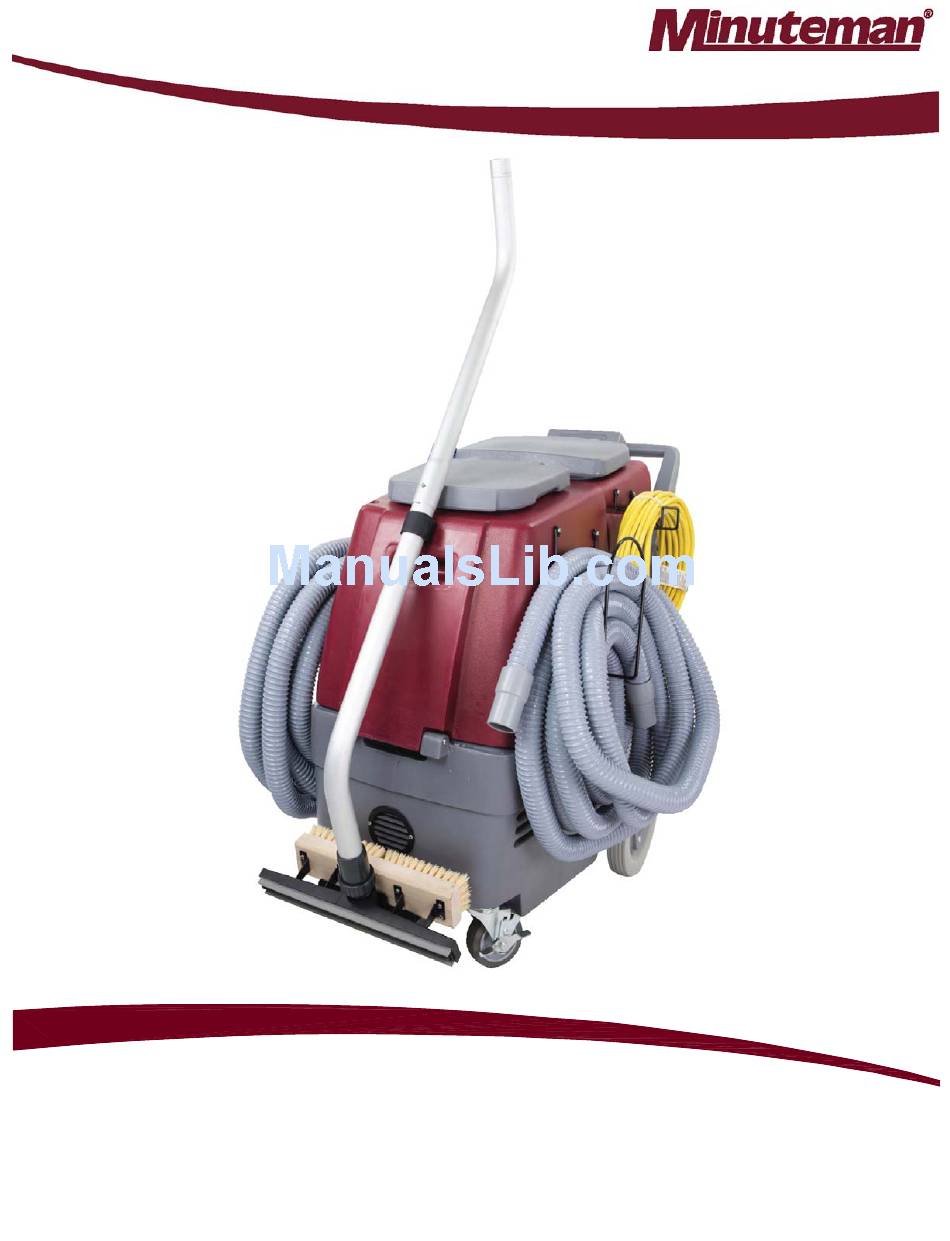

- Page 1 Parts and Instruction Manual TRS17-220 Total Recovery System...
- Page 2 Technical Specifications Technical Specifications Model: Model: SPECI FICATIONS: TRS17-220 TRS17-220 Model TRS17-220 Solution Tank 17 gallon Recovery Tank 15 gallon Vacuum Motor Single 3-stage Pump 600 psi/.85 GPM – 480 psi nozzle Water Lift 120” Tank Construction Polyethylene Baseplate ¼” aluminum Rear Wheels 10”...
-
Page 3: Table Of Contents
INSPECTION................SAFETY INSTRUCTIONS............GROUNDING................MAINTENANCE................MACHINE OVERVIEW..............OPERATION................. UPPER ASSEMBLY..............UPPER ASSEMBLY BOM............UPPER ASSEMBLY BOM (PAGE 2)........... LOWER ASSEMBLY..............LOWER ASSEMBLY BOM (PAGE 1).......... LOWER ASSEMBLY BOM (PAGE 2).......... LOWER ASSEMBLY BOM (PAGE 3).......... INCLUDED ACCESSORIES............WARRANTY................. Parts and Instruction Manual - TRS17 Total Recovery System... -
Page 4: Inspection
MINUTEMAN’s liability ceases when the carrier picks up the shipment. However, our customer service staff will be happy to furnish any information needed in connection with the claim and will attempt to expedite a resolution. -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS FOLLOWING WARNINGS AND INSTRUCTIONS WILL VOID THE WARRANTY. WARNING! The machine was designed for use on hard surfaces, applications as per instructions and recommendations written in this manual. Any deviation from its proper use or purpose and the consequential damage that may occur is the sole responsibility of the end user. - Page 6 Do not expose machine to freezing temperatures. All repairs must be done by an authorized MINUTEMAN repair station. Do not use replacement parts other than original MINUTEMAN parts. Do not allow your spray stream to remain in one fixed location as surface damage may occur.
-
Page 7: Grounding
GROUNDING GROUNDING GROUNDING INSTRUCTIONS: This piece of equipment must be grounded. Should an electrical malfunction occur, grounding provides a path of least resistance for electrical current- reducing the risk of electric shock. This piece of equipment is furnished with a cord that has a grounding conductor and grounding plug. The grounded plug must only be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. -
Page 8: Maintenance
MAINTENANCE MAINTENANCE MAINTENANCE: This TRS-17 has been engineered and built to require minimum maintenance. But like any machine, it does require some care to keep it in optimum working condition. Careful attention to these maintenance instructions will give you maximum operating performance and life expectancy of the machine. CAUTION: Disconnect the power cord from the outlet before doing any clean up or maintenance on the machine 1. - Page 9 CORD STORAGE: While not in use, storage can be accomplished by winding cord around handle assy. Cord should be completely unwound during operation. CORD SAFETY Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing Do not use with damaged cord or plug.
-
Page 10: Machine Overview
MACHINE OVERVIEW 1. Handle- Used to maneuver and position the TRS-17. Contains switch box (For switchbox, see #17) 2. Recovery tank & lid- Lid allows access to recovery tank and creates a seal to ensure suction. Recovery tank collects waste water. 3. - Page 11 Parts and Instruction Manual - TRS17 Total Recovery System Page 11...
-
Page 12: Operation
OPERATION OPERATION OPERATION Assembling the accessory racks: Assembling the accessory racks: Parts and Instruction Manual - TRS17 Total Recovery System Page 12 Parts and Instruction Manual - TRS17 Total Recovery System Page 14 Parts and Instruction Manual - TRS17 Total Recovery System Page 14... - Page 13 �h������t��a���e���e�ed�����������re�������t������t�����ated����the��a������the��a�h��e���he����t� �������e����r�ard�������t����������the�ha�d�e����������eed�t����e��the����t���rther�������a��re�ea�e�the� �a�����h��e��������r���the��a�e����the��a�������ate�t��the���tt������the�re���er��ta����������e����� the�h��e���a���� system: Remove the semi-clear hose from the bottle cap (#8 on page 11). Select the appropriate metering tip for the dilution required and thread it into the tube on the bottle cap. Parts and Instruction Manual - TRS17 Total Recovery System Page 13 Parts and Instruction Manual - TRS17 Total Recovery System Page 15...
- Page 14 Chemical feed system and hard surface cleaning: The chemical feed system is designed to deliver accurate chemical dilution for touchless surface cleaning. To clean hard surfaces: 1. Fill the solution tank of your TRS-17 with sufficient water for the task at hand. 2.
- Page 15 NOTES Parts and Instruction Manual - TRS17 Total Recovery System Page 15...
-
Page 16: Upper Assembly
UPPER ASSEMBLY Parts and Instruction Manual - TRS17 Total Recovery System Page 16... -
Page 17: Upper Assembly Bom
UPPER ASSEMBLY BOM UPPER ASSEMBLY BOM (page 1) BILL OF MATERIAL ITEM PART # DESCRIPTION 10989-2A BALL FLOAT A00052 90 DEGREE ELBOW, .25" MP X .25" FP A00060 BARB, .375" X .25" MPT, BRASS A00124 LOCKNUT, .25NPT, BRASS A00139 BARB, .25 X .25MP, BRASS A13881 CHECK VALVE A90004... -
Page 18: Upper Assembly Bom
LID, RECOVERY TANK F11786-1-MM HANDLE F11787-1-MM SOLUTION TANK F11788-1-MM RECOVERY TANK F11791-1-MM LID, SOLUTION TANK H13699 DECAL, MINUTEMAN, WHITE J00650 SCREW CLAMP #24 1.25 INCH K00665-1 1.5" HOSE ADAPTER K00666 1-1/2" 90 DEGREE ELBOW K00672 PVC PIPE, 1.5" SCH40, 1.3125' K00672-1 PVC PIPE, 1 1/2"... -
Page 19: Lower Assembly
LOWER ASSEMBLY Parts and Instruction Manual - TRS17 Total Recovery System Page 19... -
Page 20: Lower Assembly Bom
LOWER ASSEMBLY BOM (page 1) LOWER ASSEMBLY BOM (page 1) BILL OF MATERIAL ITEM PART # DESCRIPTION HOSE ASSEMBLY J00580 HIGH PRESSURE/TEMP HOSE .25" ID X 10" J00660 SWAGE FITTING, .25" FP HOSE ASSEMBLY, .25" MP X .25" FP, 10" L J00580 HIGH PRESSURE/TEMP HOSE .25"... -
Page 21: Lower Assembly Bom
LOWER ASSEMBLY BOM (page 2) LOWER ASSEMBLY BOM (page 2) BILL OF MATERIAL ITEM PART # DESCRIPTION B02229 BRIDGE RECTIFIER, 25A B11606 STRAIN RELIEF, PIGTAIL B11821 STRAIN RELIEF B11832 STRAIN RELIEF NUT B02218 POWERCORD C00233 FLAT WASHER, USS, SAE, .25" ID C00261 HEX NUT, 1/4-20 C00273... -
Page 22: Lower Assembly Bom
LOWER ASSEMBLY BOM (page 3) LOWER ASSEMBLY BOM (page 3) BILL OF MATERIAL ITEM PART # DESCRIPTION E11128 DRAIN VALVE GASKET E11169 GASKET, VACUUM MOTOR E13867 SANDWICH MOUNT, NEOPRENE F11178-1 INTERCOOLER, SINGLE PORT F11789-1-MM BASE F11790-1-MM COVER PLATE, HEATER PORT F13820 LOUVER, 3", BLACK MOTOR, VACUUM... -
Page 23: Included Accessories
INCLUDED ACCESSORIES INCLUDED ACCESSORIES Included Accessories 1. Part# 334ACH-2 2 piece wand and reversible brush/squeegee head assembly. For scrubbing on one side and picking up water on the other. Connects to hose #4 on this page. 2. Part# K13686 “Gulper” tool used to extract large volumes of water. Connects to hose #4 on this page. -
Page 24: Warranty
Minuteman International, Inc. warrants to the original purchaser/user that the product is free from defects in workmanship and materials under normal use. Minuteman will, at its option, repair or replace without charge, parts that fail under normal use and service when operated and maintained in accordance with the applicable operation and instruction manuals. - Page 25 Model Parts Labor Poly Travel** Cord Electric Group 5yrs 12yrs 90 days Battery Auto Scrubbers (incl. on board 5yrs 3yrs 12yrs 90 days charger) Battery and Manual Sweepers 3yrs 3yrs 12yrs 90 days Exceptions……. Model Parts Labor Poly Travel** Port A Scrub, all models (incl. on board 6months 12yrs 90 days...
- Page 26 “Excellence Meets Clean” Minuteman is a Full Line Manufacturer of Sweepers and Scrubbers, for Industrial Facilities. 14N845 U.S. Route 20, Pingree Grove, IL 60140 USA Phone (800) 323-9420 - www.minutemanintl.com A Member of the Hako Group 988763 REV. A 10/17...
