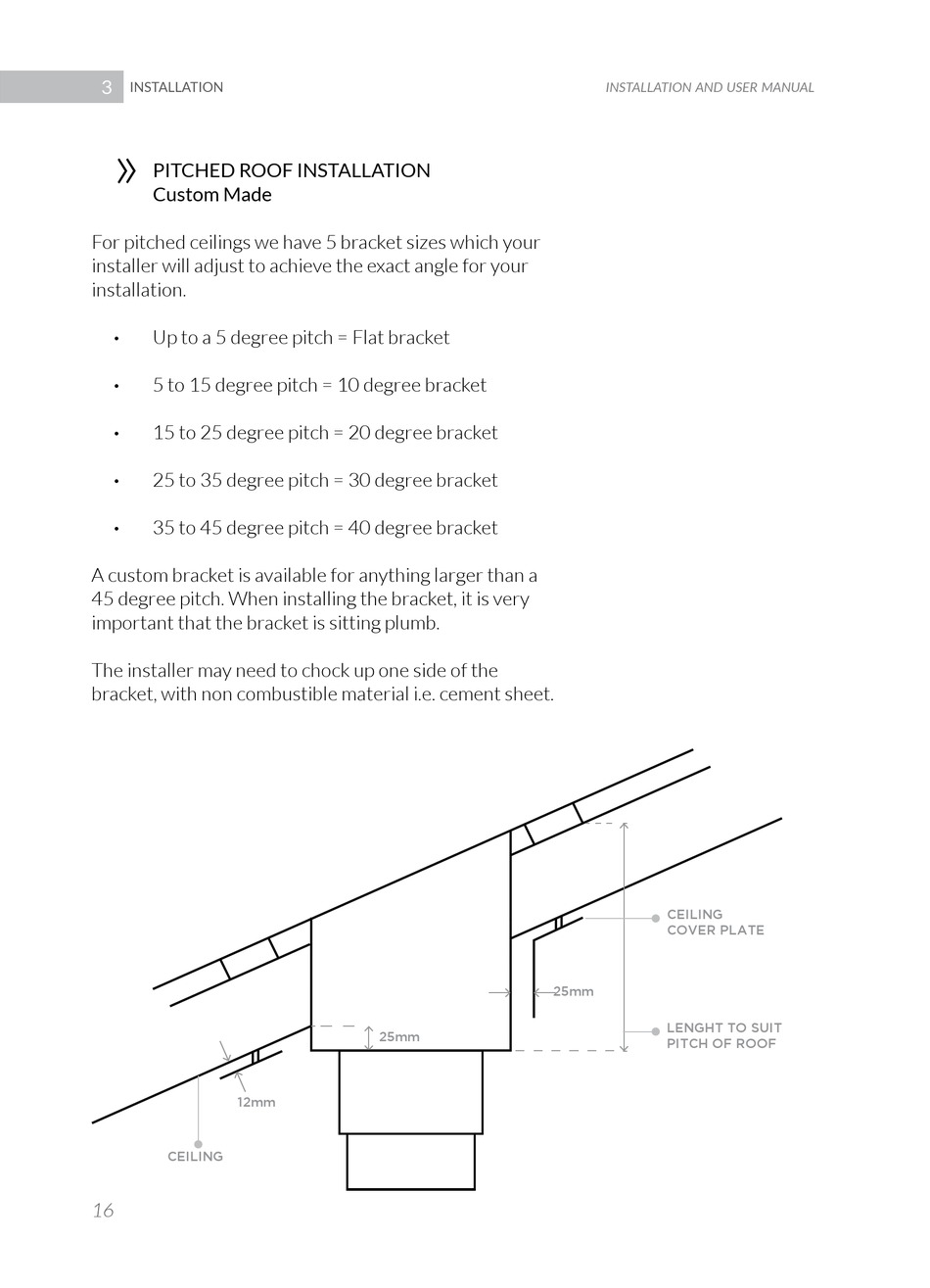

PITCHED ROOF INSTALLATION
Custom Made
For pitched ceilings we have 5 bracket sizes which your
installer will adjust to achieve the exact angle for your
installation.
·
Up to a 5 degree pitch = Flat bracket
·
5 to 15 degree pitch = 10 degree bracket
·
15 to 25 degree pitch = 20 degree bracket
· 25 to 35 degree pitch = 30 degree bracket
·
35 to 45 degree pitch = 40 degree bracket
A custom bracket is available for anything larger than a
45 degree pitch. When installing the bracket, it is very
important that the bracket is sitting plumb.
The installer may need to chock up one side of the
bracket, with non combustible material i.e. cement sheet.
12mm
ceiling
16
25mm
installation and user manual
ceiling
cover plate
25mm
lenght to suit
pitch of roof
