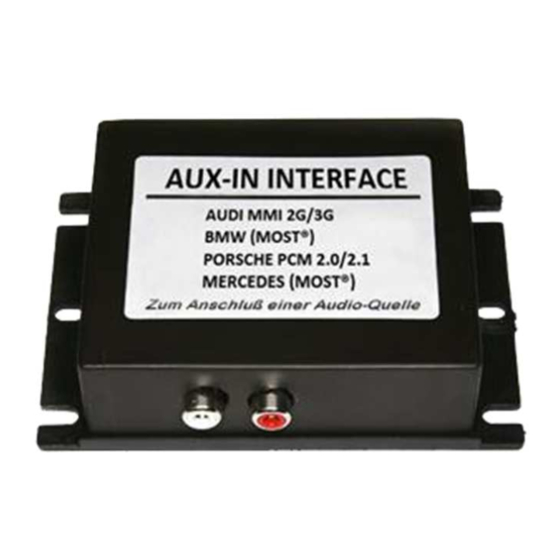

AUX-In Interface
AUX-101
Audi MMI 2G HIGH
Information
Changes/updates of the vehicle's software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.

1. Prior to installation

Read the manual prior to installation. Technical knowledge is necessary for installation. The
place of installation must be free of moisture and away from heat sources.
1.1.

Delivery contents

Take down the SW - version and HW - version of the interface boxes,
and store this manual for support purposes.
AUX - 101
HW_____ SW_____
0
Version 12.08 .20 10
AUX - 110

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AUX-101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Caraudio-Systems AUX-101

Summary of Contents for Caraudio-Systems AUX-101

  • Page 1 AUX-In Interface AUX-101 Audi MMI 2G HIGH Information Changes/updates of the vehicle’s software can cause malfunctions of the interface. We offer free software-updates for our interfaces for one year after purchase. To receive a free update, the interface must be sent in at own cost. Labor cost for and other expenses involved with the software-updates will not be refunded.
  • Page 2 1.2. Check compatibility of vehicle and accessories Requirements Navigation/Radio Audi MMI 2G High Limitations Factory CD-changer One factory CD-changer can be installed additionally. 2. Installation Switch off ignition and disconnect the vehicle’s battery! The interface needs a permanent 12V source. If power source is not taken directly from the battery, the connection has to be checked for being start-up proven and permanent.

  • Page 3: Specifications

    The AUX-110 emulates a factory CD-changer and is recognized as such by the head-unit. The AUX-input is activated by playing CD1 on the head-unit. Note: On Audi with one factory CD-changer installed, the AUX-101 emulates a second factory CD-changer. Play CD7 to activate AUX-input. 4. Specifications Operation voltage 10.5 –...
