TV-Free
Video-in-motion Interface
TF-MYGIG
Compatible with Chrysler C300,
Dodge and Jeep vehicles
with MYGIG navigation systems
Legal Information
By law, watching moving pictures while driving is prohibited, the driver must not be
distracted. We do not accept any liability for material damage or personal injury resulting,
directly or indirectly, from installation or operation of this product. This product should only
be used while standing or to display fixed menus or rear-view-camera video when the
vehicle is moving, for example the MP3 menu for DVD upgrades.
Changes/updates of the vehicle's software can cause malfunctions of the interface. We
offer free software-updates for our interfaces for one year after purchase. To receive a free
update, the interface must be sent in at own cost. Labor cost for and other expenses
involved with the software-updates will not be refunded.
Version 19.07.2019
TF-MYGIG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TF-MYGIG and is the answer not in the manual?

Questions and answers

Summary of Contents for Caraudio-Systems TF-MYGIG

  • Page 1 TV-Free Video-in-motion Interface TF-MYGIG Compatible with Chrysler C300, Dodge and Jeep vehicles with MYGIG navigation systems Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product.

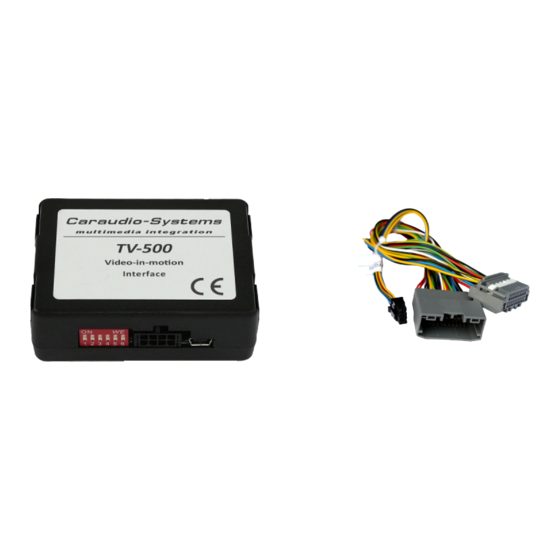

  • Page 2 1.1. Delivery contents Take down the SW-version and HW-version of the interface boxes, and store this manual for support purposes. Harness CAN-box TV-500 TV-MYGIG HW_____ SW_____ Version 19.07.2017 TF-MYGIG...
