Cleaning The Filter - Gtech ATF024 Operating Manual

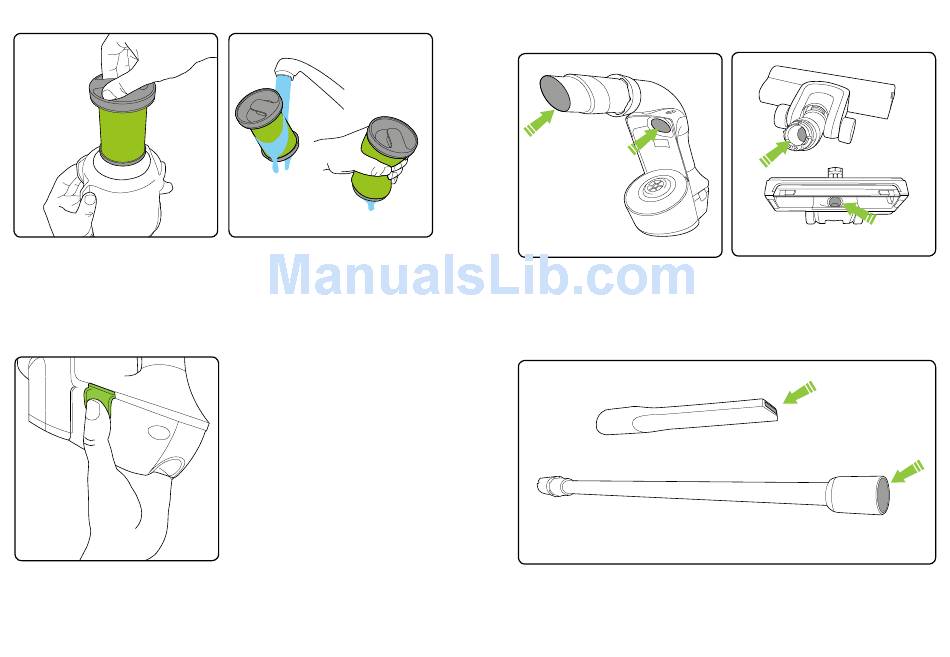

Cleaning the filter

Remove the filter by pulling it from the top
of the bin. Tap the dirt from the filter and tip
any dirt from the filter housing. Wash the
filter if necessary.
Removing the battery
Press the green buttons and pull to remove
the battery. The battery can be charged on
or off the main unit. If you want to buy a
spare battery go to www.gtech.co.uk
or call 01905 345 891
10
Wash the filter under a tap, squeeze it out
then let it dry completely before using it.
(You can get more at www.gtech.co.uk)
Never put the bin back without
the filter inside. You could damage
the motor.
If the suction is low when the bin is empty and filter is clean...
you have a blockage.
Remove the battery & bin from the body
and look through both ends of the tube.
Remove any blockages.
The extension tube and crevice tool can sometimes block too.
The powered floor head can also
get blocked. To check for blockages
thoroughly, remove the brush bar.
(See page 8)
11
