Summary of Contents for Gtech POWER FLOOR ATF038

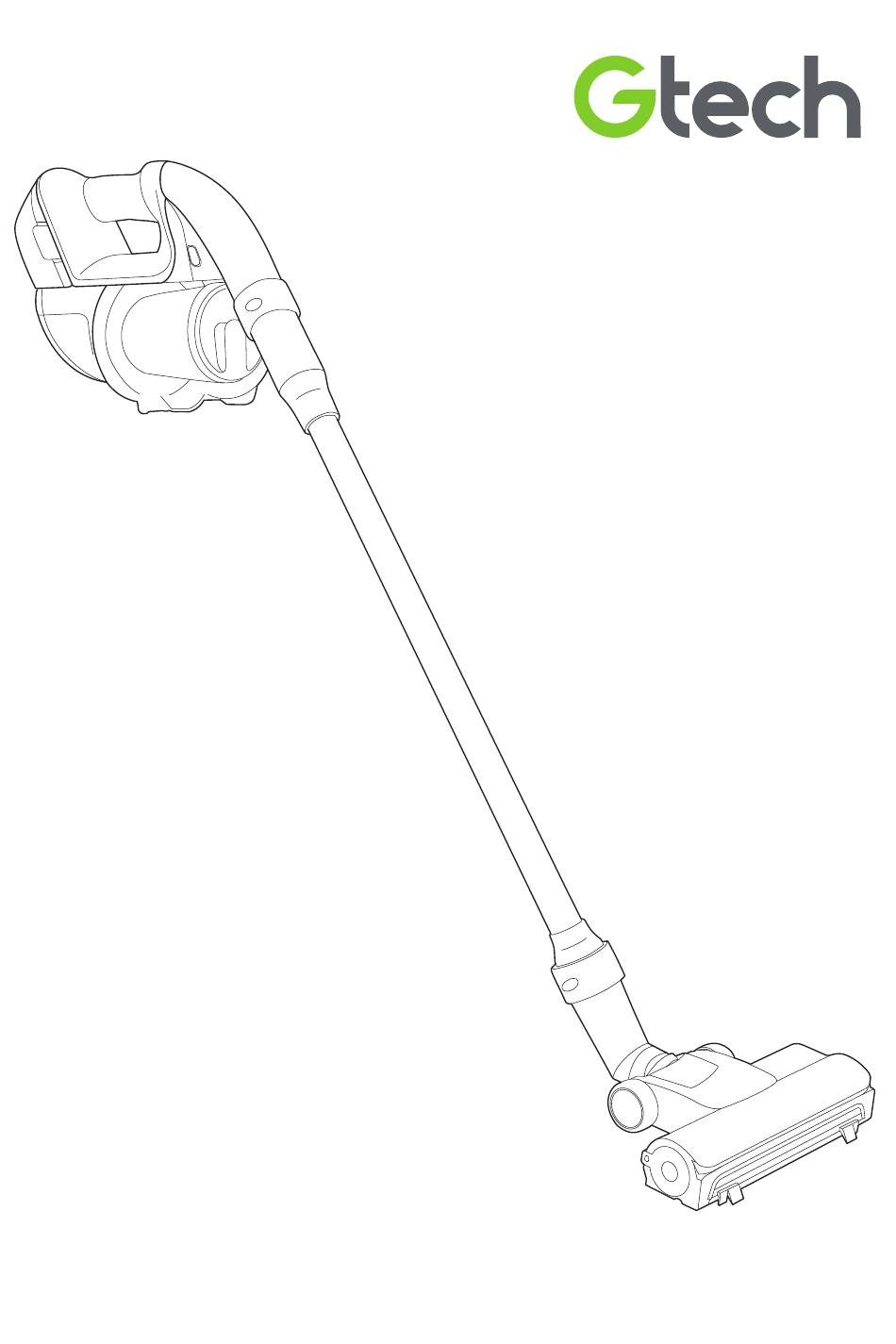

- Page 1 POWER FLOOR Model number: ATF038 OPERATING MANUAL...
-
Page 2: Important Safeguards
8 years and above and persons with reduced physical, sensory or mental • Only use batteries and chargers supplied capabilities or lack of experience and by Gtech. knowledge if they have been given • Never modify the charger in any way. supervision or instruction concerning •... -
Page 3: Battery Safety
• Only use replacement parts or Battery safety: accessories provided or recommended • This appliance includes Li-Ion batteries; by Gtech. do not incinerate batteries or expose Intended use: to high temperatures, as they may explode. • This appliance has been designed for •... -
Page 4: What's In The Box
Thank you for choosing a Gtech Power Floor “I started Gtech to create sensible, easy to use products, which do a great job. Your opinion is important to us and we will use your feedback to improve our products and services and let other people know what it’s like to be part of the Gtech family.”... - Page 5 Tool configurations There are many configurations for the Power Floor. Refer to this diagram to see how each tool can be attached and used.
-
Page 6: Operation
Operation Press the button above the handle to turn The crevice tool is stored inside the handle. the Power Floor on and off. Power Floor head assembly Attach the Power Floor to the extension The power must be off while changing tube, making sure the white dots are tools. -
Page 7: Emptying The Bin
Above the floor cleaning For above the floor cleaning you can fit the ...or fit the extension tube with an crevice tool or dusting brush for close-to accessory for high-up cleaning. work... Emptying the bin There’s no latch, the bin just pulls off. Hold the Power Floor bin over a rubbish bin It’s easier if you wiggle it as you pull it. -
Page 8: Battery Charging
Battery charging When a single green light flashes, recharge The battery can be charged on or off the the battery. main unit. hour hours boost After 4 hours the LEDs turn solid green It is OK to charge for 1 hour for a burst and charging is complete. - Page 9 Removing and cleaning the brush bar Remove the extension tube from the Power Before you remove the brush bar, you will Floor by pulling gently on the green locking need to remove the Power Floor head ring. from the extension tube. Gently pull on the green locking ring attached to the Power Head to remove.
-
Page 10: Cleaning The Filter
Wash the Recommended water temperature 40ºC. filter if necessary. Do not use any detergent or soaps. (You can buy more at www.gtech.co.uk) Never put the bin back without the filter inside. You could damage the motor. -
Page 11: State Of Charge
State of Charge 100% - 75% 75% - 50% 50% - 25% 25% - 1% The battery state of charge indicator shows While the battery is on charge, the LEDs how much charge the Power Floor has. As will pulsate and in turn illuminate. When the you use the product, the green lights will battery is fully charged all of the LEDs will be turn off in a downwards direction. - Page 12 If the suction is low when the bin is empty and filter is clean... you have a blockage. Remove the battery & bin from the body The Power Floor head can also get and look through both ends of the tube. blocked.
-
Page 13: Product Care
Product Care Your Gtech Power Floor doesn’t need much maintenance: keep the filter clean, check for blockages and charge the battery. Wipe it with a dry cloth if it gets dirty, including the area under the bin. Never wash it with liquid, run it under a tap or use it without the filter. -
Page 14: Warranty Registration
XXXXX~ WWYY~ 00~0000000 If you purchased directly from Gtech your details are already registered and your 2 year warranty will start automatically. If you purchased from an authorised Gtech retailer, please register your warranty within 3 months and you will need to provide proof of purchase to support any claim against your warranty. -
Page 15: For Household Use Only
symbol indicates that this product is Call your local council, via amenity site, or recycling centre for information on the disposal covered by legislation for waste electrical and electronic products (EN2002/96/EC) and recycling of electrical products. Alternatively visit for advice on recy- www.recycle-more.co.uk When the vacuum has reached the end of its life, cling and to find your nearest recycling facilities. - Page 16 Grey Technology Limited Brindley Road, Warndon, Worcester WR4 9FB email: support@gtech.co.uk telephone: 01905 345891 www.gtech.co.uk...
Need help?
Do you have a question about the POWER FLOOR ATF038 and is the answer not in the manual?
Questions and answers
My Gtech Power Floor Model ATF038 became jammed because of hair wrapped around the rollers. I cleared all the hair but the four red lights still appear and when I press the go button four green lights appear but only fleetingly and are replaced by the four red lights indicating the brush is jammed. The brush is not jammed and there are no blockages as I have followed all instructions to check and all is clear.
