Gtech ATF024 Operating Manual page 4

Operation

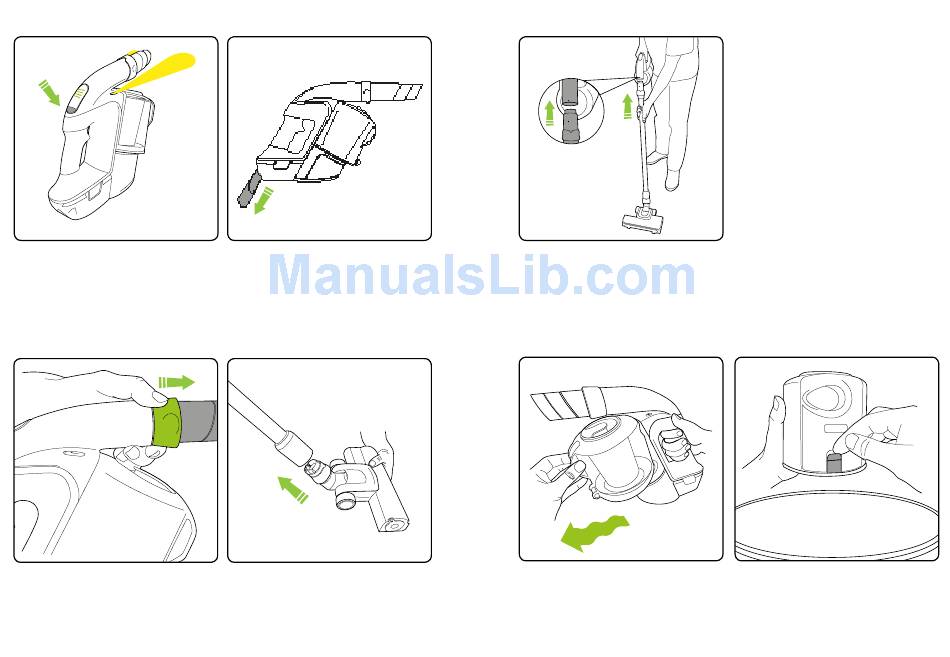

Push the button to switch the Power Floor
on. Push again to switch off.
Power floor head assembly
To attach the powered floor head, remove
the nozzle by pulling gently on the green
locking ring until the nozzle comes free
from the body. The power must be off
while changing tools.
6
The crevice tool is stored inside the handle.
Take the powered floor head and attach it
to the extension tube. It will click into place.
Attach the extension tube to the Power
Floor, making sure the white dots are
aligned. It will click into place.
Emptying the bin
There's no latch, the bin just pulls off.
It's easier if you wiggle it as you pull it.
Hold the Power Floor bin over your rubbish
bin and release the latch to empty the dirt.
7
