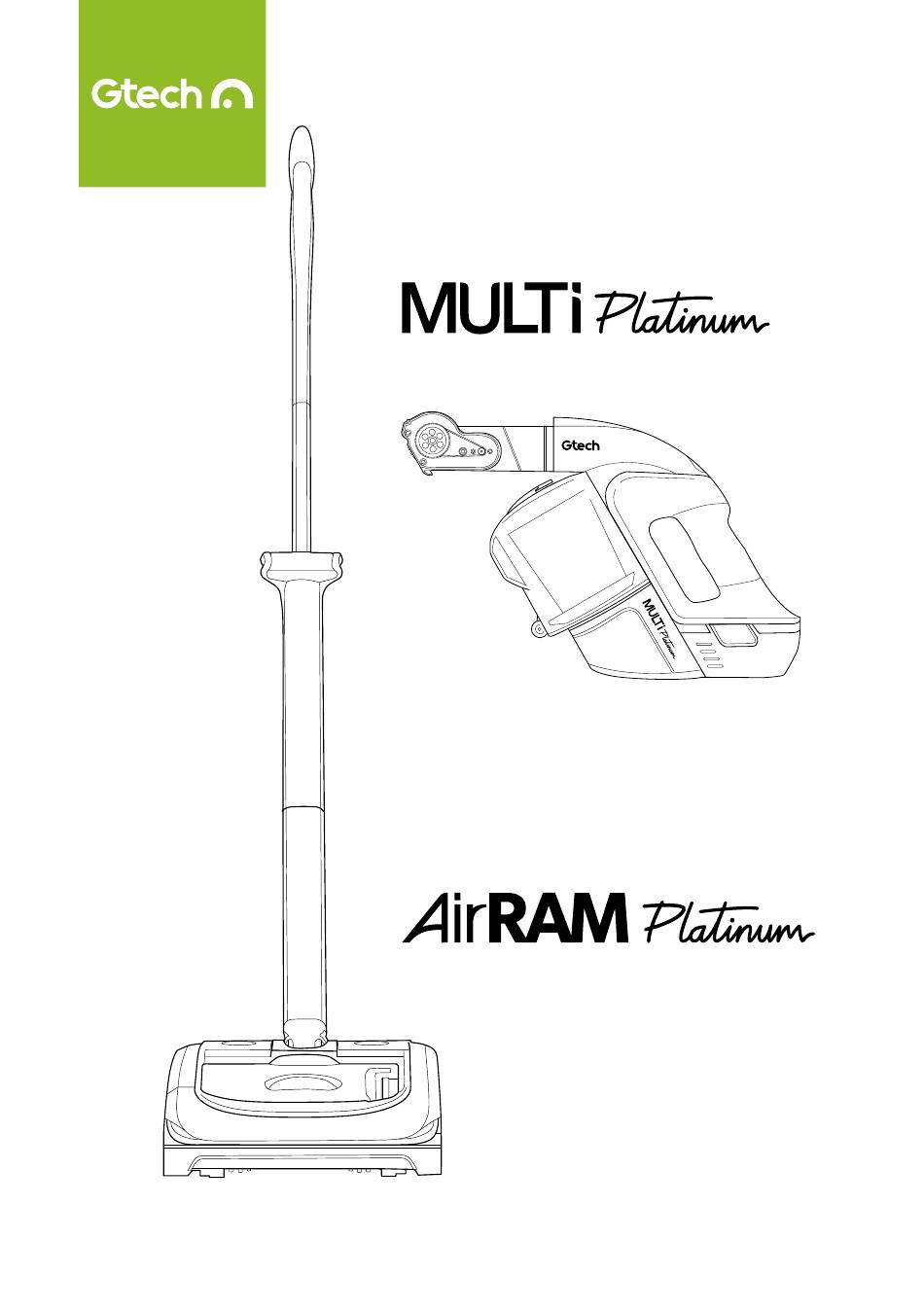

- Page 1 Platinum System ATF061 Model number: AR46 Model number: OPERATING MANUAL...
-
Page 2: Important Safeguards
Electrical safety: disconnecting the motorised brush bar. • Only use batteries and chargers supplied Battery safety: by Gtech. • This appliance includes Li-Ion batteries; do • Never modify the charger in any way. not incinerate batteries or expose to • The charger has been designed for a high temperatures, as they may explode. -
Page 3: Intended Use
• Never use the appliance without the filter • Never modify the appliance in any way as fitted. this may increase the risk of personal injury. • Ensure the battery is removed before • Only use replacement parts or accessories changing tools. provided or recommended by Gtech. -
Page 4: What's In The Box
Thank you for choosing Gtech “Welcome to the Gtech family. I started Gtech to create sensible, easy to use products that do a great job, and hope you get many years of trouble-free performance from your new product.” Nick Grey –... - Page 5 AirRAM: Assembly Push the pivot poke to the upright position. Pull out the purple locking clip to allow the This might require some force. lower handle to fit (the clip remains attached Attach the lower handle to the head assembly to the head) Insert the metal pin on the lower (See next step) handle into the hole in the pivot yoke.
-
Page 6: Operation
Storage Upper Button Lower Button To stow or extend the upper handle simply The upper handle can be set in two positions: press the button on the lower handle to Lowered for storage and raised for use. To unlock the upper handle. lower the handle, release the upper button. -
Page 7: State Of Charge
Press the power button with your foot to turn the product on. State of Charge 100% - 75% 75% - 50% 50% - 25% 25% - 1% The battery state of charge indicator shows While the battery is on charge, the LEDs will how much charge the product has. -
Page 8: Battery Charging
Battery charging When the state of charge indicator starts to To remove the battery, squeeze the latch flash one green LED, recharge the battery. underneath and pull upwards. hours The battery can be charged whilst it’s in the It is OK to charge for 1 hour for a burst of product, or when it’s off the product. -
Page 9: Emptying The Bin
Emptying the bin Holding onto the head with one hand, pull Lift and release the latch marked with the green the bin handle and lift the bin out of arrow, to pull open the lid. the product. Hold the product’s bin over a rubbish bin Pull the purple lever back towards the bottom and push the purple lever towards the lid to of the bin. -
Page 10: Cleaning The Filters
Cleaning the filters - do this once a month or more frequently depending on use. Holding onto the head with one hand, pull Pull the filter out of the filter housing. Tap the the bin handle and lift the bin out of dirt from the filter and tip any dirt from the filter the product. -
Page 11: Replacing The Filters
Replacing the filters Slide the filter onto the inner shroud. Slide the filter and inner shroud into the filter housing. Removing and cleaning the brush bar / jam or fault seconds If the brush bar jams during use, the product The product will not re-start until the red lights will stop and the LEDs will appear red. - Page 12 Before checking for a blockage, remove the Rest the product on its side and locate battery. the brush bar button on the right hand side. Press the button inwards and then pull the brush bar out from the bottom of the product.
- Page 13 While the brush bar is removed you can take Re-insert the brush bar, starting by the end the opportunity to remove any hair from the furthest away from the button. Then line up brush bar housing comb as indicated. and push the brush bar into the product until it clicks into place.
- Page 14 Installing scented cartridge Slide the filter and inner shroud out of the filter Remove the filter from the inner shroud, by housing. twisting and pulling. Scented Cartridge by skin contact. If swallowed, seek medical advice immediately and show this container or label. Toxic to Scented cartridge refills: Keep out of the reach of aquatic organisms, may cause long-term adverse effects children.
-
Page 15: Multi: Operation
Multi: Operation The dusting brush can be slotted onto the Press the button above the handle to turn the active nozzle. The crevice tool is stored on product on and off. board the product for easy access. An active nozzle is built into your product. The dusting brush, crevice tool, extension tube and power brush all attach to the active nozzle. -
Page 16: Power Brush
Power brush Make sure the terminals on the Power Brush Gently pull the Power Brush from the product and Active nozzle are correctly lined up and to remove. The battery should be removed gently push the Power brush onto the Active when changing attachments. - Page 17 Battery charging hours hour boost When a single green light flashes, recharge After 3 hours, the LEDs turn solid green and the battery. charging is complete. It is OK to charge for 1 hour for a burst of cleaning. The battery can be charged on or off the main unit...
- Page 18 State of Charge 100% - 75% 75% - 50% 50% - 25% 25% - 1% The battery state of charge indicator shows While the battery is on charge, the LEDs will how much charge the product has. As you use pulsate and in turn illuminate.
-
Page 19: Cleaning The Filter
Recommended water temperature 40°C. Do not use detergent or soaps. Use your spare filter while it dries. (You can get more at www.gtech.co.uk) Never operate the product without the filter inside the bin. You could damage the motor. -
Page 20: Removing The Battery
Remove any blockages. Removing the battery Press the purple buttons and pull to remove the battery. The battery can be charged on or off the main unit. If you want to buy a spare battery go to www.gtech.co.uk or call 08000 308794... - Page 21 Linalyl acetate, Limonene, Linalool, Lilial, Lavender oil, produce an allergic reaction or cause sensitisation Vanillin, Borneol, Polysorbate 20 Place the new scented cartridge into the top of Scented cartridges are available from Gtech: the filter. Go to www.gtech.co.uk Never operate the product without the or call 08000 308794 scented cartridge fitted.
-
Page 22: Product Care
Product Care Your product doesn’t need much maintenance: keep the filter clean, check for blockages, remove hair from the brushbar and charge the battery. Wipe it with a dry cloth if it gets dirty, including the area under the bin. Never wash it with liquid, run it under a tap or use it without the filter. -
Page 23: Troubleshooting
If these initial tips do not solve your problem we please visit our support area where you can find troubleshooting help including online manuals, FAQs and how-to-videos, as well as genuine spares and replacement parts compatible with your product. Visit: www.gtech.co.uk/support Online Live chat support support@gtech.co.uk... -
Page 24: Technical Specification
To find your nearest centre and discover how easy it is to recycle electrical products visit www.recycle-more.co.uk Gtech products are marked with the symbol Alternatively contact your local council or civic indicating they can be recycled, and are covered by amenity site. - Page 25 If your product is within its warranty and has a fault that cannot be resolved from the troubleshooting section or online support, please do the following: • Contact our Gtech Customer Care Helpline on UK: 08000 308 794, who will go through any troubleshooting with you to identify the fault.
- Page 26 Notes...
- Page 27 Notes...
- Page 28 Grey Technology Limited Brindley Road, Warndon, Worcester WR4 9FB, UK email: support@gtech.co.uk telephone: 08000 308794 www.gtech.co.uk...
