powersoft X8 Reference

WiFi remote connection
Powersoft X Series amplifier platforms provide a local WiFi network that
allow the user to monitor the unit and make basic settings.
No dedicated application is needed for monitoring Powersoft X Series ampli-
fier platform other than a supported web browser;
f Safari on iOS based devices; f
f Chrome on Android and Windows based devices. f

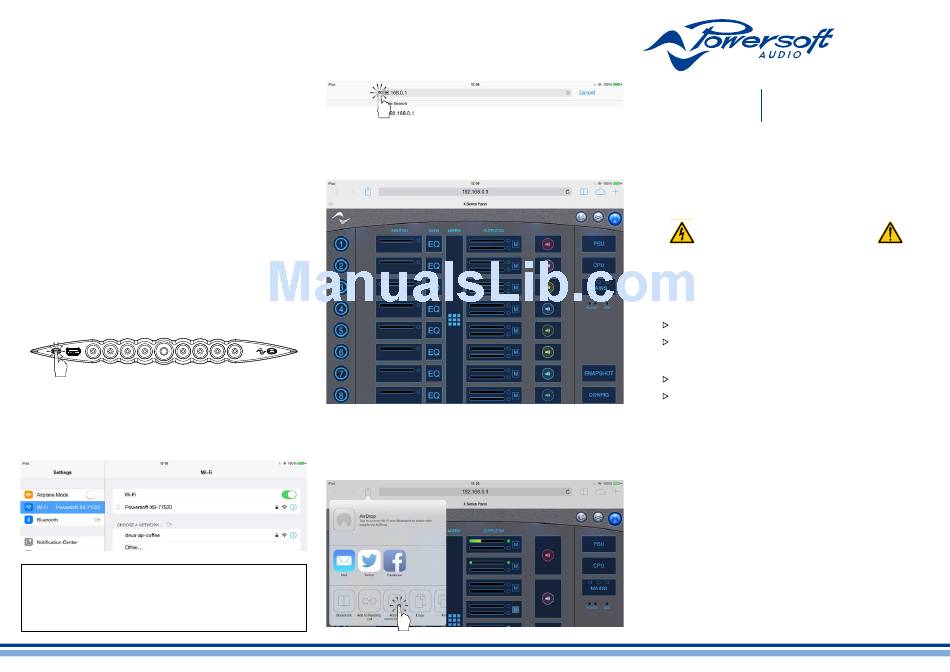

Follow this procedure to activate the WiFi connection and remotely access
your Powersoft X Series amplifier platform.
1. Switch on the amplifier platform by holding down the central button
on the front panel;
2. Press the leftmost button in the front panel: the button will light up
and the system will establish a new local WiFi network whose SSID is
in the form:
Powersoft-MODELNAME-SERIAL (e.g. Powersoft-X8-70133)
3. Access your mobile device and edit the WiFi configuration:
4. Hang the WiFi network with the right SSID;
5. Insert the following WiFi encryption password: 0123456789
"WARNING: To reduce The Risk of 7-8 AES3 IN 5-6 3-4
Fire or Electric Shock, do not Expose
this Apparatus to Rain or Moisture"
ANALOG IN
1=GND
2 = IN+
3 = IN-
8 7 6 5 4
Powersoft S.p.A. Sales & general inquiries: sales@powersoft.it
Via Enrico Conti, 5 Technical support: support@powersoft.it
50018 Scandicci (FI) Italy Service & maintenance: service@powersoft.it
Tel: +39 055 735 0230 Compliance requests: compliance@powersoft.it
Fax: +39 055 735 6235 www.powersoft-audio.com
6. Open the web browser and type the following IP address in the address bar:
7. The system will push the user interface to the browser: now you can
start managing your X Series amplifier platform.
8. For simple recall and operation with the interface, we suggest to book-
mark it: in iOS devices, when the interface has been completely loaded,
click on the share icon and select "Add to Home Screen".
POWER
OUTPUTS
CH 1/3/5/7
AES3 IN 1-2
CH 2/4/6/8
ANALOG IN
PATENTED
3 2 1
192.168.0.1
X Series Reference

AC mains supply

Refer to the quick guide for safety
and proper installation instructions
The intended use of X Series amplifiers is in a rack only. The AC mains
wirings of the units must be connected to a terminal box provided with a
properly breaker. The proper device to use depends on mains configuration;
for X8 Powersoft suggests:
single-phase AC (P+N+E): 32 A rating, C or D curve, 10 kA;
three-phase AC (3P+N+E): 4 x 16 A rating, C or D curve, 10 kA.
For X4 Powersoft suggests:
single-phase AC (P+N+E): 16 A rating, C or D curve, 10 kA;
three-phase AC (3P+N+E): 4 x 10 A rating, C or D curve, 10 kA.
It is not allowed to connect the X Series AC mains connection directly to the
power distribution system. Recommended wires section is 2,5 mm
For North America market we recommend to use an approved UL/CSA cable
(i.e. ST 600Vac 105°C 5x13AWG)
AC mains connection is provided by means of the euroblock Phoenix PC 5/5-
STF1-7,62 connector and flying plug (Phoenix product ID 1777862). Proper
assembly of the AC mains conductors to the flying plug must respect the
power line configuration; once properly wired, insert and lock the flying con-
nector into the shell provided by Powersoft.
Before connecting this amplifier to the AC mains:
f verify that your mains connection is capable of satisfying the power f
ratings of the device;
f verify that a ground connection is available; f
f verify that a proper sectioning breaker is available; f
f connect all the five conductors to the flying plug as shown in the pictures. f
