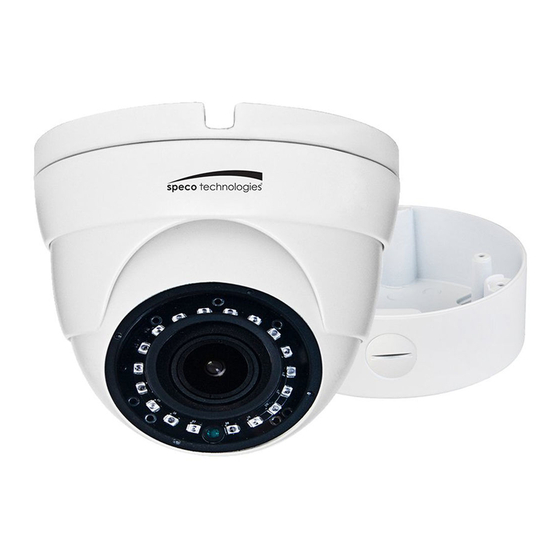

Speco VLDT3WM User Manual

Multi-Format HD Analog IR Camera
ITEM №: VLDT3WM/ VLDT3GM
!
! Caution for Installation
1. In order to prevent electronic shock, don't loosen any screws or covers.
2. Do not directly touch the front glass. If necessary, use a soft cloth
moistened with alcohol to wipe off the dust.
3. Avoid places where there are frequent vibrations or shocks.
4. Don't operate the camera beyond its temperature, power source ratings.
5. When any abnormalities happen, make sure to unplug the camera and
contact your local dealer.
! Packing
1. Camera
2. Junction box
3. User Manual
4. 4*34mm Screw
5. 4*20mm Screw
6. Plastic-Conical-Anchor
7. Junction box cotton pad
8. Hexagonal Wrench
9. Mounting drawing paper
X1
X1
X1
X4
X4
X4
X1
X1
X1
! Specification
ITEM
IP Rating
Type
Signal System
Pick Up Device
Picture Elements
Min Illumination
S/N Ratio
Lens
3D/2D
SENS-UP
IR SMART
White Balance
Back Light Compensation
DWDR
OSD
Video Out-put
Power Supply
Current Consumption
IR Effect Distance
Dimension
Weight
Storage Temperature
Operating Temperature
Junction box
Dimension
Weight
Remark: Non-regulative adaptor may cause camera damaged.
VLDT3WM/VLDT3GM
IP66
Removable IR Cut Filter
NTSC/PAL
1/2.9" 2.2 Mega Pixels CMOS
1920(H)X1080(V)
0Lux（18 Pieces IR LED ON）
≥52dB
2.8-12mm Motorized Vari-focal Fixed Iris Lens
ON
ON
ON
ATW
OFF
ON/OFF
With UTC Signal(DVR Control OSD)
HD-TVI/HD-AHD/HD-CVI/CVBS
DC12V ±10%
500mA(MAX)
49.2~65.6ft(indoor)
Φ4.72"×3.93" inch
790g（27.86oz）
-22～+140
-22～+104
Φ4.72""×1.59" inch
255g (9.0oz)
