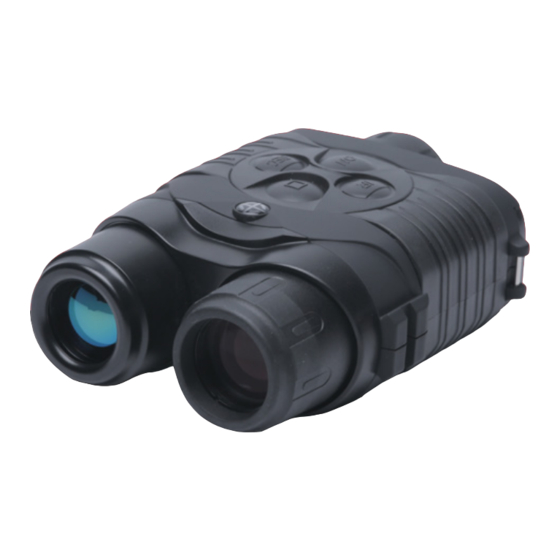

- Page 1 USER MANUAL USER MANUAL SIGNAL N320RT SIGNAL N340RT 4.5x30 DIGITAL NIGHT VISION 4.5x30 DIGITAL NIGHT VISION MONOCULAR MONOCULAR (SM18024) (SM18025)
- Page 2 ® ABOUT SIGHTMARK While Sightmark’s MAKE YOUR MARK tagline perfectly illustrates our mission to provide uncompromising accuracy SIGNAL RT SERIES in virtually any environment, to us, those three words mean quite a bit more. Extend your reach far past sundown with the Sightmark Signal RT Digital Night Vision Monocular. This hand held MAKE YOUR MARK represents our commitment;...
-
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS DIAGRAM 1. Objective lens N320 (SM18024) N340 (SM18025) 2. On/off button Sensor Resolution, pixels 640x480 640x480 3. IR button 4. Zoom button Display Type 5. Record button Display Resolution, pixels 640x480 640x480 6. IR illuminator Magnification 4.5/9 4.5/9 7. -
Page 4: Installing The Battery
INSTALLING THE BATTERY DESCRIPTION OF CONTROLS The Sightmark Signal RT uses four AA batteries. It is recommended to use batteries of the same type and same charge for Button Operating Mode 1st Short Press 2nd Short Press Long Press best performance. It is safe to use rechargeable batteries with the Signal RT. To install a new battery: The unit is off Turns the unit on... -
Page 5: Diopter Adjustment
ON/OFF ACTIVATION FOCUSING USINGTHE IR ILLUMINATOR The Sightmark Signal RT controls are located on top of the unit for easy access. The Sightmark Signal RT’s objective lens (1) can be The Sightmark Signal RT is equipped with built- To power the unit on: rotated to allow the unit to deliver a clear, sharp image. -
Page 6: Using Digital Zoom
USING DIGITAL ZOOM USB CONNECTION ZOOM The digital zoom function allows you to control the Signal’s magnification. Each Signal The Signal RT can be connected to a PC via the USB port (8). The PC will detect RT model is equipped with 2x digital zoom. When digital zoom is activated, the full the Signal automatically, no driver installation is necessary. -
Page 7: Operating Modes
USB CONNECTION continued USB Mass Storage Device Video Mode When the Signal is selected as a USB mass storage device and the USB cable is disconnected from the PC, the unit will Video mode is the default mode each time the Signal is turned on. The (camcorder) icon is shown on the display to remain turned off. - Page 8 OPERATING MODES continued Image VIDEO mode counter* Photo Mode To play a video file: File deletion: Photo mode allows for image capture of what is 1. When the desired video file is on the display, press the 1. When the desired video file is on the display, press seen on the display.
- Page 9 MENU The Signal RT menu system allows access to further features, functions, and customization options. Wi-Fi setup allows you to set a password for the access point. This password is used to connect an external device The menu system consists of the following: (smartphone for example) to our Signal RT.
- Page 10 MENU continued Recording Resolution 5. The time format is display as “format mm/hh” (24 06:51). The recording resolution of the Signal RT can be changed for video and photos. Lower resolution video and photos 6. Use the navigation buttons to select the required time format – 24/AM/PM. Press the zoom button to select the require less memory and will provide longer video record times, or storage of more photos.
-
Page 11: Maintenance
MAINTENANCE STORAGE Proper maintenance of the Sightmark Signal RT is recommended to ensure longevity. Attempts to disassemble or repair Proper authorization is required before shipping any product back to Sightmark. Failure to obtain authorization could the unit will void the warranty. It is recommended that when the unit becomes dirty that it is wiped down with a dry or result in your product being returned to the wrong address, lost, or damaged. - Page 12 TROUBLESHOOTING continued The unit does not operate on external power: The unit is not operating properly due to firmware update: 1. Make sure the power supply is providing output voltage. 1. Restore the original firmware version using the following procedure: 2.
- Page 13 NOTES NOTES...
- Page 14 www.sightmark.com...
