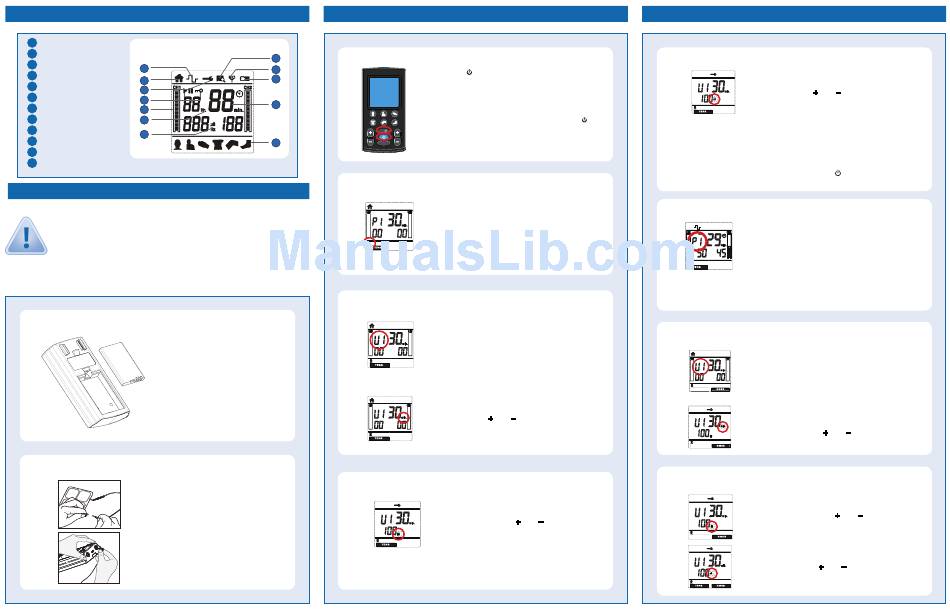

Roscoe Medical TWIN STIM IV Quick Reference Manual

QUICK REFERENCE GUIDE – TWIN STIM IV
1
Waveform Mode
LCD DISPLAY
2
Home Screen
3 Set Mode
1
4 Output: Start, Pause or Lock
2
5 Channel 1 intensity level
3
6 Compliance Meter (hours)
4
7 Output Intensity of Channel 1
5
8 Body Part Selection
6
9 Treatment Time (minutes)
7
10 Low-Battery Indicator
11 Load Indicator
12 Compliance Meter Mode
Never remove the self-adhesive electrodes from the
skin while the device is turned on!
IMPORTANT! WARNING: Device will not work while charging. Device is
partially charged upon receipt.
firmly on the skin or the device has not connected with the lead
wires securely, and the output intensity level is equal or greater
than 10mA, the intensity will stop automatically.
1

INSERT BATTERY

Press down on the belt clip to
release it. Remove the battery cover
and insert the battery as shown in
the diagram. Replace the battery
cover and belt clip.
2

CONNECT LEAD WIRES

Make sure the device is completely
turned OFF. Take the pads out of the
sealed package; insert the lead wire
pin into the electrode pigtail. Make
sure no bare metal is exposed.
Insert the lead wires into the output
sockets located at the top of the de-
vice. Note: If only using one channel,
only plug in 1 lead wire.
QUICK REFERENCE GUIDE – TWIN STIM IV
PAGE 2
3

TURNING THE DEVICE ON OR OFF

12
11
Twin Stim IV
10
9
M /
8
S
4

SELECT THERAPEUTIC BODY PART

If the electrodes are not placed
5
TENS — SETTING THE MANUAL PROGRAM — U1
6

SET PULSE RATE

PAGE 3
Press the [ ] button to turn the device "ON" or "OFF".
If there is an immediate need to pause treatment,
press the [ II ] button to pause treatment.
Press it again to continue treatment or press [ ]
to stop treatment and go back to the home screen.
There are 6 therapeutic body part buttons available:
neck, shoulder, hand, low back, knee and foot. Each
therapeutic part has 3 programs – P1, P2 and U1.
Total of 36 programs.
Select Treatment Mode
Press [ M/II ] button to select the TENS treatment
mode. Select the body part which you want to
treat. Then press the body part button until the
LCD displays program "U1" like the first screen
on the left.

Set Treatment Time

Press [ S ] button to enter treatment time, "Min"
will flash. Press [ + ] or [ −
] adjust time.
Set Pulse Rate
Press [ S ] button to enter the pulse rate and
the "Hz" will flash. Press [ + ] or [ − ] button to
adjust pulse rate.
QUICK REFERENCE GUIDE – TWIN STIM IV
7
PULSE WIDTH & START TIME
Pulse Width
Press [ S ] button to enter the pulse width and the
"µs" will flash. Press [ + ] or [
pulse width.
Start Treatment
Press [CH1+] or [CH2+] to increase the output
intensity of channel 1 and/or channel 2. Press
[CH1−] or [CH2−] to decrease the output
intensity of channel 1 and/or channel 2.
When done, press [ S ] or [
to the home screen.
8
TENS — SET PRESET PROGRAMS — P1 & P2
Select Treatment Mode
Press [ M/II ] button to select the TENS treatment
mode. Select the body part which you want to
treat. Press the body part button until the LCD
displays program "P1" or "P2" like the screen
on the left.
To set your treatment time refer back to Step 5.
To start your treatment refer back to Step 7.
9
NMES — SETTING THE MANUAL PROGRAM — U1
Select Treatment Mode & Body Part
Press [ M/II ] button to select the NMES treatment
mode. Select the body part which you want to
treat. Then press the body part button until the
LCD displays program "U1" like the first screen
on the left.
Set Treatment Time
Press [ S ] button to enter treatment time and the
"min. " will flash. Press [ + ] or [
the treatment time.
10
SET PULSE WIDTH & PULSE RATE
Set Pulse Rate
Press [ S ] button to enter the pulse rate and
the "Hz" will flash. Press [ + ] or [
adjust pulse rate.
Pulse Width
Press [ S ] button to enter the pulse width and the
"µs" will flash. Press [ + ] or [
pulse width.
PAGE 4
−
] button to adjust the
] to confirm and return
− ] button to adjust
−
] button to
− ] button to adjust the
