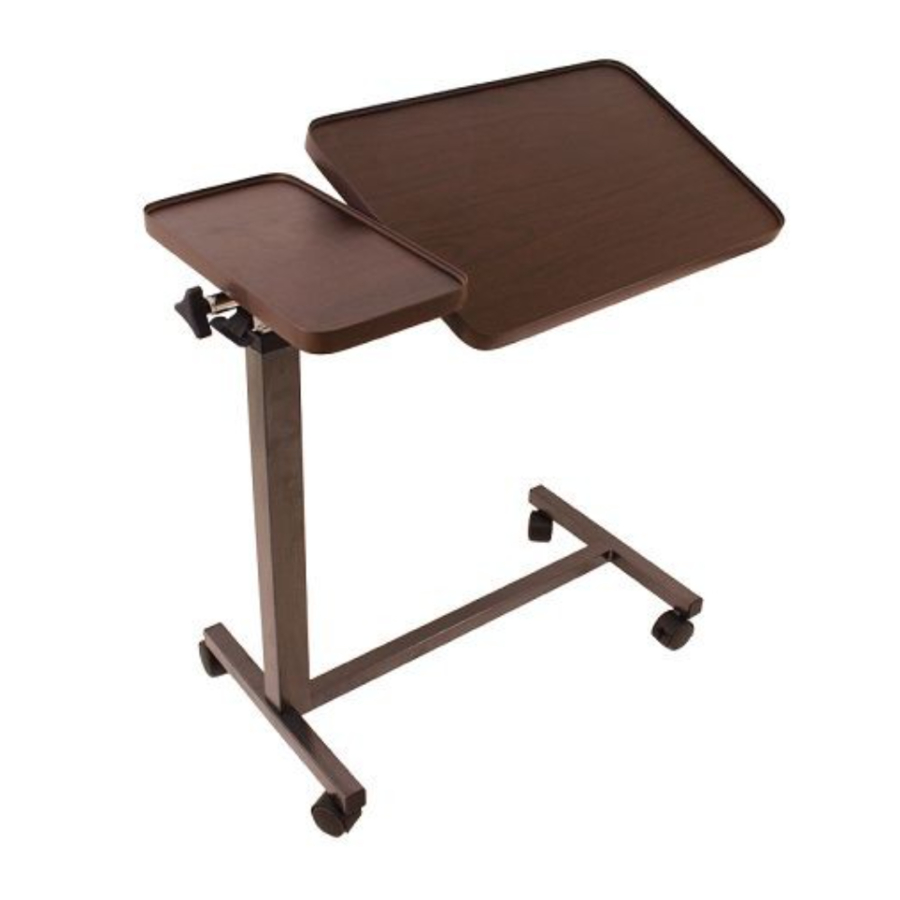

Roscoe Medical OBT-TILT - Deluxe Tilt-Top Overbed Table Manual

Parts List

1. Table Top (Small)
2. Table Top (Large)
3. Release Handle
4. ¹/₄" #20 Bolt & Nut (1 Each)
5. Top Bracket Tube 1
6. Top Bracket Tube II
7. Bracket Connecting Piece
8. Fixed Knob
9. Bolt Sleeve
10. Bolt Plate
11. ³/₈" #18 UNF Bolt
12. ¹/₄" #20 Bolt (Black)
13. ¹/₄" #10 Bolt (Chrome)
14. Draw Pipe
15. Spacer
16. Column Assembly
17. Spacer
18. Triangle Knob
19. Stand Pipe Stopper
20. Stand Pipe
21. Base
22. Caster With Lock (2)
23. Caster Without Lock (2)
24. Outer Tube

Assembly Instructions

1. Remove contents from packaging and lay Top Boards (1 & 2) upside down on flat surface with Mounting Tubes (5 & 6) facing upward. See Fig. 2.

2. Take the Column Assembly (16) and place Trip Lever (3) on top of Trip Rod and secure with Bolt and Nut (4) See Fig. 1.

3. Remove Triangle Knob (18), Spacer (17) and the Inner Tube (14) from the Outer tube (24). See Fig. 3.

4. Insert Outer Tube (24) on the Column Assembly through Mounting Tube (5) on the Short Top first (6). Then insert Outer Tube through the Mounting Tube (6) on the Large Top (2). Insert Inner Tube (14) through Mounting Tube (6). Tighten the Fixed Knob (8) into the "Hole" on Outer Tube (24).

5. Replace the Triangle Knob (18) and Spacer (17), then secure by tightening the Knob.
6. Install the two Casters With Lock (22) into the side of the Base (21) which connects to Column Assembly (16). Install two Non-Locking Casters (23) into the opposite side of the Base (21). See Fig. 5.

7. Install two Bolt Sleeves (9) into the upside down Base (21) and then position the two Bolts (11) through the Bolt Plate (10) and into the Bolt Sleeves (9). Position the Base (21) over the Column Assembly (16) and thread bolts into bottom of Column Assembly (16) and tighten using 16mm wrench. See Fig. 6.

8. Turn the table upright and stand on Casters.
9.
   This step must be completed last to prevent damage to the spring loaded mechanism. Remove the Black Screw (13) in the Column Assembly (16) collar labeled "Remove for Assembly" and replace it with the Chrome Screw (13) contained in hardware package. Do not remove Chrome Screw labeled "Do Not Remove".


WARNING

FOR SAFETY — DO NOT REMOVE BLACK SCREW (12) ON COLUMN ASSEMBLY (2) UNTIL THE TABLE IS FULLY ASSEMBLED AND STANDING IN UPRIGHT POSITION. AFTER REMOVING BLACK SCREW, REPLACE WITH CHROME SCREW (13) INCLUDED IN HARDWARE PACKAGE. THE BOTTOM CHROME SCREW WITH THE "DO NOT REMOVE" LABEL SHOULD NEVER BE REMOVED AS IT WILL DAMAGE THE UNIT AND VOID YOUR WARRANTY.

Assembly Precautions

This Overbed Table utilizes a high-tension spring loaded mechanism to raise the table. DO NOT remove #13 Black Screw and replace with #14 Chrome Screw until table is fully assembled. DO NOT over tighten bolts, screws or use power tools when assembling this product.

Important Warnings

Please follow all instructions and warnings to avoid hazardous situations that can result in property damage and/or patient/ resident/staff/caregiver injury and/or death.
Inspect the product for damage and loose hardware before each use. DO NOT use the product if it appears to be damaged or unstable and DO NOT modify the product in any way.

Intended Use

This product is designed for use as a movable patient/resident table top surface for reading, eating, or keeping small personal items such as glasses, telephone or books, within easy reach. This product is designed for indoor use ONLY and within close proximity of skilled caregivers. It is not designed to hold electrical items (such as televisions, computer monitors, coffee pots, etc.) and should not be used near open flames and excessive heat.

Maximum weight limitation for this product is 50 lbs. (22 kg.); weight should be evenly distributed over the table top surface while at the lowest usable height to help maintain a stable condition.

DO NOT overload this product, as that could result in breakage, as well as damage to property and/or serious injury. Use ONLY as directed for its intended use. This product SHOULD NOT be used as a sleep surface, walker, mobility aid; or to assist a person in walking, sitting down, standing up; or to prevent or brace a person's fall; or to help transport persons or items.

Operating Instructions

1. To raise top to desired height, apply light pressure upward at any point under table.
2. To lower, squeeze Trip Lever (3) up towards top and push down at column to desired height. Do not put pressure on Tabletop end that is opposite the column. Column Assembly will lock upon release of Trip Lever.
3. To tilt, turn Triangle Knob (18) counter-clockwise to loosen. Set to desired angle and then turn knob (18) clockwise to tighten. Short Table (1) top does not tilt.

One Year Warranty

This warranty is solely for the benefit of the original consumer purchaser.
This device was built to exacting standards and carefully inspected prior to shipment. Your Roscoe brand product is warranted to be free of defects in materials and workmanship for a period of one year. If within such warranty period, the product proves defective, the product will be repaired or replaced, at the option of Roscoe Medical. This warranty does not cover device failure due to owner misuse or negligence, or normal wear and tear. If you have a question about your Roscoe product or this warranty, please contact an authorized Roscoe Dealer.

21973 Commerce Parkway
Strongsville, Ohio 44149 USA Made in China
