Summary of Contents for Roscoe Medical 50004
- Page 1 Medical Suction Equipment PRODUCT ID: 50004 & 50006 These devices comply with EU EMC standard EN60601-1-2...
-
Page 2: Table Of Contents
7. Replaceable Parts and Accessories ---------------------- page 8 8. Warranty --------------------------------------------------------- page 9 Introduction 50004 & 50006 Medical Suction Equipment uses a motor to drive an air pump to generate negative pressure. With the negative pressure, the device efficiently suctions the patient’s secretions. -
Page 3: Product Structure

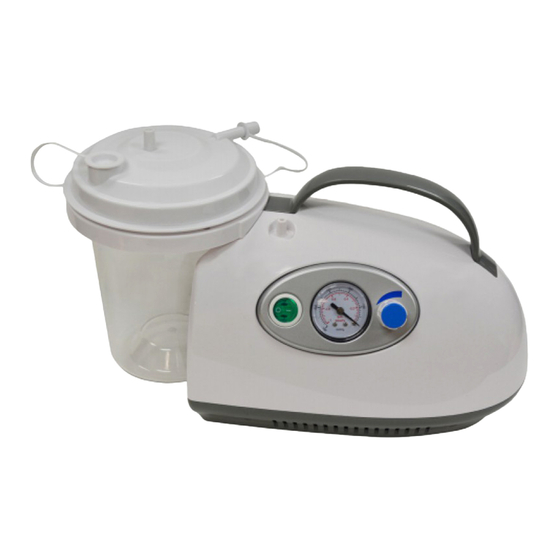

Product Structure A. Visual appearance 50004 & 50006 B. Assemblies 50004 50006... -
Page 4: Important Safeguards
III. Important Safeguards Note: Read all instructions carefully before use. The following basic precautions are needed when using an electrical product: Caution: Failure to read and observe all precautions could result in personal injury or equipment damage. Warning: No modification of this equipment is allowed. The power cord plug is a disconnect device. -
Page 5: Device Specifications
1. Do not immerse the unit in water. It may damage the unit. 2. Disconnect the unit from the electrical outlet before cleaning. Clean all necessary parts after each use as instructed in this guidebook. IV. Device Specifications: No. Item 50004 50006 Rated Power input 120V/60Hz AC DC 12V Power... - Page 6 LED indication: ON/OFF Battery Low Battery Charging AC adapter button power Sufficient Green Unplugged Low Battery Green Plugged In Full Green Low Battery Note: The LED will never indicate lower battery if the device is operating under AC power. Charging Time Time use: about 8 hours Thereafter: less than 8 hours Unplug the suction device when low battery LED turns GREEN.
-
Page 7: Operation Instruction
Operation Instruction A. Set the air filter: 1. Open the accessories case and take out the two silicone tubes and the filter cover. Connect one end of the silicone tube to the front air input port and the other end to the filter cover. 2. -
Page 8: Cleaning And Sterilization
3. Reassemble the product when completely dry and put these parts in a dry sealed container. Disinfections: Please follow the following steps to disinfect your 50004/50006 unless otherwise specified by your physician. It is suggested that the unit is disinfected after each treatment. -
Page 9: Replaceable Parts And Accessories
21973 Commerce Parkway Strongsville, OH 44149 Tel: 800-376-7263 - Make sure to use FDA or CE proved suction tube with the diameters of 6.0mm x 9.0mm with 50004/50006 medical suction equipment. Consult accompanying documents Type BF equipment Disposal for Separate Collection... -
Page 10: Warranty
If within such warranty period, the product proves defective, the product will be repaired or replaced, at the option of Roscoe Medical. This warranty does not cover device failure due to owner misuse or negligence, or normal wear and tear.
