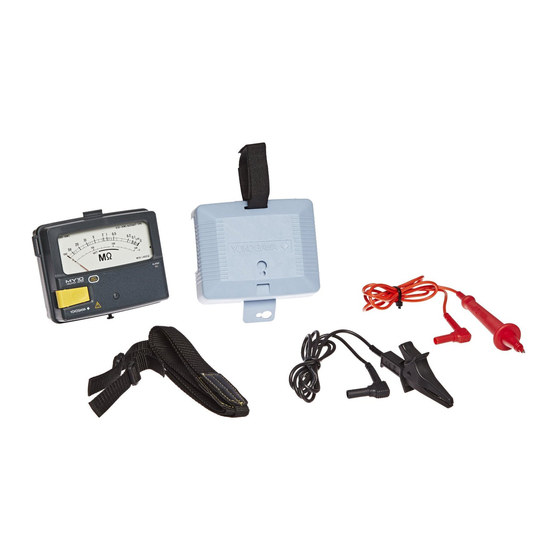

YOKOGAWA MY10 User Manual

YOKOGAWA MY10 User Manual

Insulation resistance tester

Advertisement

Quick Links

User's
Manual
This paper supplements the User's Manual of MY10 and MY40 Insulation Resistance Tester.
This is to advise the additional explanations for EMC standards and the update postal address
for Yokogawa Europe.
Model
User's Manual
EMC standard
MY10
EN55011 Class B Group 1
EN61326 Class B
IM MY10-E
6th Edition
Effect of radiation immunity
At the strength of radio-frequency
electromagnetic field of 3V/m
•Insulation resistance measurement
1st effective measuring range: ±10% of rdg
2nd effective measuring range: ±20% of rdg
Infinity and zero indications:
•AC Voltage measurement: ±10% of FS
EMC standard
MY40
EN55011 Class B Group 1
EN61326 Class B
IM MY40-E
6th Edition
Effect of radiation immunity
At the strength of radio-frequency
electromagnetic field of 3V/m
•Insulation resistance measurement
1st effective measuring range:
2nd effective measuring range:
•AC Voltage measurement:
•Conductor resistance measurement:
YOKOGAWA EUROPE B. V. (THE NETHERLANDS)
Euroweg 2, 3225HD, Amersfoort THE NETHERLANDS
Phone: 31-88-4641000
MY10, MY40
Insulation Resistance Tester
For EMC Standards
Description
before the revision
±1.4% or less of scale length
±(5% of rdg+12dgt)
±(10% of rdg+12dgt)
±(5% of rdg+12dgt)
±(10% of range)
Facsimile: 31-88-4641111
Revised Content
EMC standards:
Compliant with
EN55011 Class B Group 1,
EN61326-1 Class B,
EN61326-2-2
Effect of radiation immunity
At the strength of radio-frequency
electromagnetic field of 3V/m
•Insulation resistance measurement
1st effective measuring range: ±10% of rdg
2nd effective measuring range: ±20% of rdg
Infinity and zero indications:
±1.4% or less of scale length
•AC Voltage measurement: ±10% of F.S.
EMC standards:
Compliant with
EN55011 Class B Group 1,
EN61326-1 Class B,
EN61326-2-2
Effect of radiation immunity
At the strength of radio-frequency
electromagnetic field of 3V/m
•Insulation resistance measurement
1st effective measuring range:
±(5% of rdg+12dgt)
2nd effective measuring range:
±(10% of rdg+12dgt)
•AC Voltage measurement:
±(5% of rdg+12dgt)
•Conductor resistance measurement:
±(10% of range)
Supplements
IM MY40-S01E
2nd Edition:Feb.2009 (YMI)
