Read and understand all instruction, warning, and danger labels.
Lea el manual de operación anexo sobre ensamblaje e inicio.
3
1
Blade Control Handle
A
A
B
D
Star Knobs
C
B
Starter

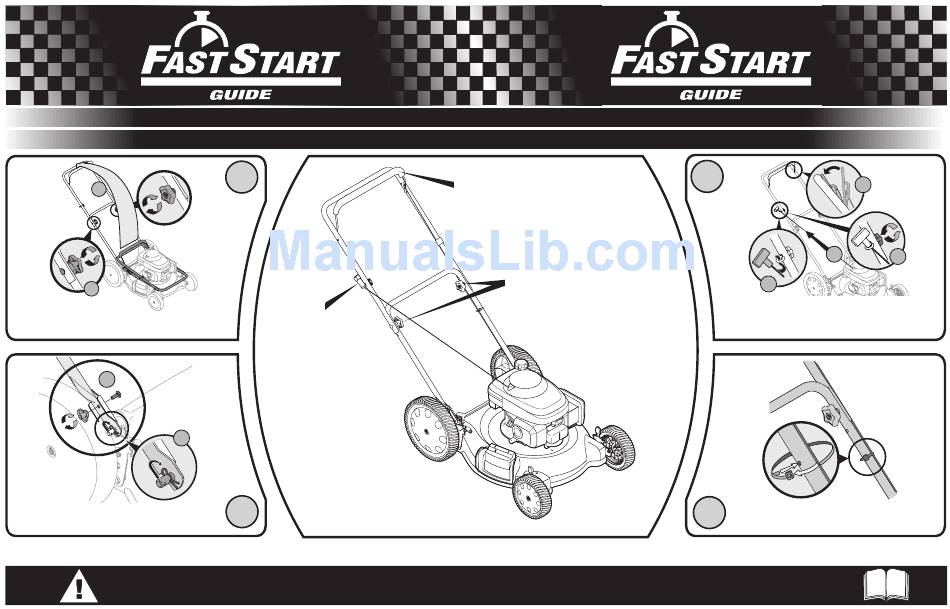

Hold blade control handle against upper handle.
Slowly slip starter rope into rope guide.
Rope
Lift handle to extended position.
Tighten rope guide wing knob.
Tighten star knobs.
B
A
2
4
Secure cable to lower handle with cable tie
Move hairpin clip to inside hole. Insert carriage bolt
provided with unit.
and tighten with wing nut. Repeat on opposite side.
Refer to Operator's Manual for instructions on attaching the grass catcher.
Call 1-888-TO-HELP-U
Need Help?
(1-888-864-3578)
© 2007 11A-542Q711
778-10940C
IMPORTANT: READ OPERATOR'S MANUAL AND ENGINE MANUAL THOROUGHLY AND
FOLLOW THE SAFE OPERATION PRACTICES BEFORE OPERATING .
