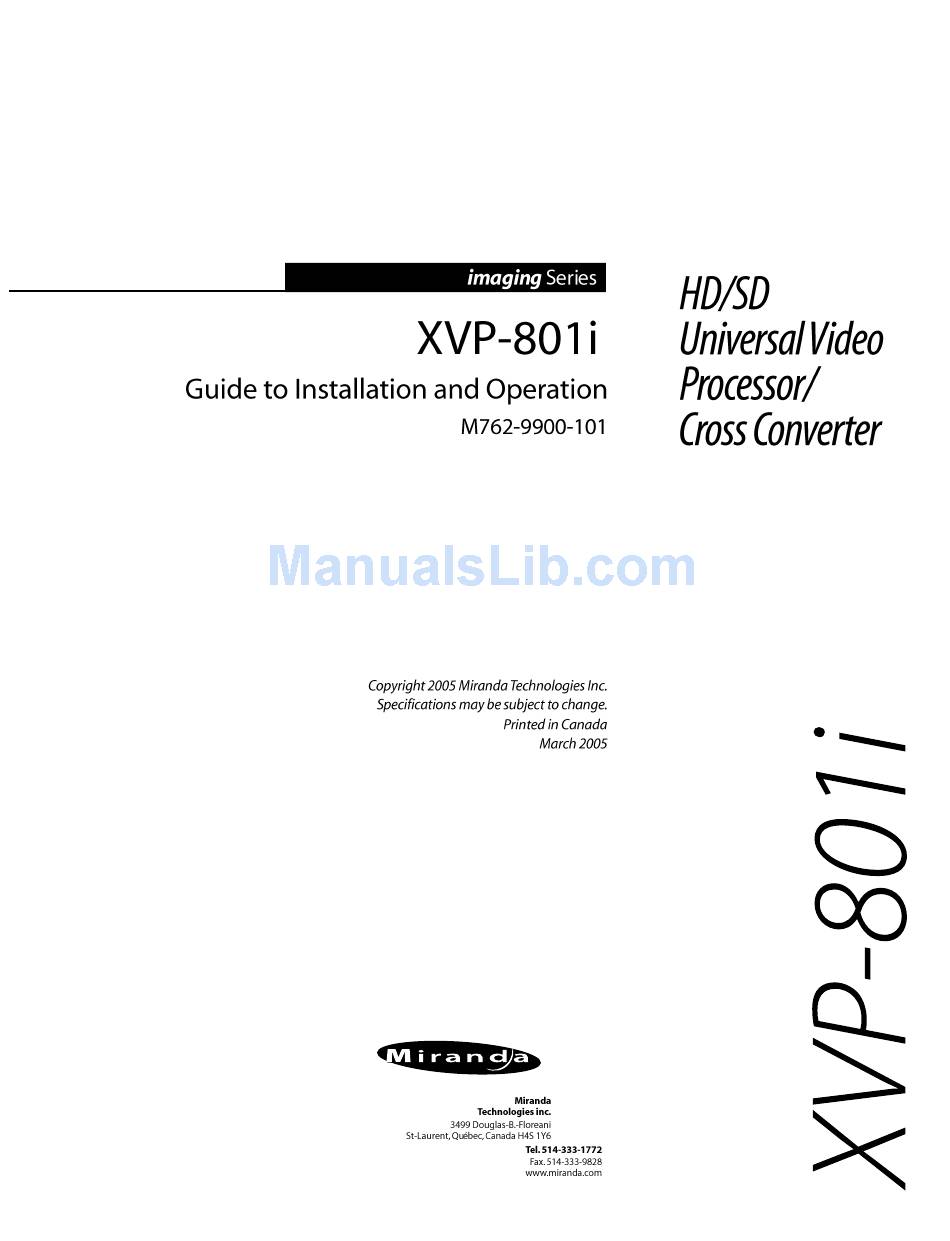

Miranda XVP-801i Installation And Operation Manual

Imaging series. hd/sd universal video processor/cross converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XVP-801i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Miranda XVP-801i

Summary of Contents for Miranda XVP-801i

  • Page 2 EN 61000-3-2 & -3-3, Disturbance in Supply Systems EN 61000-4-2, -3, -4, -5, -6, -8 & -11 Electromagnetic Immunity How to contact us: For technical assistance, please contact the Miranda Technical support centre nearest you: Europe, Middle East, Americas Asia...

  • Page 3: Table Of Contents

    XVP-801i HD/SD Universal Video Processor/Cross Converter ..........1 Introduction ............................1 Features...............................1 Functional Block diagrams ........................2 Installation ..........................4 Unpacking............................4 XVP-801i HD/SD Universal Video Processor/Cross Converter Installation ........4 2.2.1 imaging Symphonie or Quartet 2 Frame ................4 Rear Panel Label ..........................5 XVP-801i Electrical Installation......................6 Operation ..........................8 iControl Interface ..........................8...
  • Page 4 GUIDE TO INSTALLATION AND OPERATION XVP-801i...

  • Page 5: Xvp-801I Hd/Sd Universal Video Processor/Cross Converter

    The XVP-801i is a highly integrated module designed to synchronize, convert and process HD and SD signals into HD/SD hybrid plants. The XVP-801i can accept either SD or HD inputs and will provide SD and HD outputs simultaneously. Each output path provides the format, color space and aspect ratio conversion necessary to maintain a constant signal format at each of the two outputs.

  • Page 6: Functional Block Diagrams

    GUIDE TO INSTALLATION AND OPERATION Functional Block diagrams The following block diagrams show the XVP-801i and the three available submodels. Figure 1.1 Functional block diagram XVP-801i Figure 1.2 Functional block diagram XVP-801i – UC 2 | XVP-801i...
  • Page 7 GUIDE TO INSTALLATION AND OPERATION Figure 1.3 Functional block diagram XVP-801i – FSDC Figure 1.4 Functional block diagram XVP-801i - XCDC XVP-801i | 3...

  • Page 8: Installation

    ABUS cable supplied with the DAP-781i card must be used to connect the two modules. When using a Quartet 2 housing frame, only one DAP-781i card may be used. The XVP-801i must be installed in the top slot and the DAP-781i in the lower slot (figure 2.1 below) in either side of the frame.

  • Page 9: Rear Panel Label

    Figure 2.2 Installing the XVP-801i and DAP-781i in a Symphonie housing frame 2.3 Rear Panel Label A rear connector label has been shipped with the XVP-801i. A label is to be installed on the frame’s rear panel in order to identify the module's external connectors.

  • Page 10: Xvp-801I Electrical Installation

    Note that there are two references available to the XVP-801i card: • LOCAL - The reference connected to the card’s rear module •...
  • Page 11 SD SDI OUT – serial digital video outputs The XVP-801i provides two SD SDI video outputs on BNC connectors, labeled SD SDI OUT 1 and 2. The SDI video signal conforms to the SMPTE 259M-C standard. These serial digital outputs have embedded EDH, but CRC errors detected in the HD input stream are not inserted in the output SD stream.

  • Page 12: Operation

    As the graphical interface is the most intuitive and easy-to-use method, it will be used as the basis for describing the functionality of the XVP-801i. A full description of how to use the card edge controls and the RCP-100 to access the menus is given in sections 3.2 and 3.3.
  • Page 13 3. The lower section of the window contains a pull-down menu and 2 buttons to quickly access user groups. 4. The main panel contains all the parameters specific to the group selected. It may contain several tabs to help manage the different parameters. Figure 3.1 XVP-801i iControl graphic interface window: Input Group XVP-801i | 9...
  • Page 14 HD 50 Hz Blanking Line 23 blanked, image slightly downscaled. Active Line 23 has video and may be resized. SD 50 Hz Blanking Input line 23 copied to output. Active Line 23 has video and may be resized. 10 | XVP-801i...
  • Page 15 Freeze mode: This is a pull-down menu with three options – OFF, FIELD and BLACK. It determines the mode in which the XVP-801i responds to an input error which can cause a loss of valid output. Note that to use freeze mode capabilities a reference must be present. In that way, when freeze mode is activated (FIELD or BLACK mode), the output will be glitchless in the event of a video input switch (“hotswitch”...
  • Page 16 The ARC processing in the XVP-801i allows a wide range of symmetrical and asymmetrical picture size modification, coupled with cropping and background addition, to be applied to an input signal.
  • Page 17 The Input Screen The Input preview screen shows the portion of the input image which will be presented at the XVP-801i output. It has a pull-down Aspect menu at the top left corner through which the user should set the aspect ratio of the input signal.
  • Page 18 The input screen also shows how much of the input signal will appear at the output after the ARC processing in the XVP-801i. It does so by masking out unused parts of the screen with a black frame. The Output Screen The output screen shows the final result of the ARC processing.
  • Page 19 Presets sub-section Presets Several of the most common conversion situations are pre-programmed into the XVP-801i, and can be quickly accessed. They are illustrated in tables 3.1 and 3.2 on the following pages. Presets changes according to the input’s aspect ratio, and gives different results depending on the output aspect ratio.
  • Page 20 GUIDE TO INSTALLATION AND OPERATION Table 3.1 Available Presets for 16:9 Output 16 | XVP-801i...
  • Page 21 GUIDE TO INSTALLATION AND OPERATION Table 3.2 Available Presets for 4:3 Output XVP-801i | 17...
  • Page 22 Vertical (lines): the total processing delay of the card is 1 frame. With this adjustment, a value ranging from –8 to +7 lines, compared to the reference or the processing delay, may be set. This adjustment can be used in conjunction with the horizontal timing adjustment. 18 | XVP-801i...
  • Page 23 0 (no enhancement) to 7 (maximum enhancement). The default value varies according to the processing mode: 4 for SD to HD mode, 2 for HD to SD mode and 0 for HD to HD mode. XVP-801i | 19...
  • Page 24 (minimum enhancement; i.e. some softening) to +7 (maximum enhancement). Set the value to 0 for no enhancement. The Meta tab The Meta tab provides resources to deal with Metadata incorporated into the incoming signal. Figure 3.7 HD (left) and SD (right) Video Output group – Meta tab 20 | XVP-801i...
  • Page 25 As described in EIA-708-B, closed captioning within an HD signal is embedded in the form of ANC packets. The XVP-801i extracts the NTSC CC bytes from within incoming EIA-708-B DTV closed captions, buffers, and re-inserts the data within line 21 of the output SD signals. Processing is restricted to NTSC CC information only.
  • Page 26 Alternately, if a lack of audio samples is detected, non-PCM audio channels will be muted. Dolby-E audio is supported in the XVP-801i. During frame-sync mode, when input video and reference signals are not synchronized, Dolby-E frames may be skipped or repeated. In addition, non-PCM audio, all level parameters (gain and attenuation) are overridden to prevent any modification of the audio data.
  • Page 27 Figure 3.8 Audio Processing group Fixed Delay sub-tab : although the XVP-801i automatically matches audio and video throughput timing, provision is made for the user to insert an audio delay offset from the nominal value, in order to deal with problems such as lip sync errors and audio phase alignment in the incoming feed.
  • Page 28 This group provides additional audio processing for the 16 audio channels embedded in the HD/SD outputs: audio channels mixing and audio embedding mode. The XVP-801i may be paired with up to two DAP-781i 8 Channel Audio Processors for additional audio channel inputs to the mixers and for discrete AES outputs.
  • Page 29 (E1 or E2) to be used as the source for this channel. Audio Bus is configured in the ABUS group. Channel: Channel 1, …, Channel 8 (for A1, A2 and E1, E2), …, Channel 16 (for V): selects the channel to be used from the selected audio source. XVP-801i | 25...
  • Page 30 When companion audio cards such as the DAP-781i are used to provide additional audio channels, the ABUS audio bus links installed audio cards and the XVP-801i. This panel, called ABUS group, is used to instruct the XVP-801i about the presence of installed audio cards and the system configuration.
  • Page 31 Video / A1 or Video / A1 / A2 adds the audio channels incoming from the installed audio cards detected. Figure 3.13 ABUS group The De-Interlacer group The De-Interlacer group provides access to four different processing functions of the XVP-801i, grouped into two subsections. Film Processing Sub-section 3:2 Detection: this is a pull-down menu with two options –...
  • Page 32 Forced 2:2 Mode: this is a pull-down menu with two options – ON and OFF ON – This forces the XVP-801i into the film processing mode, disabling the de-interlacing process as described under 3:2 Detection above. Film (which is really 24p) is transferred to video in 50 Hz systems by running the film 4% faster, making the frame rate 25Hz, which permits 2:2 pulldown –...
  • Page 33 16 Channel Internal Audio Processing option (XVP-801-OPT-AUD16) • the XVP-801i Full Upgrade option (XVP-801-FULL-OPT). For SD signals, we strongly recommend using the DNR-111i that provides a more effective 3D adaptive noise reduction and several other sophisticated image enhancement filters.
  • Page 34 XVP Upgrade option: This option can be used to upgrade an XVP-801 - UC, - FSDC, or – XCDC model to a full XVP-801i. The Factory group Load Factory: Clicking this button will reinstate all default parameter values. See the XVP-801i Menu in section 3.4 to see default values for all parameters.

  • Page 35: Remote Control Using The Rcp-100

    Please refer to the RCP-100 Guide to Installation and Operation for detailed instructions on installing and operating the RCP-100, and for instructions on how to connect the RCP-100 to the XVP-801i (or any other supported card) so that the menu can be accessed.

  • Page 36: Xvp-801I Menu

    AUDIO IN DETECTED Indicates which audio groups are present in the SDI input (green) TEST Test signal selected at the output (yellow) Alphanumeric display Displays the input format in normal mode 3.4 XVP-801i Menu Menu level LEV1 LEV2 LEV3...
  • Page 37 = PIXL HD advanced parameters MPEG [OFF, ON] [0,1,…,15] HD metadata parameters META [OFF, AUTO] [OFF, AUTO] [OFF, AUTO, N /A] N/A only in 50 Hz [OFF, AUTO] HD timings TIMG FRAM [0,…,3] VERT [-8,…,0…,7] unit=LINE XVP-801i | 33...
  • Page 38 [OFF, ON] Adv De-Interlacer [DINT, BYPS] Adv noise Reduction [0, 1,…,15] Freeze Mode FRZE [OFF,FLD,BLAK] Factory default restore FACT [NO,YES] Note: Some menu items may not be present depending on card model, input format, or card configuration. 34 | XVP-801i...

  • Page 39: Specifications

    48 KHz, synchronous NUMBER OF CHANNELS: 16, 8 pairs, 4 Groups DELAY TRACKING: Miranda video-audio tracking signal OTHER TEST PATTERN GENERATOR: Color bars 100% white with 100% bars TEST TONE GENERATOR: -18 dBFs, 24 bit, 1KHz continuous tone on right channel with pulsed tone on left channel in every pair.
