B&B Electronics U-linx USR602 Quick Start Manual

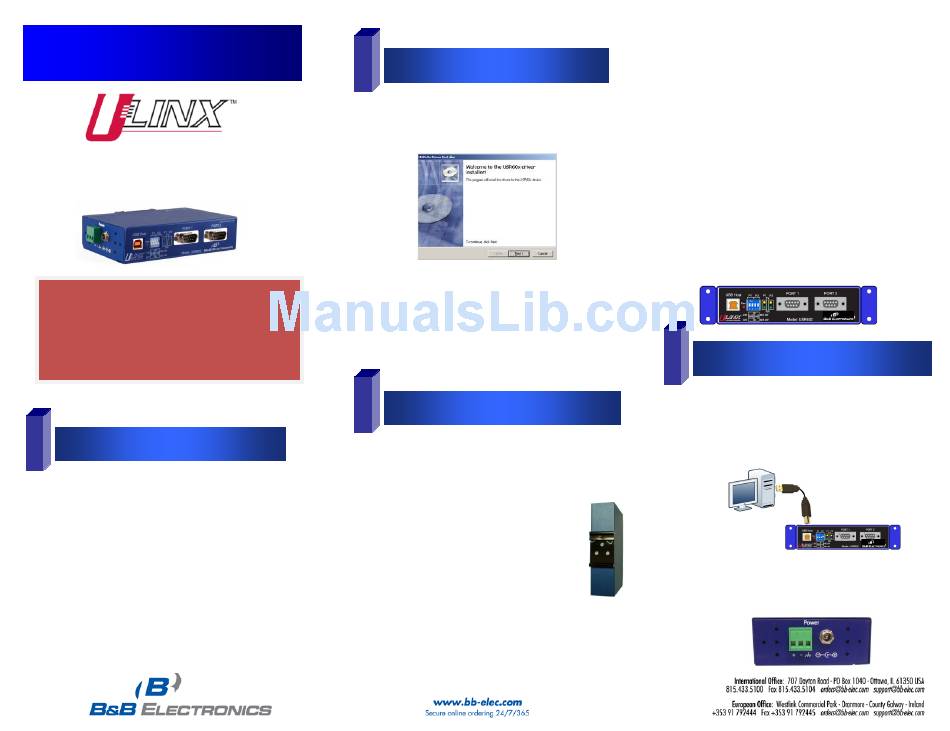

Quick Start Guide
Industrial 2 & 4 Port USB to Serial
Converters
Models USR602 & USR604
DRIVER SOFTWARE SHOULD BE
INSTALLED BEFORE THE CONVERTER IS
CONNECTED TO YOUR USB PORT.
PLEASE READ THESE INSTRUCTIONS
BEFORE PROCEEDING.
1
Check Included Items
1. Unpack the USB to serial converter from the shipping
container. Verify that all included items are present.

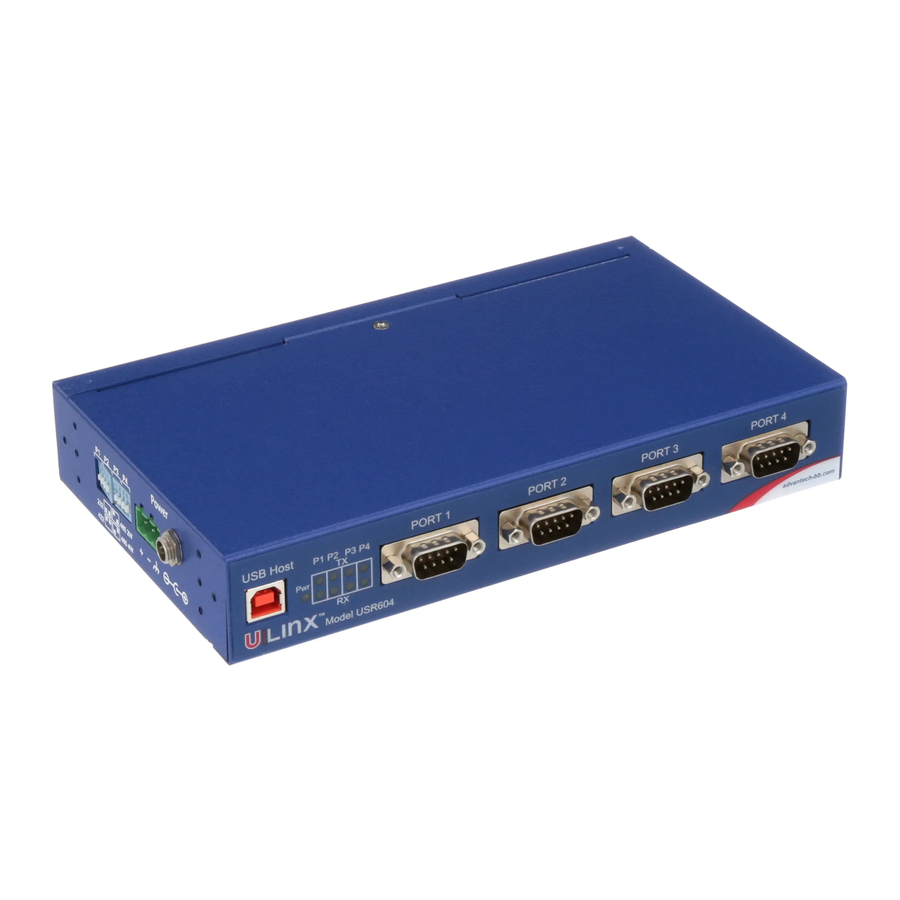

2 or 4 port industrial USB to serial converter
•
• Two meter USB cable
Panel mount adapters
•
DIN rail mount adapter
•
Driver CD
•
This quick start guide
•
2
Install the Driver Software
2. The driver software in contained on the CD that is
packaged with your converter.
a. Put the driver CD into the PC. The setup
program should automatically launch.
b. Click Next. Accept the license agreement
and click Next again.
c. The program will install the drivers and
screen will be displayed indicating
successful installation
d. When you connect the converter to your
PC for the first time, each COM port will
be configured. This could take up to 30
seconds for each COM port.
3
Mount the Converter
3. Mount the product using the included DIN clip or
included Panel Mount adapter kit.
DIN Rail Mounting
4. To install locate the included DIN rail
mount kit which includes the bracket and
3 installation screws.
Note: The DIN rail mounting bracket
can only be installed on the back side
of the converter.
5. Find the 3 mounting holes located on the
back side of the hub and install the
mounting bracket with the flat surface
facing the back of the hub with the
included mounting screws.
6. The product is now ready to be mounted
on a piece of DIN rail.
Document Number 8940R003-USR60x-0812qsg
Panel Mounting
7. To install locate the included panel mount kit which
includes two bracket pieces and 4 installation
screws (2 screws per bracket).
Note: The Panel Mount Brackets can be mounted
to either side of the USR60x device and allows
mounting Up, Down, Forward and Back.
8. Using the 4 screws (2 per bracket) attach the
brackets to the device. The shorter side of the
bracket in which the holes are close together is the
side that will mount to the device. The bracket when
installed correctly will form an L shape with the side
of the enclosure.
9. Once the brackets are installed the product is ready
to be mounted.
4
Connect Power
10. Using the included USB cable, connect one end of
the cable to the Host PC. Plug the other end of the
cable into the USR60x device via the port marked
USB Host. If this is the first installation on this
computer, the COM ports will be assigned (Step
2.d.).
11. For the USR604, add 10 to 48 VDC power via the
terminal block or barrel jack. (For redundancy power
can be applied to both.)
