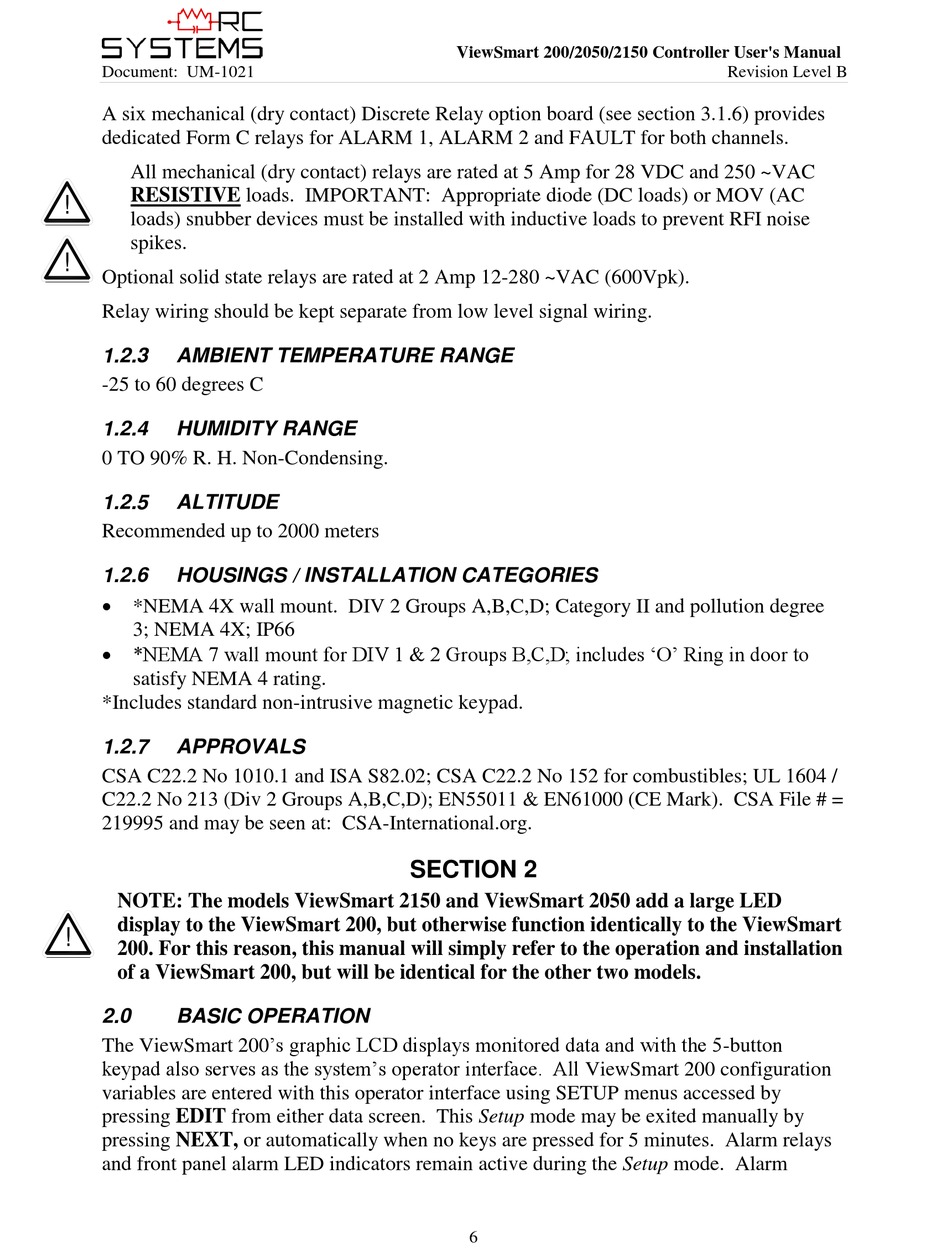

Document: UM-1021
A six mechanical (dry contact) Discrete Relay option board (see section 3.1.6) provides
dedicated Form C relays for ALARM 1, ALARM 2 and FAULT for both channels.
All mechanical (dry contact) relays are rated at 5 Amp for 28 VDC and 250 ~VAC
RESISTIVE loads. IMPORTANT: Appropriate diode (DC loads) or MOV (AC
!
loads) snubber devices must be installed with inductive loads to prevent RFI noise
spikes.
!
Optional solid state relays are rated at 2 Amp 12-280 ~VAC (600Vpk).
Relay wiring should be kept separate from low level signal wiring.
1.2.3

AMBIENT TEMPERATURE RANGE

-25 to 60 degrees C
1.2.4

HUMIDITY RANGE

0 TO 90% R. H. Non-Condensing.
1.2.5

ALTITUDE

Recommended up to 2000 meters
1.2.6

HOUSINGS / INSTALLATION CATEGORIES

 *NEMA 4X wall mount. DIV 2 Groups A,B,C,D; Category II and pollution degree
3; NEMA 4X; IP66
 *NEMA 7 wall mount for DIV 1 & 2 Groups B,C,D; includes 'O' Ring in door to
satisfy NEMA 4 rating.
*Includes standard non-intrusive magnetic keypad.
1.2.7

APPROVALS

CSA C22.2 No 1010.1 and ISA S82.02; CSA C22.2 No 152 for combustibles; UL 1604 /
C22.2 No 213 (Div 2 Groups A,B,C,D); EN55011 & EN61000 (CE Mark). CSA File # =
219995 and may be seen at: CSA-International.org.
NOTE: The models ViewSmart 2150 and ViewSmart 2050 add a large LED
display to the ViewSmart 200, but otherwise function identically to the ViewSmart
!
200. For this reason, this manual will simply refer to the operation and installation
of a ViewSmart 200, but will be identical for the other two models.
2.0

BASIC OPERATION

The ViewSmart 200's graphic LCD displays monitored data and with the 5-button
keypad also serves as the system's operator interface. All ViewSmart 200 configuration
variables are entered with this operator interface using SETUP menus accessed by
pressing EDIT from either data screen. This Setup mode may be exited manually by
pressing NEXT, or automatically when no keys are pressed for 5 minutes. Alarm relays
and front panel alarm LED indicators remain active during the Setup mode. Alarm
ViewSmart 200/2050/2150 Controller User's Manual

SECTION 2

6
Revision Level B
